Runs a four-door access point from a single unit.

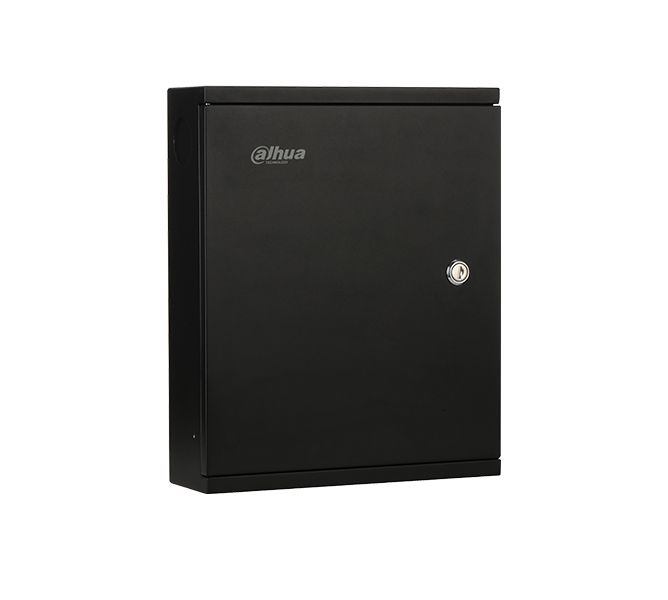

A master access controller that verifies cards, passwords and fingerprints together. It drives the lock, sensor and exit button lines of four doors directly, and links sub controller modules to the same system over the CAN bus.

4 doorsControl capacity

4Reader count

128Time schedules

AC85-AC264Power Supply

-30°C to +60°COperating Temperature

Key features

Capacity20 inputs and 12 relay outputs carry the lock, sensor and alarm lines of four doors, and the CAN bus cascades 16 sub controller modules.

Access controlIt verifies card, password and fingerprint alone or in combination, and applies anti-passback, multi-door interlock and multi-person unlock rules.

AlarmDoor held open, intrusion, duress and tamper conditions are reported as separate events.

Reader connectionReaders connect over Wiegand 26/34 or RS485, and the link to the PC runs through the RJ45 port.

InstallationSurface mounting seats the unit on the wall, and the built-in real time clock handles daylight saving changes.

System

Main Processor

Dual-core ARM Cortex A9

Memory

256 Mb

Input/Output Ports

Input

Inputs x 20 (Lock state x 4, Door sensor x 4, Exit button x 4, Alarm x 8)

Output

Relay x 12 (Door lock x 4, Alarm x 8)

Reader

Reader x 4

Capacity

Card holders

200,000

Events

150,000

Function

Control Mode

Four door one-way

Access control

Anti-pass back, Multi-interlock, Multi-card unlock

User Management

General, VIP, Guest, Patrol, Black list, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Period

Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period

Interface

To PC

RJ45 (10/100M)

To Reader

Wiegand 26/34, RS485

Network

Network Function

TCP/IP, UDP, HTTP, HTTPS, DDNS, Register, P2P, NTP, DST

Max. User Access

1~999 adjustable

General

RTC

Yes

Power Supply

AC85-AC264, 50/60Hz

Operating Temperature

-30°C to +60°C

Working Humidity

≤95%

Dimension (W×D×H)

270 mm × 90 mm × 330 mm

Weight

2 kg

Working Environment

Indoor

Certificates

Yes
