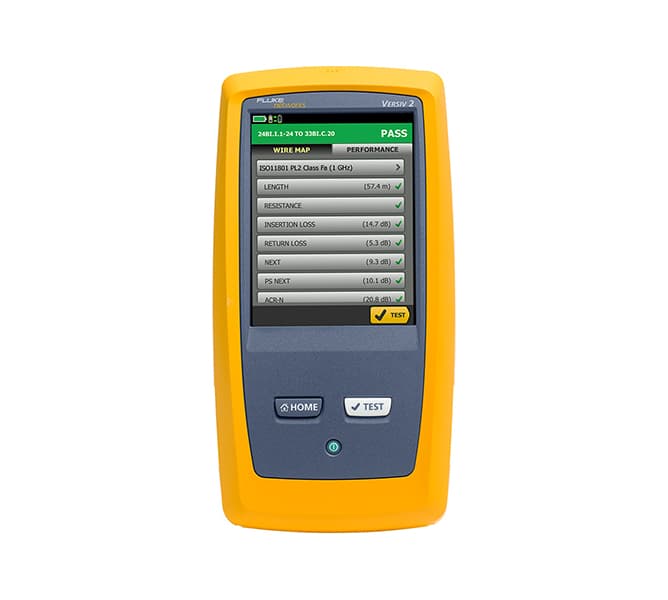

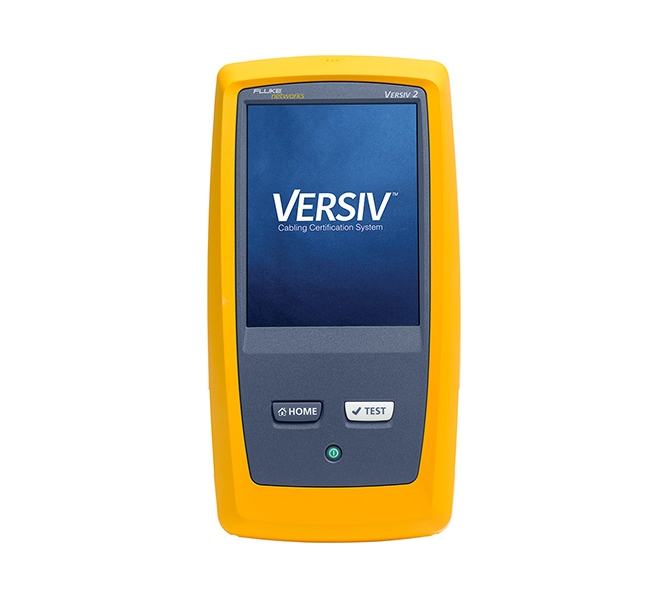

Stock Code: DSX CableAnalyzer™
| Cable Types | |
|---|---|
| Shielded and unshielded pair LAN cabling | TIA Category 3, 4, 5, 5e, 6, 6A, 8: 100 Ω; ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 Ω and 120 Ω |
| Standard Link Interface Adapters | |
| Permanent link adapters | Plug type: shielded RJ45 Optional Plug type: ARJ45/GG45 |
| Channel adapters | Jack type: shielded RJ45 Optional Jack type: Tera, GG45/ARJ45 |
| Test Standards | |
| TIA | Category 3, 4, 5, 5e, 6, 6A, 8 per ANSI/TIA-568.2-D |
| ISO/IEC | Class C and D, E, EA, F, FA and I/II certification per ISO/IEC |
| Maximum frequency | DSX-8000: 2000 MHz; DSX-5000: 1000 MHz |
| General Specifications | |
| Speed of Autotest | DSX-8000: Full 2-way Autotest of Category 5e or 6/Class D or E: 7 seconds. Full 2-way Autotest of Category 6A/Class EA: 8 seconds. Full 2-way Autotest of Category 8: 16 seconds DSX-5000: Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds. Full 2-way Autotest of Category 6A/Class EA: 10 seconds |
| Supported test parameters (The selected test standard determines the test parameters and the frequency range of the tests) | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Pair-to-Pair Resistance Unbalance, Pair Resistance Unbalance, Insertion Loss (Attenuation), Return Loss (RL), Common Mode Return Loss (CMRL), Near End Crosstalk (NEXT), Far End Crosstalk (FEXT), Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien NEXT (PS ANEXT), Power Sum Alien Attenuation NEXT Ratio Far End (PS AACR-F), Common Mode to Differential Mode NEXT (CDNEXT), Transverse Conversion Loss (TCL), Equal Level Transverse Conversion Transfer Loss (ELTCTL) |
| Input protection | Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage |
| Display | 5.7 in LCD display with a projected capacitance touchscreen |
| Case | High impact plastic with shock absorbing overmold |
| Dimensions | Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Weight | Main Versiv unit with DSX module and battery installed: 3 lbs, 5 oz (1.28 kg) |
| Main unit and remote | Lithium ion battery pack, 7.2 V |
| Typical battery life | 8 hours |
| Charge time | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity. |
| Languages supported | English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian |
| Calibration | Service center calibration period is 1 year |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Environmental Specifications | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -14°F to +140°F (-10°C to +60°C) |
| Operating relative humidity | 0 % to 90 %, 32°F to 95°F (0°C to 35°C) 0 % to 70 %, 95°F to 113°F (35°C to 45°C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test with and without module and adapter |
| Safety | CSA 22.2 No. 61010, IEC 61010-1 3rd Edition |
| Operating altitude | 13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter |
| EMC | EN 61326-1 |
| Performance Specifications | |
| DSX-8000 | Category 8 test modes (or lower link categories); Class I/II test modes — ANSI/TIA-1152 Level 2G; Proposed standard IEC 61935-1 Ed. 5 Level VI |
| DSX-5000 | Category 6A/Class EA test modes (or lower link categories); Class FA test modes — Exceed Level IIIe requirements of TIA 1152 and Level IV of IEC 61935-1. Exceed Level V requirements as in the draft 4th edition of IEC 61935-1. |
| Length of Twisted Pair Cabling | |
| Range (DSX-8000 / DSX-5000) | 4000 ns / 750 ns |
| Resolution (DSX-8000 / DSX-5000) | 1 ns / 1 ns |
| Accuracy (DSX-8000) | ± (2 ns + 2 %); 0 ns to 750 ns ± (2 ns + 4 %); 750 ns to 4000 ns |
| Accuracy (DSX-5000) | ± (2 ns + 2 %) |
| Delay Skew | |
| Range | 0 ns to 100 ns |
| Resolution | 1 ns |
| Accuracy | ± 10 ns |
| DC Loop Resistance Test | |
| Range | 0 Ω to 540 Ω |
| Resolution | 0.1 Ω |
| Accuracy | ± (1 Ω + 1 %) |
| Overload recovery time | Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage. |
