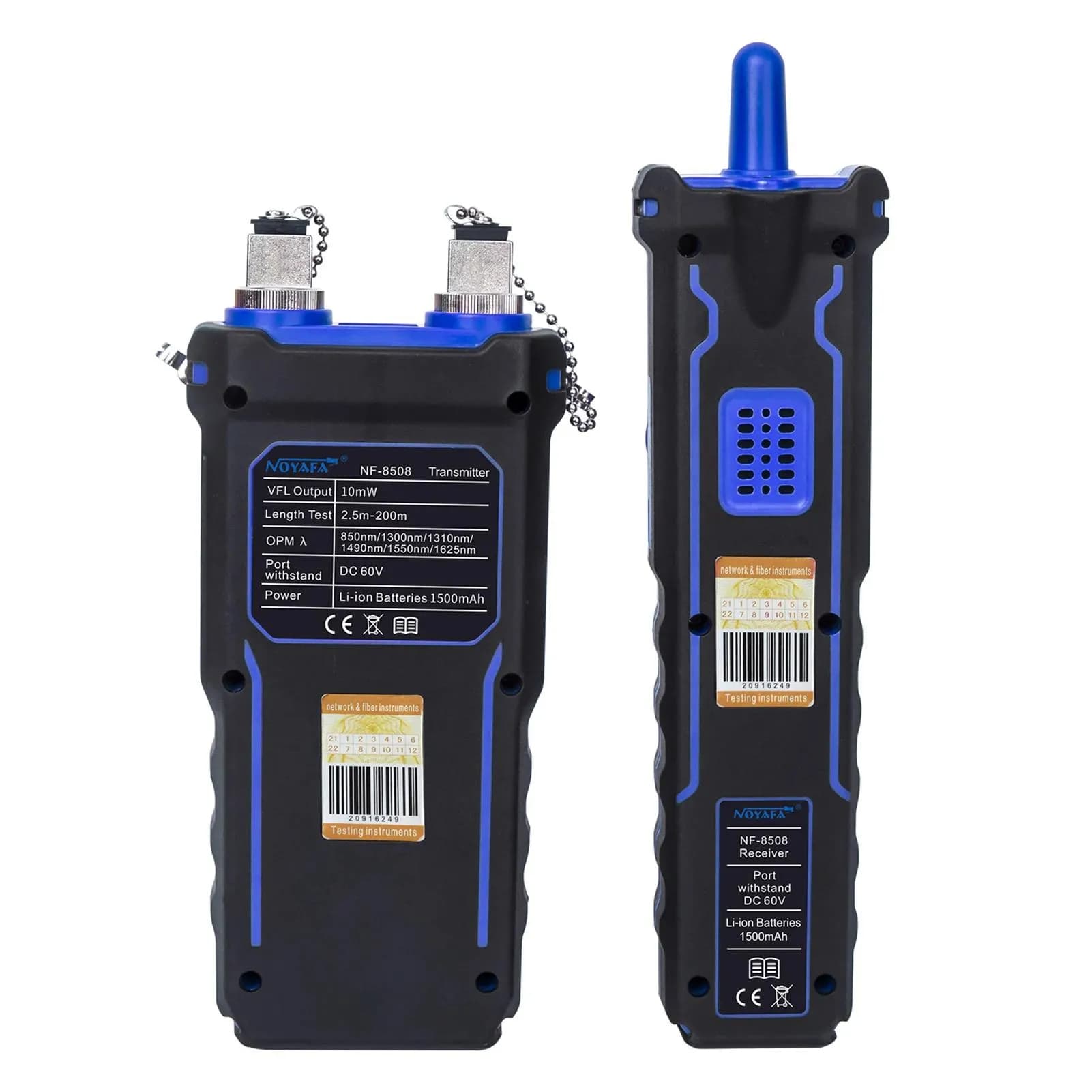

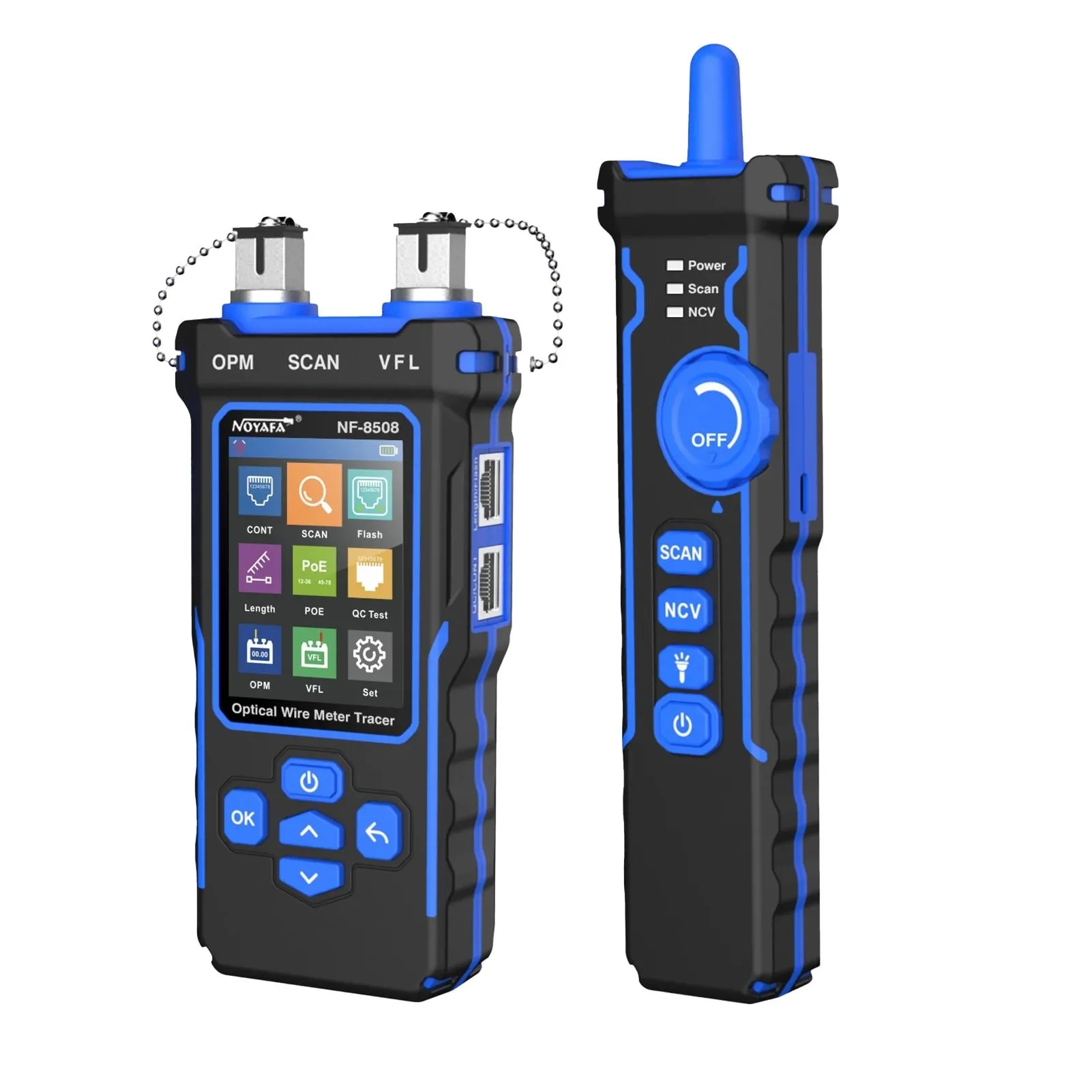

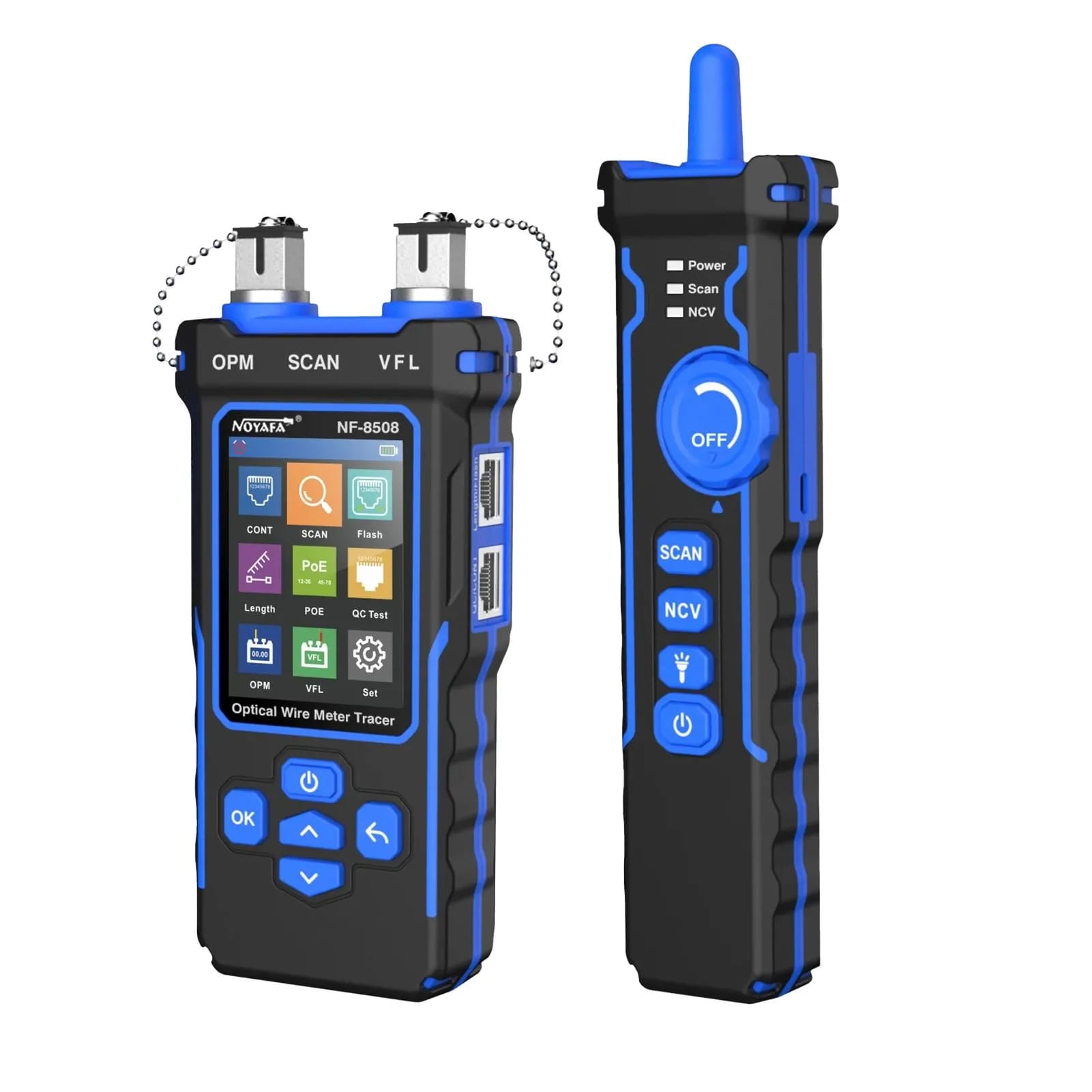

Stock Code: NF-8508
| NF-8508 | |
|---|---|
| Model | NF-8508 |
| Cable Test Types | CAT5/CAT6 |
| Voltage Protection | 60V |
| Transmitter | |
| Short / Pass Test | ✓ |
| Wiremap Function | ✓ |
| Compatible Connectors | RJ45 / SC |
| Visual Fault Locator (VFL) | ✓ |
| PoE Test | ✓ |
| Length Measurement | ✓ |
| Two Scan Modes Selectable | AC filter & Non AC filter |

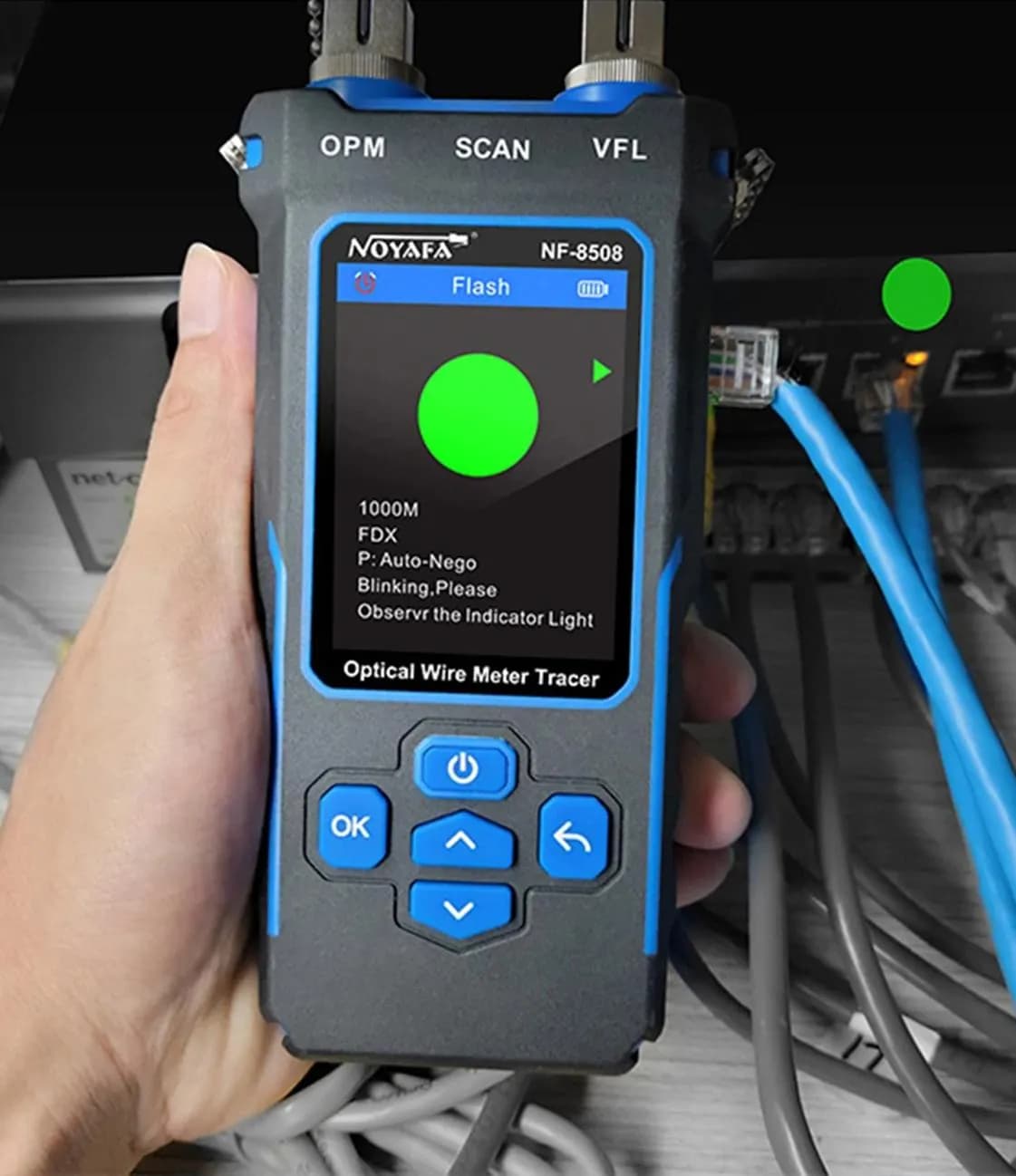

| Port Flash | ✓ |
| QC for Crystal Head (RJ45) | ✓ |

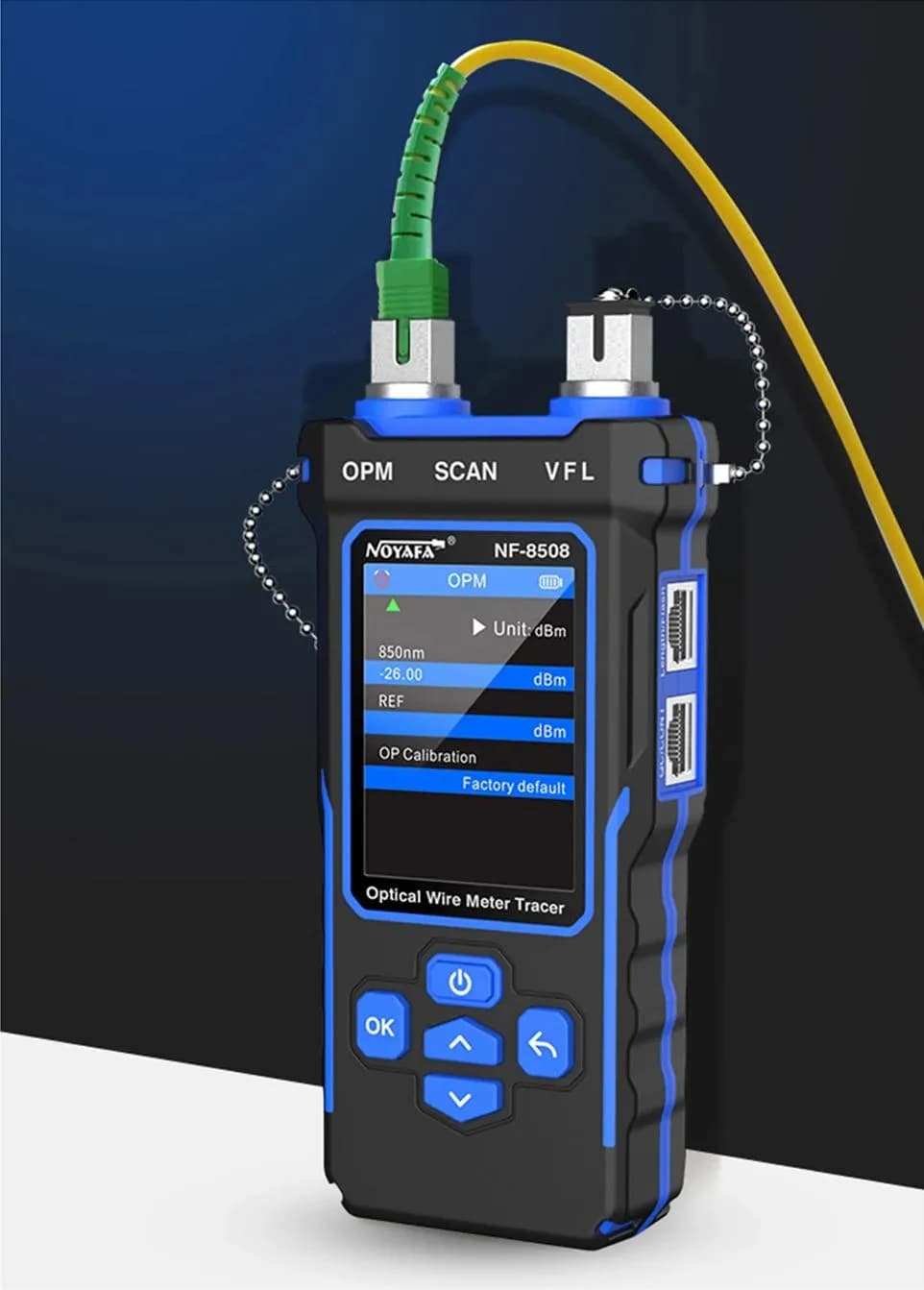

| Optical Power Meter (OPM) | ✓ |
| Low Voltage Indicate | ✓ |
| Auto Power Off | ✓ |
| Dimension (L x W x D) | 148 x 70 x 32mm |

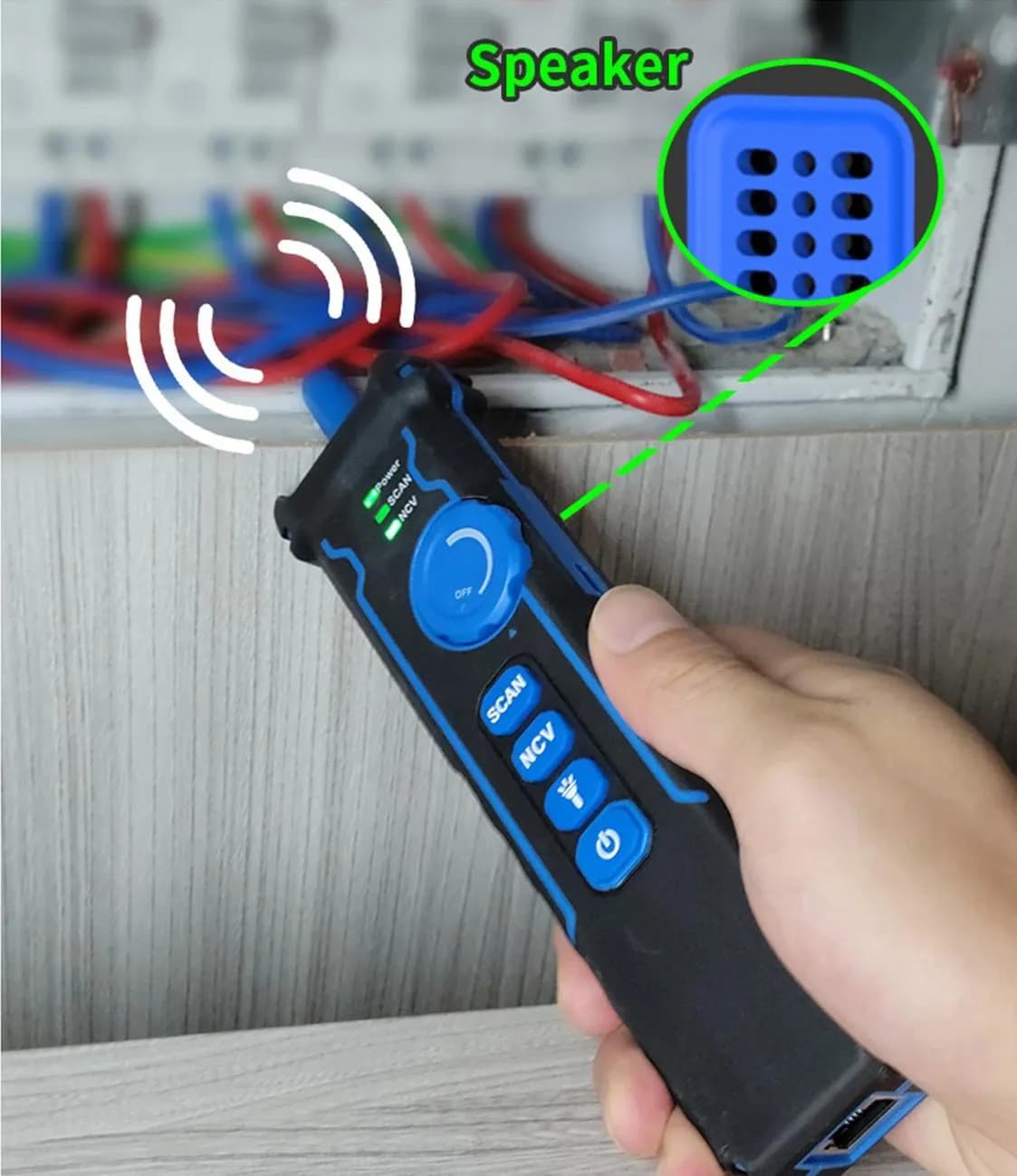

| Receiver | |
| Sensitivity Adjustment | ✓ |
| Wire Map By Receiver | ✓ |
| Working Current | <300mA |
| NCV (Non-Contact Voltage) | ✓ |
| Led Lights Display | ✓ |
| Low Voltage Warning | ✓ |
| Auto Power Off | ✓ |
| Battery Type | 3.7V lithium battery |
| Dimension | 198 x 50 x 28mm |
