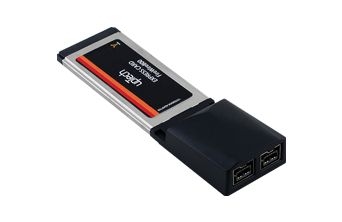

Adds a FireWire 800 link from an ExpressCard slot

A high-performance serial bus card fully compliant with IEEE 1394b-2002, IEEE 1394a-2000 and IEEE 1394-1995. Its two ports move data at 800 Mbit/s and 400 Mbit/s.

ExpressCardSystem Interface

2Port Count

FireWire 800Link Type

800 / 400 Mbit/sData Transfer Rate

OHCI 1.2Controller Compliance

Key features

Data rateMoves data at 800 Mbit/s and 400 Mbit/s.

Standards complianceMeets IEEE 1394b-2002, IEEE 1394a-2000 and IEEE 1394-1995.

ControllerComplies with the OHCI 1.2 draft specification for 1394b-2002 PHY.

Backward compatibilityAlso runs at the earlier IEEE 1394a-2000 speeds.

Resource managementHandles cycle master and isochronous resource management.

Specifications

Product Type

ExpressCard – FireWire 800 adapter card

Standards Compliance

High-performance serial bus; fully compliant with IEEE 1394b-2002, IEEE 1394a-2000 and IEEE 1394-1995

Controller Compliance

Fully compliant with the OHCI 1.2 draft specification for 1394b-2002 PHY

Data Transfer Rate

800 Mbit/s and 400 Mbit/s

Backward Compatibility

Compatible with the earlier IEEE 1394a-2000 speeds

Resource Management

Cycle master and isochronous resource management
