    Noyafa

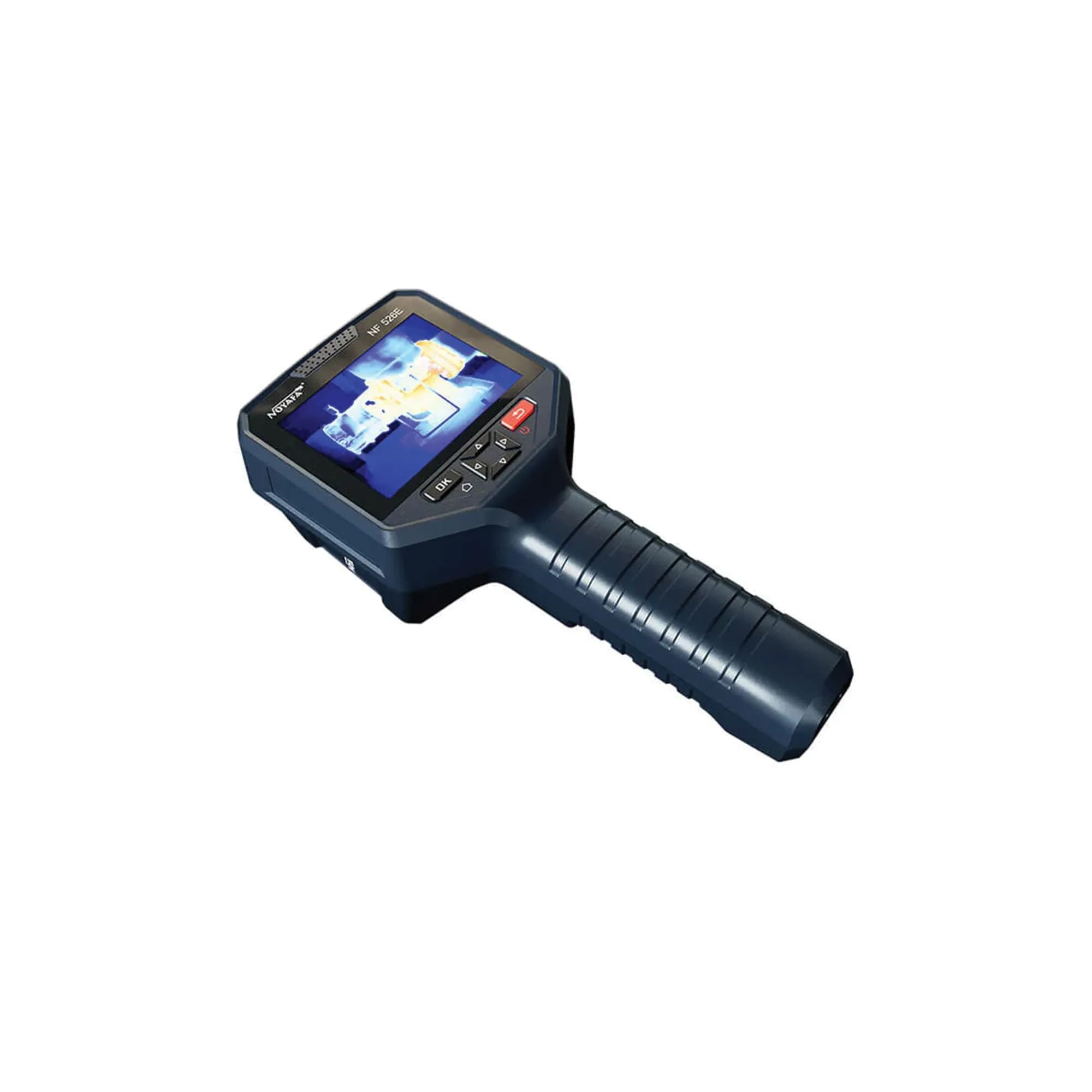

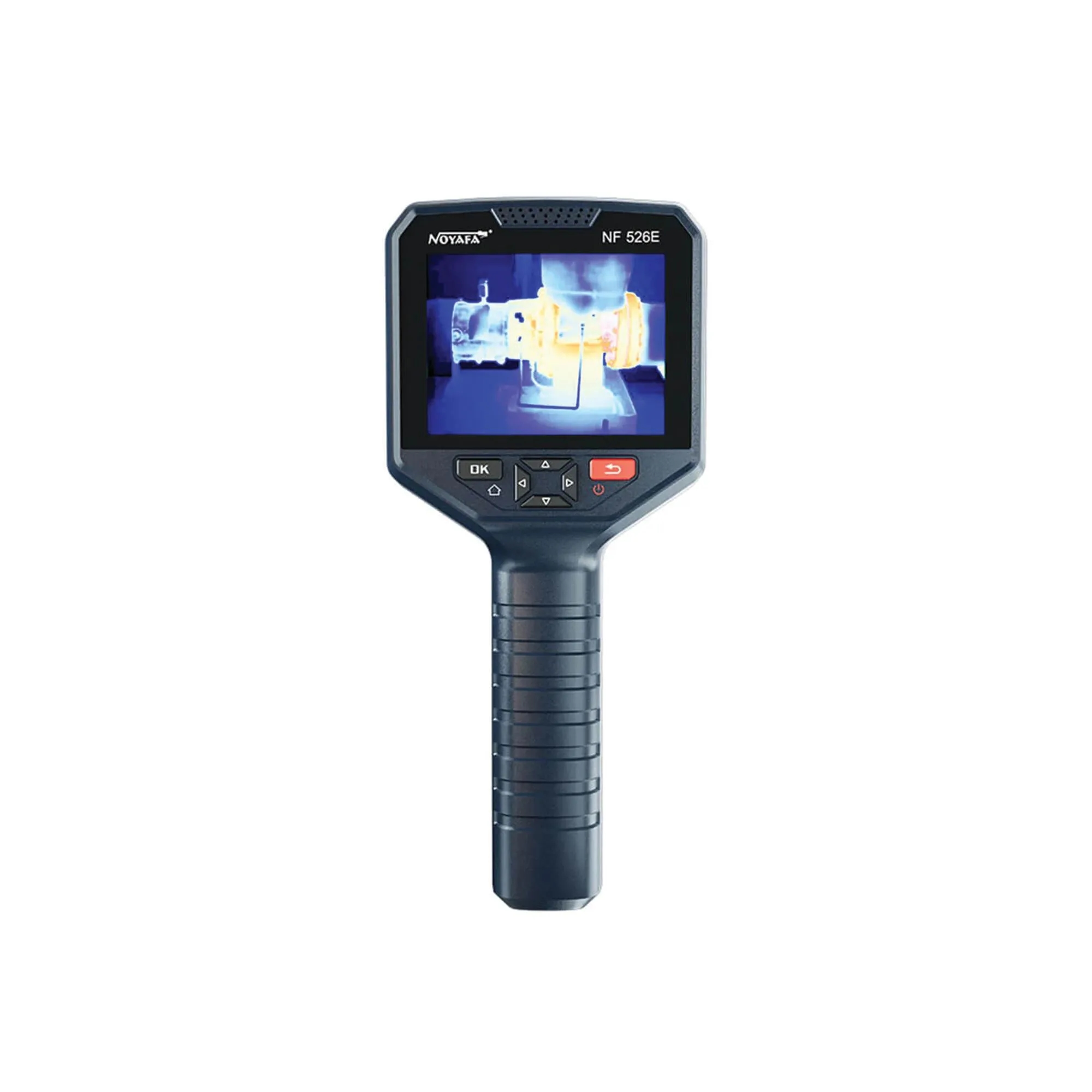

    Handheld Thermal Imager with 256*192 High-Definition

    Stock Code: NF-526E

    Featuring a wide detection range and precise measurement capabilities, this handheld thermal camera covers a broad temperature range from -20℃ to 400℃ (-4℉ to 752℉). With an accuracy of ±2℃ or ±2%, the device offers HD infrared vision and a resolution of 256x192, ensuring clear and detailed images.

    Instant temperature measurement and display allow for quick analysis, and with 8 different color palettes, you can clearly visualize temperature maps. The wide field of view (83°x55°) and optimal infrared spectral bandwidth (8~14μm) enable detailed inspection in any environment.

    This device provides flexible data output, recording videos (mp4) and photos (jpg), with local storage (8GB memory card) and USB Type-C connection for direct data transfer to a PC. The 3.5-inch screen makes it easy to view your images, and you can switch between various image modes such as Overlay fusion, Outline fusion, Picture-in-Picture, Thermal, and Visible.

    With multilingual support (English, French, German, Spanish, Dutch, Japanese, Korean, Arabic, Chinese - Simplified and Traditional), this thermal camera offers a user-friendly interface. The 2600mAh lithium battery provides up to 4 hours of continuous use.

    Applications:

    • Electrical and Mechanical Inspections: Detect overheating components in electrical panels, motors, generators, and other mechanical systems to prevent potential failures.
    • Building and Construction Inspections: Evaluate the thermal insulation performance of buildings, detect water leaks, and enhance energy efficiency.
    • Fire Safety: Provide early warning by detecting temperature increases before a fire and help locate hot spots in post-fire debris.
    • Medical and Veterinary Use: Identify surface temperature differences to help diagnose inflammation or infection.
    • Automotive Maintenance: Monitor temperature variations in engines and exhaust systems to identify performance issues and faults.
    • Research and Development: Track temperature changes in various experiments and prototypes to conduct analysis and improve efficiency.

    Features:

    • Resolution: 256 x 192
    • Infrared Spectral Bandwidth: 8~14μm
    • Frame Rate: 25HZ
    • NETD: 70mk@25℃
    • Field of View: 83°x55°
    • Temperature Measurement Range: -20℃ ~ 400℃
    • Measurement Accuracy: ±2℃ or ±2%
    • Color Palettes: Iron Red, Rainbow, Red hot, Black hot, White hot, High contrast, Green hot, Lava pattern
    • Visible Resolution: 720P
    • Port: USB Type-C
    • Storage: 8GB Built-in Memory
    • Image Format: JPG
    • Video Format: MP4
    • Working Time: 4 Hours
    • Operating Temperature: -10℃ ~ +60℃
    • Product Size: 222 * 97 * 90 mm
    • Product Weight: 333g

    Package Contents:

    • Thermal Camera
    • USB Type-C Cable
    • User Manual

    Enhance your work efficiency with reliability and ease of use. Quickly and accurately detect temperature differences in any environment with this handheld thermal camera.
