Connects cabinet devices to the network without configuration.

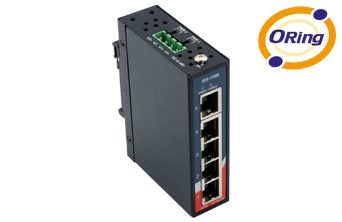

An unmanaged industrial Ethernet switch in a mini-size body. Its 5 10/100Base-T(X) ports in RJ45 gather field devices onto one network. The IP-30 housing mounts on DIN-Rail or a panel, and its 26.1 mm width fits narrow cabinets.
Port layoutCarries 5 10/100Base-T(X) ports in RJ45; auto MDI/MDI-X tells straight and crossover cable apart.
SwitchingRuns a store-and-forward architecture with 7 µs switching latency and a MAC table of 1K addresses.
Flow controlSupports IEEE 802.3x flow control and buffers 448 Kbit of packet data.
Power inputAccepts dual 12~48 VDC and 24 VAC on a 4-pin terminal block, with overload and reverse polarity protection.
Mounting and approvalsThe IP-30 housing fits DIN-Rail and panel mounting and meets EN 62368-1 and UL 61010-1 safety standards.
