Measures the fiber link and runs copper cable and network tests from the same unit.

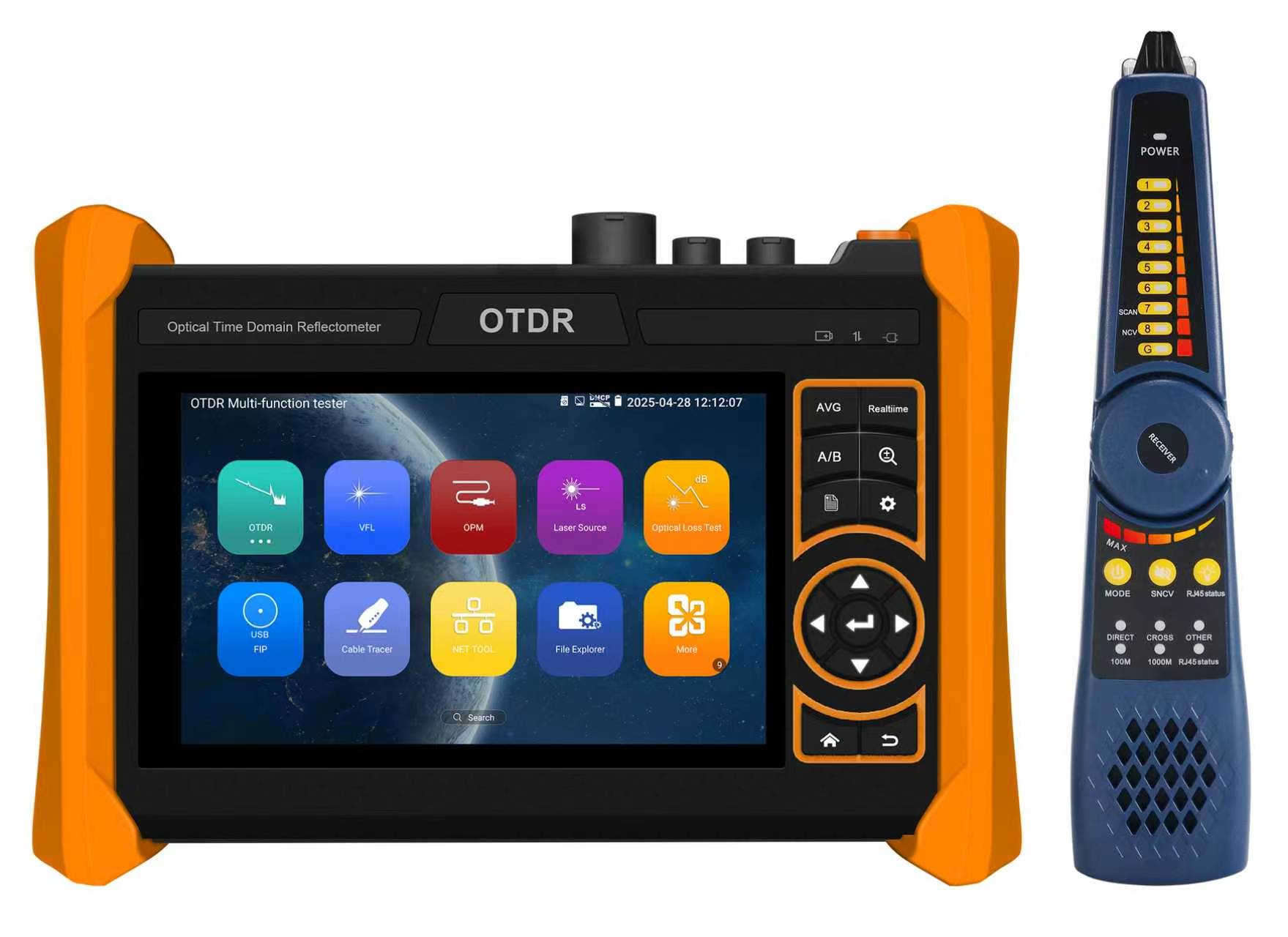

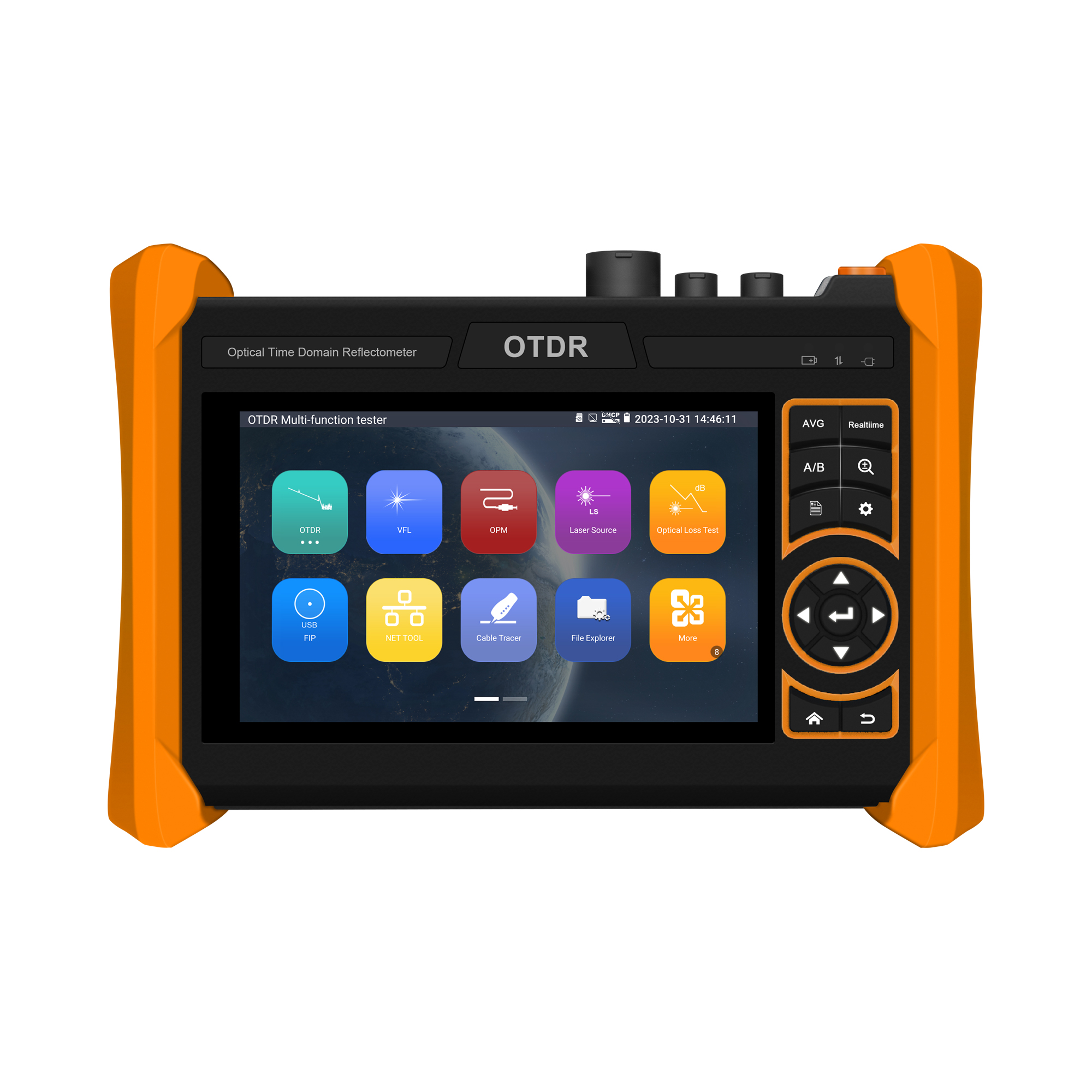

An Android-based field tester that scans the fiber link at 1310/1550/1625 nm and returns its event map. The same body runs an optical power meter, a visual fault locator, RJ45 TDR cable testing and network tools.

1310/1550/1625 nmOTDR wavelength

28/26 dBDynamic range

0.1 – 150 kmMeasurement range

0.8 mEvent dead zone

5.4 inchScreen size

Key features

1310/1550/1625nm

Three-wavelength scanning

Measures the link at three separate wavelengths and returns its loss profile.

0.8m

Dead zone that separates close events

Shows splices and connectors that sit close together as separate events.

0.1 – 150km

From short runs to long hauls

Measures everything from short in-building fiber to intercity links with the same unit.

28/26dB

Dynamic range for long links

Separates weak reflections and shows events at the far end of the link in the trace.

5.4inch

Android-based touch screen

Shows the measurement trace and the event list on one screen.

FOR THE FIELD TEAM

Fiber and copper in one handThe technician measuring the fiber link also finishes UTP and RJ45 TDR cable tests with the same unit.

Network side coveredIt runs PING, PPPoE and IP scan tests on site and locates the port on the switch with Port Flashing.

Reporting and archiveIt stores the measurement as SOR and PDF and moves the file to the office over FTP.

Usage AreasFiber optic link installation and maintenance·Copper cable and network fault location·Field service and commissioning

Advanced OTDR & Network Tester Technical Specifications

Display & System

5.4” IPS touch screen, Android operating system

Wavelength

1310 / 1550 / 1625 nm (Supports live fiber testing)

Dynamic Range

28 / 26 dB (1310 / 1550 nm)

Measurement Range

0.1 – 150 km measurement range, 0.8m Event Dead Zone (EDZ)

Pulse Width

3 ns – 20,000 ns pulse width options

Fiber Analysis

Event Map, attenuation analysis, and fault point detection

Optical Tools

Optical Power Meter (OPM), Laser Source, Visual Fault Locator (VFL)

Copper Cable Test

RJ45 TDR cable test, UTP cable test, and digital cable tracing

Network Functions

PING, PPPoE connection test, IP scan, and Port Flashing

Wireless & Data

WiFi test, FTP data transfer, SOR and PDF reporting

Additional Features

Integrated cable locator, automatic analysis, and data logging
