| General Specifications |
|---|

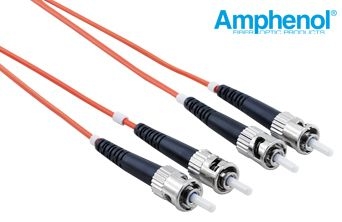

| Product Type | Fiber optic patch cord (duplex zipcord) |
| Fiber Type | Multi Mode 50/125 |
| Connector Type | ST Multi Mode (ST/PC), 4 places (2 per end) |
| Cable | Zipcord, Multi Mode 50/125, 2.0 mm, PVC, orange |
| Breakout Length | 2 × 150 ±10 mm (each end) |
| Heat Shrink Tube | 2 places |
| ID Label | 4 places |
| Wiring |
| Fiber # | Side A | Side B |
|---|
| 1 | A | B |
| 2 | B | A |
|
| Cable Specifications |
|---|
| Number of Fibers | 2 |
| Fiber Type | Corning 50/125 or equivalent |
| Core Diameter | 50 ±0.7 µm |
| Cladding Diameter | 125 ±1 µm |
| Primary Coating Diameter | 245 ±10 µm |
| Primary Coating Material | Acrylate |
| Buffer Diameter | 900 µm ±50 µm |
| Buffer Material | Riser rated material or better |
| Buffer Color | White & yellow, per EIA/TIA 598 |
| Number of Fibers per Sub-Unit | 1 |
| Outer Jacket Dimension | (2.0 mm +0/-0.2 mm) × (3.7 mm to 4.1 mm) |
| Outer Jacket Material | PVC |
| Outer Jacket Color | Orange, per EIA/TIA 598 |
| Flammability Rating | Riser (OFNR) per UL-1666 |
| Cable Construction | Tight buffered |
| Strength Member Material | Aramid yarn |
| Fiber Proof Strength | ≥100 kpsi |
| Tensile Load | 100 N operating / 200 N installation |
| Buffer Stripability | Per GR-409 |
| Jacket Shrinkage | Per GR-20 |
| Attenuation | ≤3.5 dB/km @850 nm, ≤1.5 dB/km @1300 nm |
| OFL Bandwidth | ≥500 MHz·km @850 nm, ≥500 MHz·km @1300 nm |
| Numerical Aperture (NA) | 0.200 ±0.015 |
| Core to Cladding Concentricity | ≤3.0 µm |
| Cutoff Wavelength | N/A |
| Operating Temperature | -40°C to +85°C |
| Installation Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Impact Resistance | ≤0.74 N·m |
| Crush Resistance | ≤3.5 N/mm |
| Minimum Bend Radius | Installation = 20 × O.D., Long term = 10 × O.D. |
| RoHS Compliance | Yes |
| Patch Cord |
|---|
| Insertion Loss | ≤0.3 dB |
