Stock Code: ED487-3J001M-97
| General Specifications | |
|---|---|

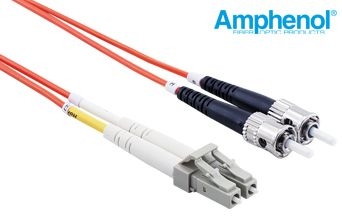

| Product Type | Fiber optic patch cord (duplex) |
| Fiber Mode | Multi Mode (M/M), 62.5/125 |
| Connector, Side A | LC Duplex, Multi Mode |
| Connector, Side B | ST, Multi Mode (2 pcs) |
| Insertion Loss | ≤ 0.3 dB |
| RoHS Compliance | Yes |
| Cable Specifications | |
| Number of Fibers | 2 |
| Fiber Type | Corning 62.5/125 or equivalent |
| Core Diameter | 62.5 ±0.7 µm |
| Cladding Diameter | 125 ±1 µm |
| Primary Coating Diameter | 245 ±10 µm |
| Primary Coating Material | Acrylate |
| Buffer Diameter | 900 µm ±50 µm |
| Buffer Material | Riser rated material or better |
| Buffer Color | White & Yellow (EIA/TIA 598) |
| Number of Fibers per Sub-Unit | 1 |
| Outer Jacket Dimension | (2.0 mm +0/-0.2 mm) × (3.7 mm - 4.1 mm) |
| Outer Jacket Material | PVC |
| Outer Jacket Color | Orange (EIA/TIA 598) |
| Flammability Rating | Riser (OFNR), UL-1666 |
| Cable Construction | Tight Buffered |
| Strength Member Material | Aramid yarn |
| Fiber Proof Strength | ≥100 kpsi |
| Tensile Load | 100 N (operating) / 200 N (installation) |
| Buffer Stripability | Per GR-409 |
| Jacket Shrinkage | Per GR-20 |
| Attenuation | ≤3.5 dB/km @850 nm, ≤1.5 dB/km @1300 nm |
| OFL Bandwidth | 200 MHz.km @850 nm, 500 MHz.km @1300 nm |
| Numerical Aperture (NA) | 0.275±0.015 |
| Core to Cladding Concentricity | ≤3.0 µm |
| Cutoff Wavelength | N/A |
| Minimum Bend Radius | Installation = 20 × O.D.; Long term = 10 × O.D. |
| Impact Resistance | ≤0.74 N.m |
| Crush Resistance | ≤3.5 N/mm |
| Environmental | |
| Operating Temperature | -40°C ~ +85°C |
| Installation Temperature | -40°C ~ +85°C |
| Storage Temperature | -40°C ~ +85°C |
