Stock Code: ED4D4-1J001M-97
| General | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ED4D4-1J001M-97 | |||||||||

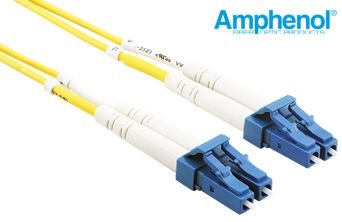

| Product Type | Fiber optic patch cord, duplex, single mode | |||||||||
| Connector | LC Duplex S/M connector, 2 places | |||||||||
| Cable | Zipcord, S/M, 2.0 mm, PVC, yellow | |||||||||
| Breakout Leg Length | 2 × 150 ±10 mm (each end) | |||||||||
| Heat Shrink Tube | 2 places | |||||||||
| Heat Shrink Crimp Colour | Yellow and white | |||||||||
| ID Marking | 4 places | |||||||||
| Wiring Table |
| |||||||||
| Optical Performance (Patch Cord) | ||||||||||
| Insertion Loss | ≤ 0.3 dB | |||||||||
| Return Loss | ≥ 50 dB | |||||||||
| Cable Specifications | ||||||||||
| Number of Fibers | 2 | |||||||||
| Fiber Type | Corning 9/125 or equivalent | |||||||||
| Core Diameter | 9.0 ±0.7 µm | |||||||||
| Cladding Diameter | 125 ±1 µm | |||||||||
| Primary Coating Diameter | 245 ±10 µm | |||||||||
| Primary Coating Material | Acrylate | |||||||||
| Buffer Diameter | 900 µm ±50 µm | |||||||||
| Buffer Material | Riser rated material or better | |||||||||
| Buffer Colour | White & yellow, per EIA/TIA 598 | |||||||||
| Number of Fibers per Sub-unit | 1 | |||||||||
| Outer Jacket Dimension | (2.0 mm +0/−0.2 mm) × (3.7 mm to 4.1 mm) | |||||||||
| Outer Jacket Material | PVC | |||||||||
| Outer Jacket Colour | Yellow, per EIA/TIA 598 | |||||||||
| Flammability Rating | Riser (OFNR) per UL-1666 | |||||||||
| Cable Construction | Tight buffered | |||||||||
| Strength Member Material | Aramid yarn | |||||||||
| Fiber Proof Strength | ≥100 kpsi | |||||||||
| Tensile Load | 100 N operating / 200 N installation | |||||||||
| Buffer Stripability | Per GR-409 | |||||||||
| Jacket Shrinkage | Per GR-20 | |||||||||
| Attenuation | ≤0.4 dB/km @1310 nm, ≤0.3 dB/km @1550 nm | |||||||||
| OFL Bandwidth | N/A | |||||||||
| Numerical Aperture (NA) | 0.14 typ. | |||||||||
| Core to Cladding Concentricity | ≤0.5 µm | |||||||||
| Cutoff Wavelength | 1260 nm | |||||||||
| Operating Temperature | −40°C ~ +85°C | |||||||||
| Installation Temperature | −40°C ~ +85°C | |||||||||
| Storage Temperature | −40°C ~ +85°C | |||||||||
| Impact Resistance | ≤0.74 N·m | |||||||||
| Crush Resistance | ≤3.5 N/mm | |||||||||
| Minimum Bend Radius | Installation = 20 × O.D., long term = 10 × O.D. | |||||||||
| RoHS Compliance | Yes | |||||||||
