Links an LC duplex port to ST equipped hardware.

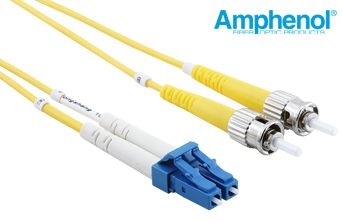

A single mode fiber optic patch cord with an LC duplex connector on side A and ST connectors on side B. The tight buffered zipcord body and yellow PVC outer jacket suit short runs inside cabinets.
Mixed endsSide A carries an LC duplex connector and side B two ST connectors.
Optical performanceInsertion loss stays at or below 0.3 dB and return loss stays above 50 dB.
Low attenuationLoss reaches 0.4 dB/km at 1310 nm and 0.3 dB/km at 1550 nm.
Mechanical strengthThe aramid yarn strength member carries 100 N operating and 200 N installation tensile load.
Temperature rangeOperating, installation and storage temperature runs from -40 °C to +85 °C.
Flammability ratingThe cable meets the Riser (OFNR) rating per UL-1666.
