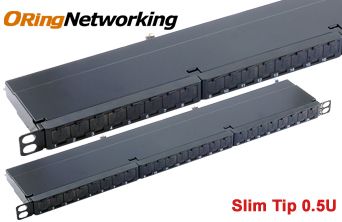

Name: FTP Cat6a 10G 24 Port Patch Panel - Right Angle
Brand: Oring Networking
SKU: PPC6AF24R

Terminates 24 shielded copper links in a single row inside the cabinet.

This FTP Cat6a patch panel gathers the horizontal cabling of a cabinet into one termination point. The right angle port layout steers cables to the side of the panel, and the 24 dust shutter ports stand ready for 10G Base-T.

24Port Count

10 GbpsTransmission Speed

500 MHzFrequency

FTPShielding

Cat6aCable Type

110 Punch DownTermination

Key features

24Port

Dense termination in one body

Gathers shielded RJ45 ports with dust shutters into a single row.

10Gbps

Ready for networks beyond Gigabit

Carries 10G Base-T (10-Gigabit Ethernet) applications.

500MHz

Category bandwidth

Runs at the bandwidth the Cat6a class calls for.

50micro inch

Gold plated contacts

Contact surfaces are gold plated and the block accepts T568A and T568B schemes.

750cycles

Long service life

The RJ45 side takes at least 750 mating cycles and the IDC side at least 250 re-terminations.

22-26AWG

Wide cable compatibility

Terminates solid conductor cables from 22 to 26 AWG.

IN THE FIELD

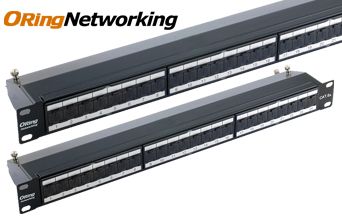

Dust shutter portsSpring loaded shutters keep empty ports closed, so dust stays off the contact surface.

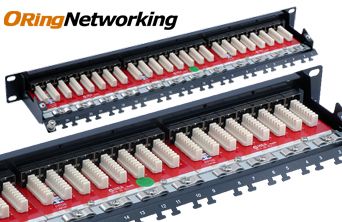

Punch down terminationThe installer presses the cable into the block and fits no separate connector.

Right angle bodyThe right angle exit steers cables to the side of the panel and keeps the cabinet front clear.

ORing Networking structured cabling products carry a lifetime warranty.

General and Mechanical Specifications

Product Type

FTP Cat6a Patch Panel - 24 Port (Right Angle)

Extra Protection

Integrated Dust Protection Shutter Ports

Termination Method

110 Punch Down Compatible

Contact Plating

50u Micro Inch Gold Plated Contacts

Housing Material

High-Durability Flame Retardant Plastic (UL 94V-0)

Wire Compatibility

22 - 26 AWG Solid Wires

Service Life

RJ45 Port: Min. 750 Cycles / IDC: Min. 250 Re-terminations

Performance and Standards

Operating Frequency

500 MHz Bandwidth

Application Support

10G Base-T (10-Gigabit Ethernet)

Wiring Schemes

Fully Compatible with T568A and T568B

Standard Compliance

TIA/EIA 568 C.2, ISO/IEC 11801, EN 50173-1

Warranty

Lifetime Warranty for ORing Networking Structural Products
