Carries the fiber run to the antenna outdoors inside an armored breakout body.

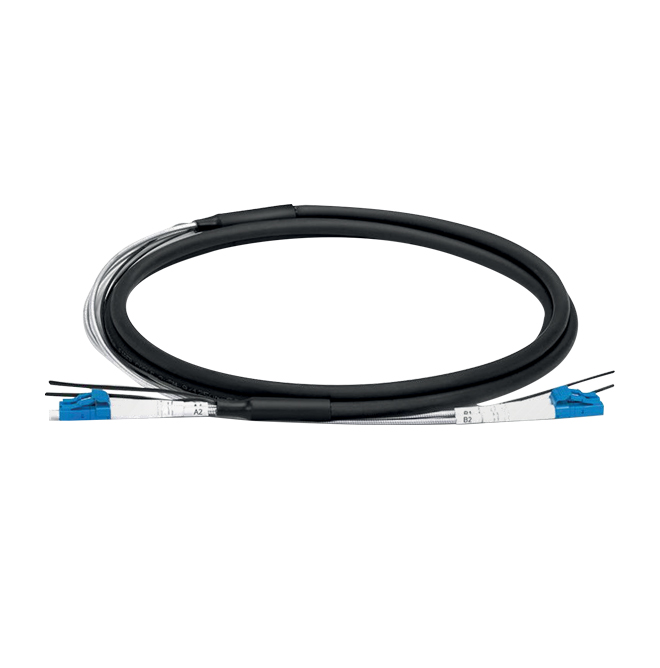

An LC/PC terminated single mode breakout patch cord for FTTA links that holds up to harsher indoor and outdoor conditions than a standard patch cord. Steel sleeves at both ends protect the connector area, while the thick outer rubber surface and the inner protection layer keep the fibers clear of crushing.
Cable structureThe breakout body, with steel sleeves at each end, stands up to external stress better than a standard patch cord.
Protection gradeThe IP67 compliant build shields the cable against water and dust.
FiberIt carries single mode fiber to the G657A2/B2 standard and comes as a 2 or 4 fiber build on request.
Optical performanceInsertion loss runs at a typical 0.25 dB/km at 1310 nm; return loss reaches 50 dB on UPC ends and 65 dB on APC ends.
TemperatureIt operates between -40 °C and +85 °C, installs between -15 °C and +60 °C and stores between -40 °C and +80 °C.
LengthOrder codes cover lengths from 10 m to 120 m.
