Stock Code: 20 76 116 3000
| Part Number: 20 76 116 3000 | |
|---|---|

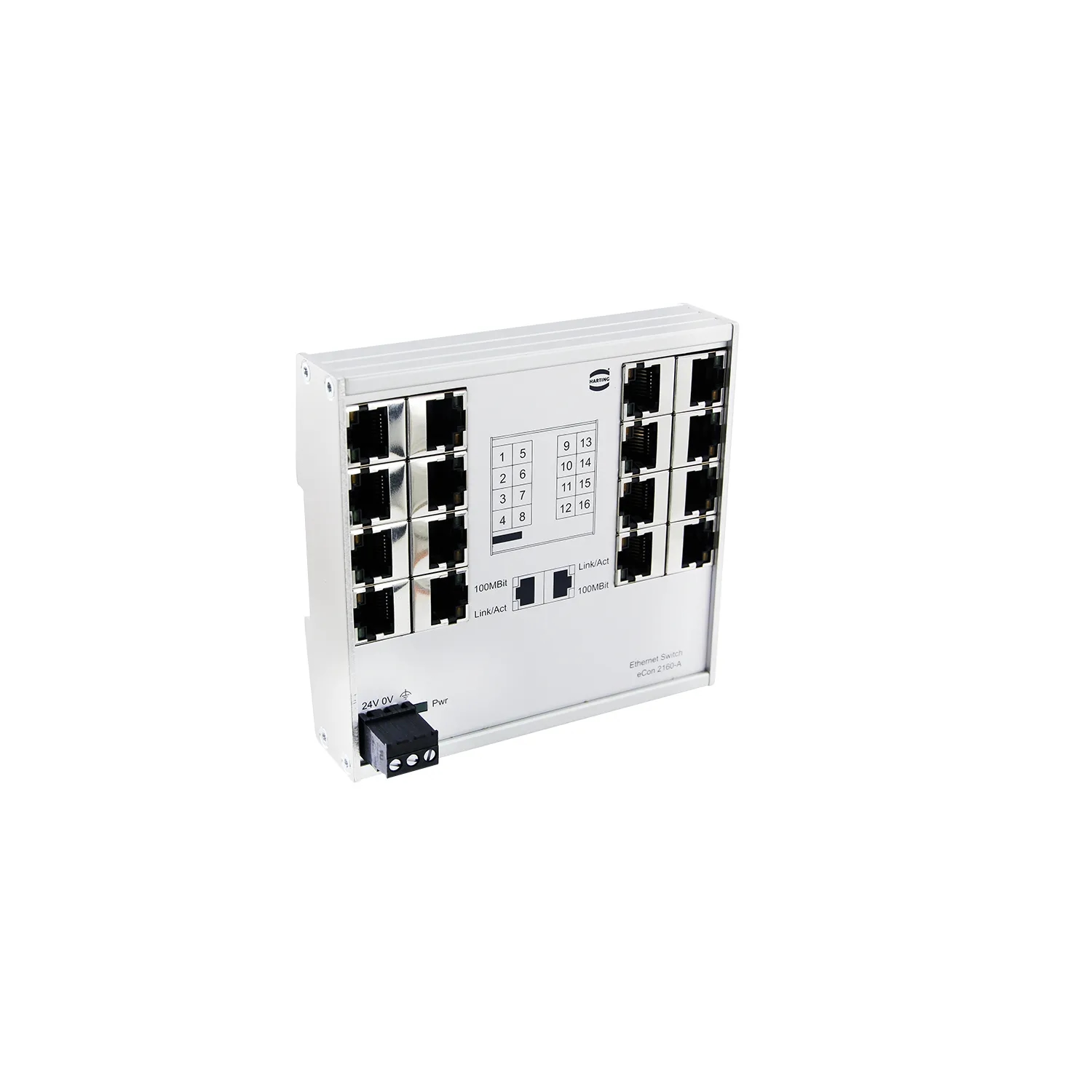

| Description | Ha-VIS eCon 2160-A |
| Cable Length, Copper, Max. | 100 m (Twisted Pair; with Category 5 cable according to DIN EN 50 173-1) |
| Cable Type, Copper | Shielded Twisted Pair (STP) or Unshielded Twisted Pair (UTP), Category 5 |
| Diagnostic voltage | Han® 70 A module |
| Ethernet Type, Copper | 10/100Base-T(X) |
| EtherNet/IP | Yes |
| MTBF | approx. 1,150,000 h |
| Number of Ports, Copper | 16 |
| PROFINET | Yes |
| RoHS compliance | Yes |
| Series, Ethernet | Ha-VIS eCon 2000 |
| Copper termination | RJ45 (Twisted Pair) |
| Weight | approx. 0.4 kg |
| Width | 119.4 mm |
| Height | 113.5 mm |
| Depth | 27.3 mm |
| Operating Temperature, Min. | -10 °C |
| Operating Temperature, Max. | 70 °C |
| Data Rate, Copper | 10/100 Mbit/s |
| Diagnostics, Ethernet | Link Status - Green; Data transfer (Act) - Green flashing; Data transfer rate (Speed) - 100 Mbit/s: Yellow / 10 Mbit/s: OFF |
| Input Voltage, Min. | 12 V DC |
| Input Voltage, Max. | 48 V DC |
| Input Current | approx. 100 mA |
| Input Current, Additional data | at 24 V DC |
| Application areas | Pneumatic contacts; single module with standard shielded RJ45 plug and jack patch cables are installed / removed without tools, without power distribution systems |
| Material, Head/Housing | Aluminium |
| Surface, Head/Housing | Anodized |
| Protection class according to DIN EN 60 529 | IP 30 |
| Storage Temperature, Min. | -40 °C |
| Storage Temperature, Max. | 85 °C |
| Relative Humidity, Min. | 10 % |
| Relative Humidity, Max. | 95 % |
| Mounting | Pneumatic contacts |
| Topology | Line, Star or mixed |
| Termination power source | 3-pole, pluggable screw contact (24 V, 0, FE) |
| Input voltage 1 | approx. 24 V |
