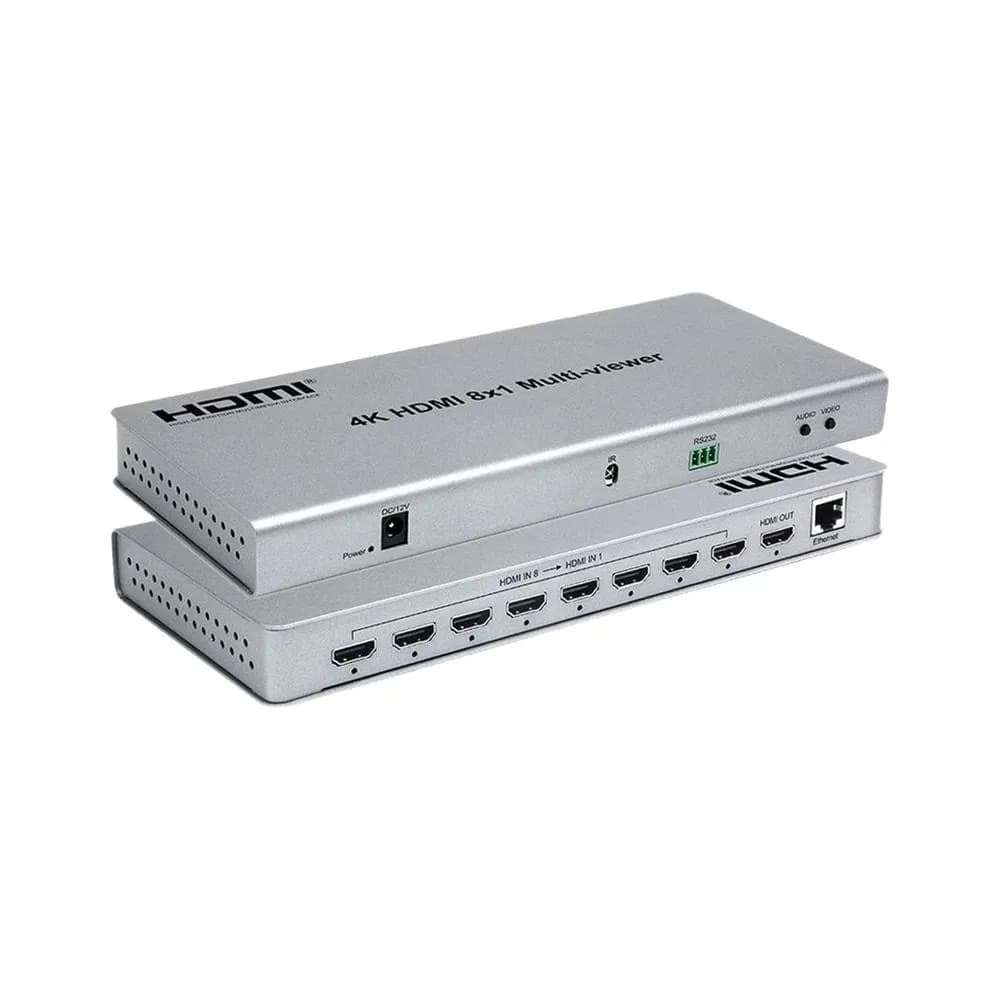

Shows eight HDMI sources on one screen and switches between them seamlessly.

A quad multiviewer switch that gathers eight HDMI inputs into a single output. It splits the screen to show the sources at the same time and moves to the wanted source from the IR remote or a control interface.

8x1Input / output

3840x2160 @ 30 HzMax. output resolution

1080pInput resolution

HDMI 1.4HDMI version

HDCP 1.4HDCP support

15 mHDMI cable distance

Key features

8inputs

Multi-source viewing

Gathers eight HDMI sources into one output and shows them all at once on a split screen.

3840x2160@ 30 Hz

High-resolution output

The output also drives 2560x1600 and 2560x1440 @ 60 Hz modes.

HDMI1.4

Wide source compatibility

Works with HDMI 1.4, HDCP 1.4 and DVI 1.0 versions.

15m

Long cable reach

A high-speed HDMI cable reaches up to 15 meters on the input and output side.

252x105x25mm

Compact housing

The 792 gram housing takes little space on a desk.

IN DAILY USE

Seamless switchingThe screen stays lit while sources change, so the presentation keeps its flow.

Remote operationThe IR remote handles source switching from a distance.

Audio and subtitlesSuperimposes audio and video and renders subtitles more clearly.

Technical Specifications

Feature

Details

HDMI Inputs

8 HDMI inputs

HDMI Output

1 HDMI output

HDMI Signal Segmentation

8-channel HDMI signal screen segmentation

HDMI Signal Switching

8-channel seamless HDMI signal switching support

Resolution

Supports up to 1080P / 60Hz

Control

IR control

Supported HDMI and Protocols

HDMI 1.4, HDCP 1.4, DVI 1.0

Input Resolutions

1080P, 720P, 1080i, 1024x768, 1360x768, etc.

Output Resolutions

1080P @ 60Hz, 2560x1600 @ 60Hz, 2560x1440 @ 60Hz, 3840x2160 @ 30Hz with PCM2 Audio Output

Audio and Video Feature

Audio and video superimposition

Subtitle Quality

Clearer subtitles

HDMI Cable Support

Supports HDMI cables up to 15 meters
