Routes sixteen HDMI sources to sixteen displays at the same time.

A 2U professional matrix switch that routes sixteen HDMI inputs to sixteen HDMI outputs, either independently or synchronously. Its modular card-based hardware architecture runs without an operating system and completes channel changes quickly.

16x16Matrix configuration

4K x 2K / 30 HzResolution

2URack height

30 WPower consumption

RS232Control port

Key features

16x16in/out

Sixteen sources, sixteen displays

Routes sixteen HDMI sources independently to sixteen displays.

36bit

True color

Supports 36-bit true color technology and signal re-timing.

12.75Gbandwidth

Synchronous switching

The switching chip changes all signals at the same time.

20/25m

Cable reach

Works up to 20 m in and 25 m out with HDMI 1.4 cable.

2Uchassis

Rack mounting

The 2U chassis fits a standard equipment rack.

EDIDmanagement

Display compatibility

EDID rewrite and adaptive functions improve compatibility with different displays.

DAILY USE

Uninterrupted operationBoards swap while the unit runs, and the system carries no operating system, so it responds fast.

Scene memoryIt saves frequent channel layouts and recalls them in a single step.

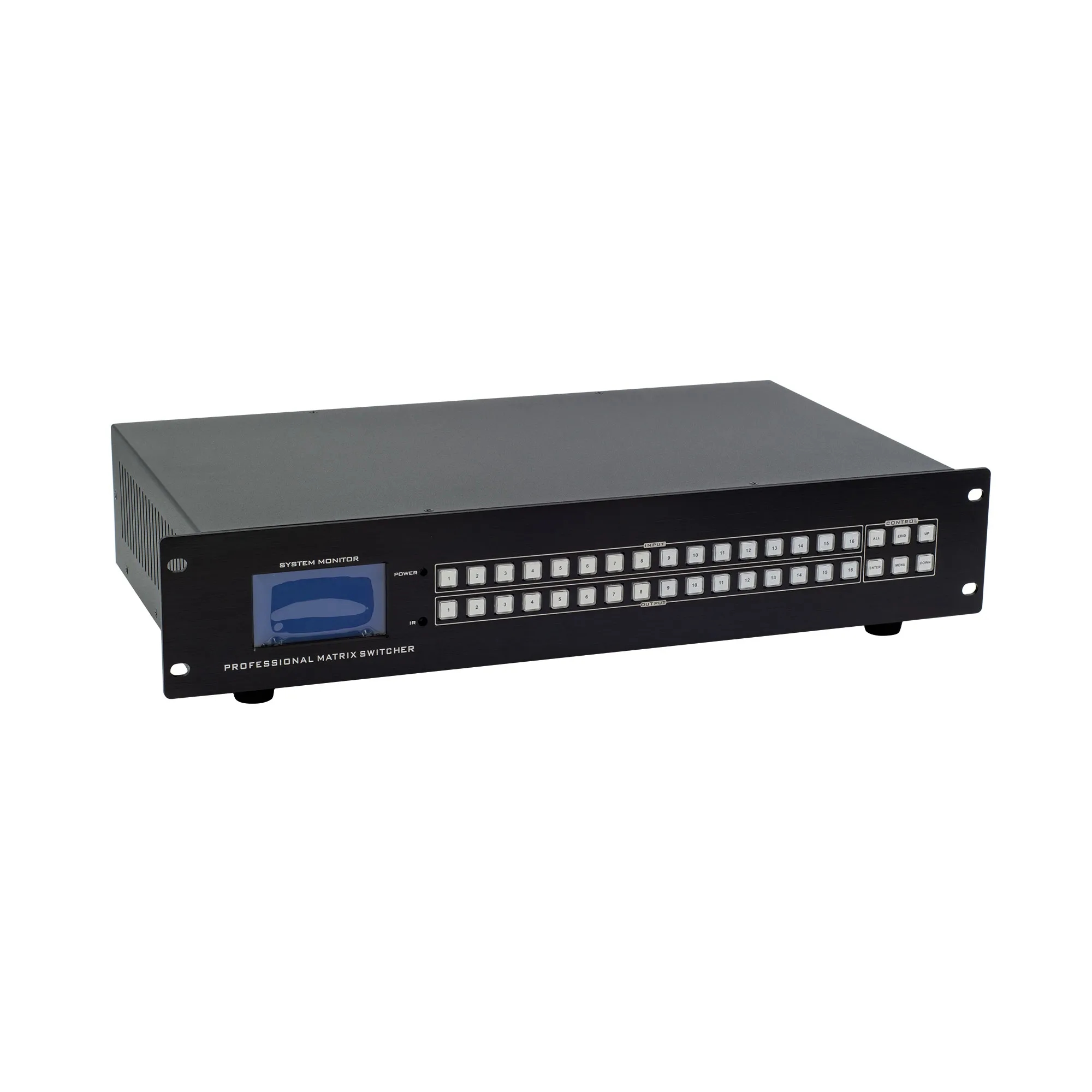

Control from the panelThe large LCD screen shows the status of the input and output channels.

Usage AreasBroadcast engineering·Multimedia conference rooms·Large-screen display projects·TV education·Command and control centers

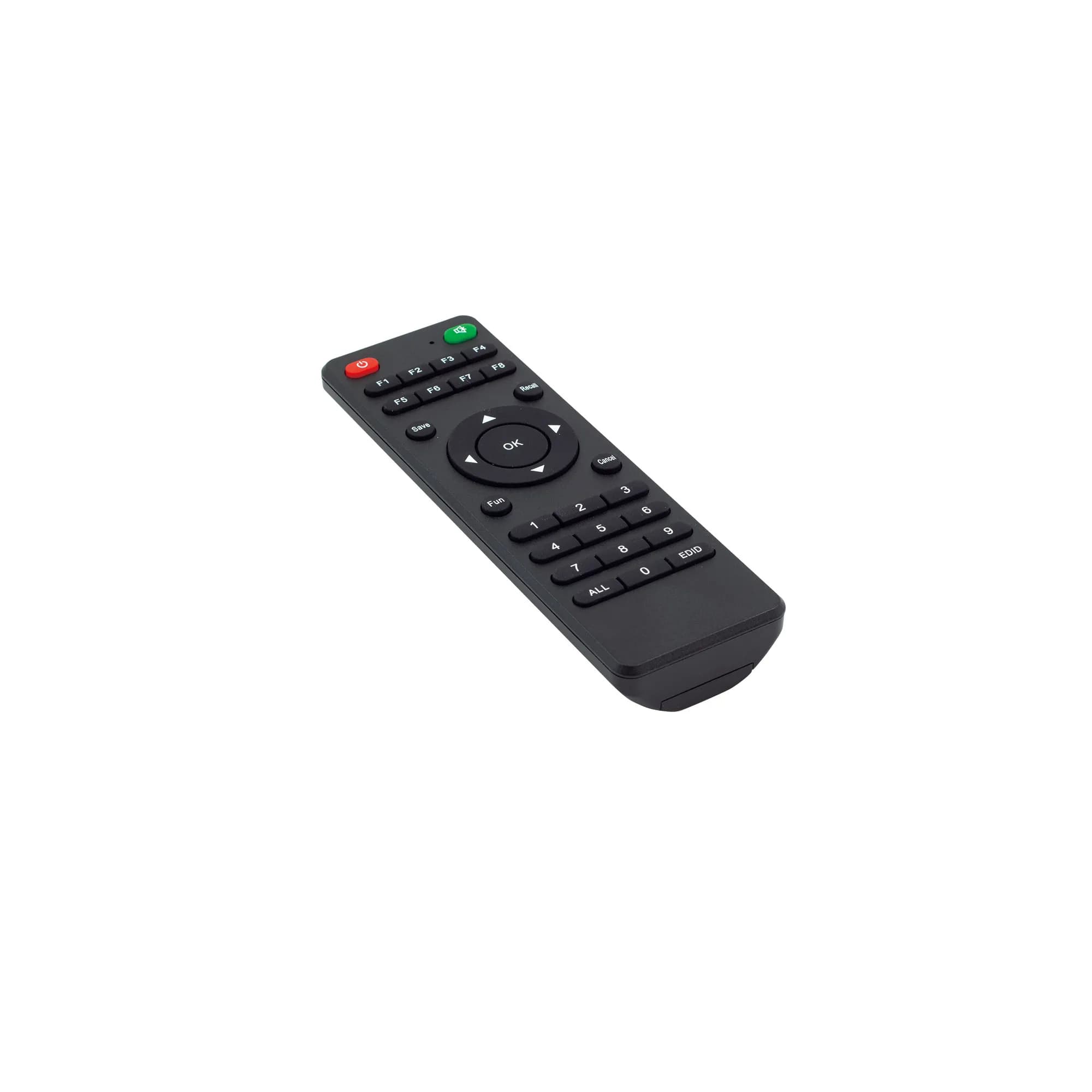

Web and app control are optional configurations, and the infrared remote control is an optional accessory.

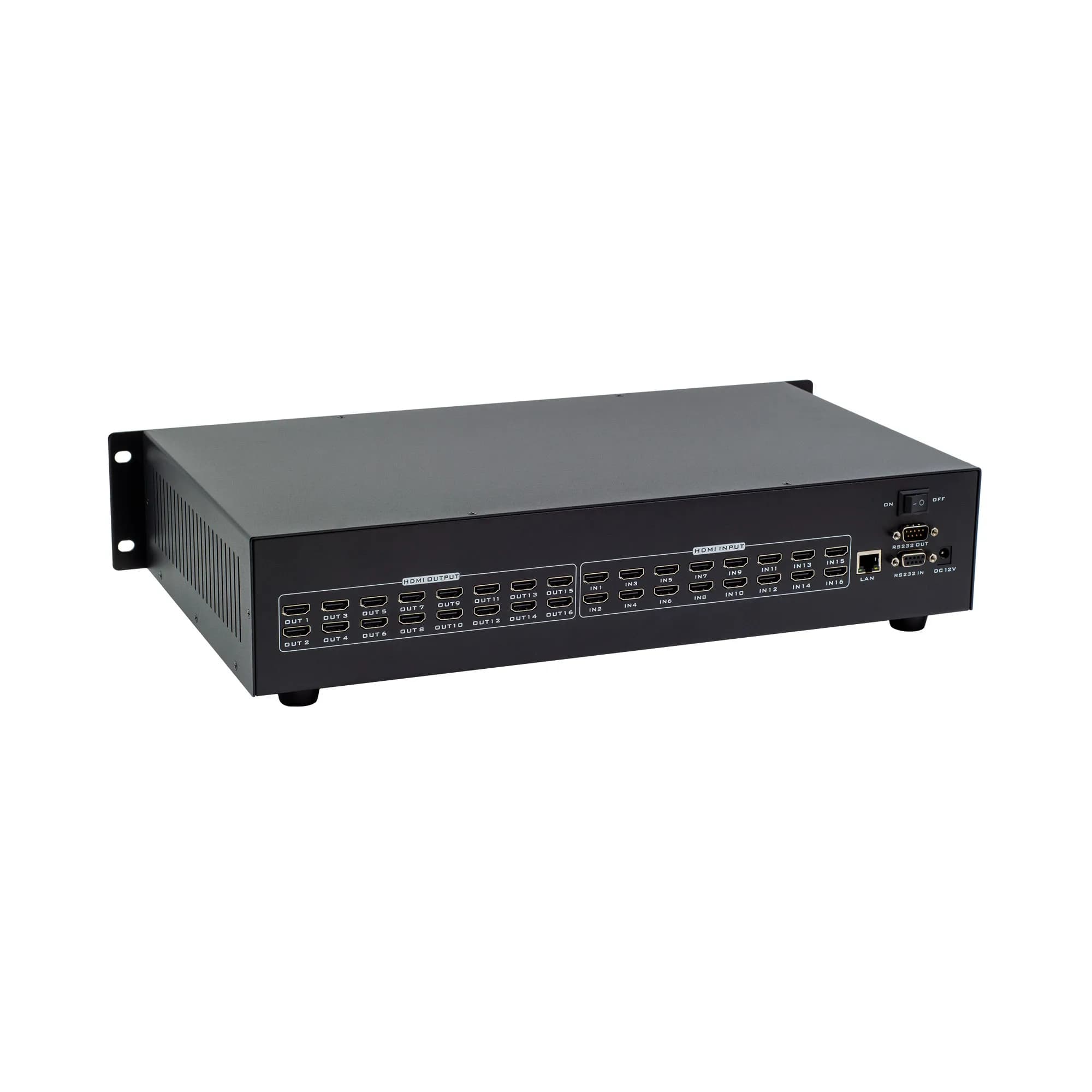

Ultra HD 4K Matrix Switch 16x16

Input Port

16x HDMI

Output Port

16x HDMI

Device Height

Resolution

480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 1080P 3D@60Hz, 4K*2K@30Hz

Control Port

1xRS232 Input, 1xRS232 Output

Protocol Standard

Supports 4K 30Hz, supports EDID management and rewrite, supports HDCP analysis

Color Space

RGB444, YUV444, YUV422 color space, x,v,Color extended color gamut standard

Electrostatic Protection

Human body model: ±8kv (air-gap discharge) ±4kv (contact discharge)

Switch Control

Normal configuration: panel switch, remote switch; Optional configuration: WEB control, APP control

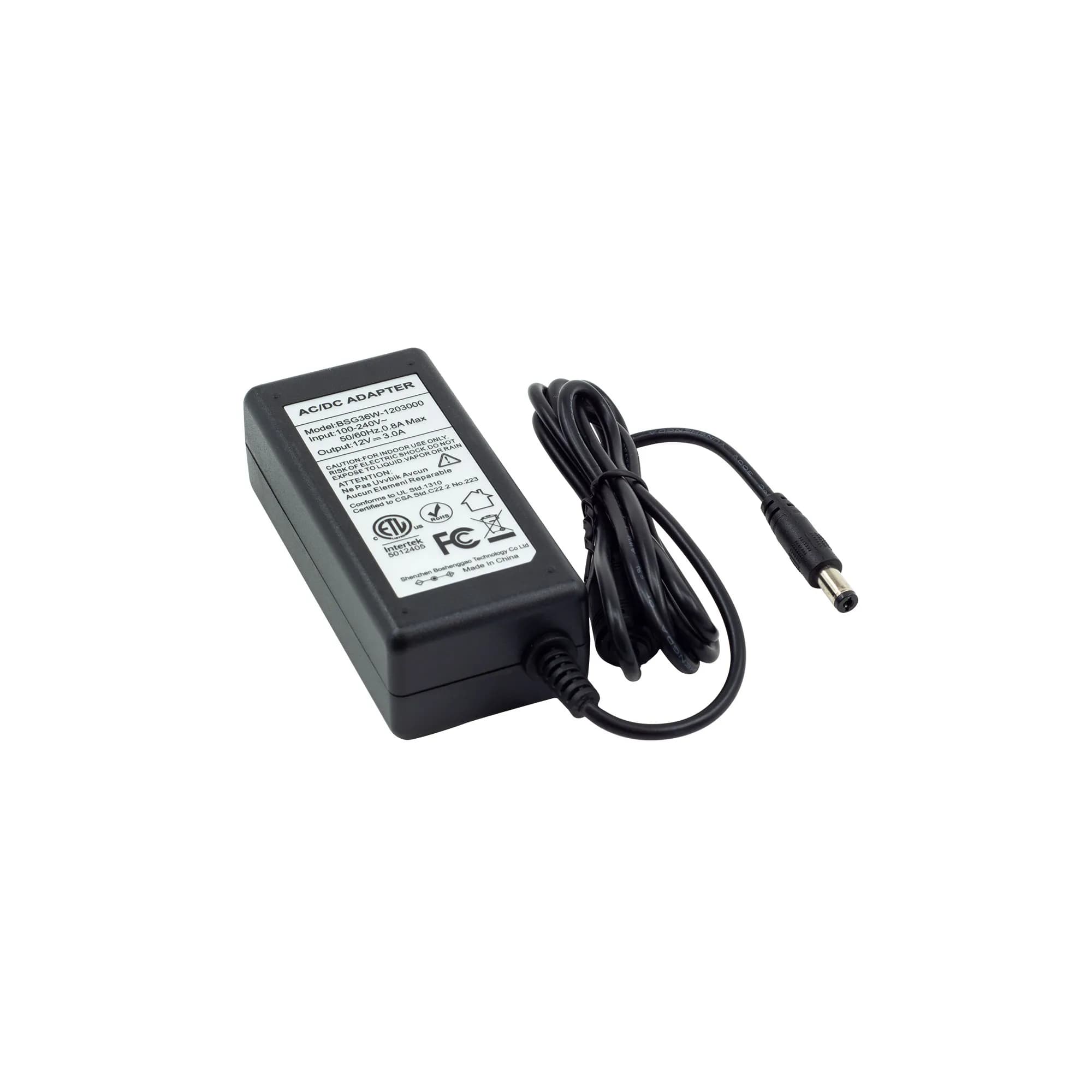

Power Supply

AC:110V-240V 50/60Hz DC:12V

Power Consumption

30W

Dimensions

435 x 245 x 45mm (excluding mounting ears)

Operating Temperature

0°C--40°C / 32°F--104°F

Storage Temperature

-20°C--60°C / -4°F--140°F

Routes sixteen HDMI sources to sixteen displays at the same time.

16x16Matrix configuration

4K x 2K / 30 HzResolution

2URack height

30 WPower consumption

RS232Control port

Key features

16x16in/out

Sixteen sources, sixteen displays

Routes sixteen HDMI sources independently to sixteen displays.

36bit

True color

Supports 36-bit true color technology and signal re-timing.

12.75Gbandwidth

Synchronous switching

The switching chip changes all signals at the same time.

20/25m

Cable reach

Works up to 20 m in and 25 m out with HDMI 1.4 cable.

2Uchassis

Rack mounting

The 2U chassis fits a standard equipment rack.

EDIDmanagement

Display compatibility

EDID rewrite and adaptive functions improve compatibility with different displays.

DAILY USE

Uninterrupted operationBoards swap while the unit runs, and the system carries no operating system, so it responds fast.

Scene memoryIt saves frequent channel layouts and recalls them in a single step.

Control from the panelThe large LCD screen shows the status of the input and output channels.

Usage AreasBroadcast engineering·Multimedia conference rooms·Large-screen display projects·TV education·Command and control centers

Web and app control are optional configurations, and the infrared remote control is an optional accessory.

Ultra HD 4K Matrix Switch 16x16

Input Port

16x HDMI

Output Port

16x HDMI

Device Height

Resolution

480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 1080P 3D@60Hz, 4K*2K@30Hz

Control Port

1xRS232 Input, 1xRS232 Output

Protocol Standard

Supports 4K 30Hz, supports EDID management and rewrite, supports HDCP analysis

Color Space

RGB444, YUV444, YUV422 color space, x,v,Color extended color gamut standard

Electrostatic Protection

Human body model: ±8kv (air-gap discharge) ±4kv (contact discharge)

Switch Control

Normal configuration: panel switch, remote switch; Optional configuration: WEB control, APP control

Power Supply

AC:110V-240V 50/60Hz DC:12V

Power Consumption

30W

Dimensions

435 x 245 x 45mm (excluding mounting ears)

Operating Temperature

0°C--40°C / 32°F--104°F

Storage Temperature

-20°C--60°C / -4°F--140°F
