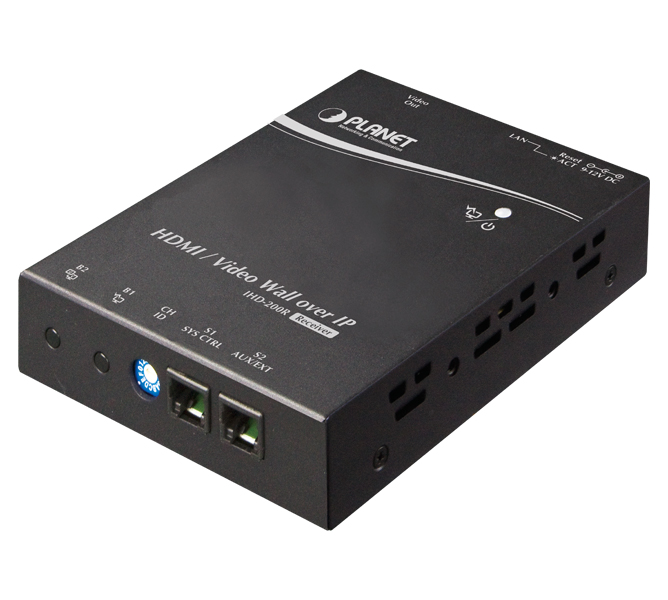

HDMI / Video Wall over IP Receiver

HDMI Network
• 1080P ultra high quality video transmitter.
• Assigns video sources to any monitor of the video wall
• Up to 8 x 8 Screen Array supported
• Extend high definition video signal over Gigabit LAN and IGMP
• 16 selectible DIP switch for multi-casting group matching easily
• 1-to-1, 1-to-many & multi-casting broadcasting architecture allows to add more displays without
adding LAN bandwidth loading

Video Output Characteristics
• HDCP compliant and Blu-ray read
• Supports HDMI with 2ch. audio (dts.)
• HDTV compatible, supporting 1080P, 1080i, 720P, 720i
• Compatible with common screen resolutions from XGA, SXGA, UXGA, WSXGA to the latest Full HD
system

Easy Installation & Management
• Automatic EDID (Extended Display Identification Data) configuration
• Friendly Web UI and simple utility for ease of use
• Supports multi-casting group with Gigabit Ethernet Managed Switch (802.1q VLAN & IGMP function
required).
• VESA mounting bracket supported

PLANET IHD-200T and IHD-200R work as a pair to facilitate the management of video wall and HDMI display over IP Ethernet.

Video Extender
The IHD-200T and IHD-200R enables the same display to multi-monitors in different locations at the same time. It helps to fast extend the image and commercial to the public efficiently in expo, food court, boardrooms, and any public areas.

Video Wall
To bring the image and picture in larger size over video wall, the IHD-200T and IHD-200R is the ideal solution to split one specified image, picture, or video over multiple screens which are usually applied in sports games, department stores, movie theaters, etc.

Efficient Control via 16 Channels Selectable DIP Switch
Where there is more than one transmitter in the video wall system, the rotary DIP switch in the IHD-200T and IHD-200R facilitates distinguishing the pair of the transmitter and receiver units in the same channel. It further enables the broadcasting system to perform multi functions include Video Extender and Video Wall simultaneously through matching of the IHD-200T and IHD-200R.


Combine the two functions
By using the 16 channels selectable (DIP) way to combine the two main functions as following diagram.
