Stock Code: IHD-200T

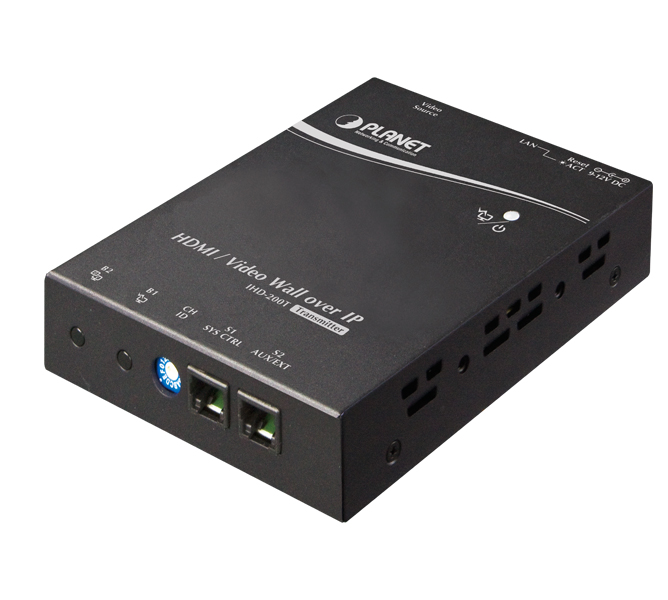

PLANET IHD-200T and IHD-200R work as a pair to facilitate the management of video wall and HDMI display over IP Ethernet.
Video Extender
The IHD-200T and IHD-200R enables the same display to multi-monitors in different locations at the same time. It helps to fast extend the image and commercial to the public efficiently in expo, food court, boardrooms, and any public areas.
Video Wall
To bring the image and picture in larger size over video wall, the IHD-200T and IHD-200R is the ideal solution to split one specified image, picture, or video over multiple screens which are usually applied in sports games, department stores, movie theaters, etc.
Efficient Control via 16 Channels Selectable DIP Switch
Where there is more than one transmitter in the video wall system, the rotary DIP switch in the IHD-200T and IHD-200R facilitates distinguishing the pair of the transmitter and receiver units in the same channel. It further enables the broadcasting system to perform multi functions include Video Extender and Video Wall simultaneously through matching of the IHD-200T and IHD-200R.
Combine the two functions
By using the 16 channels selectable (DIP) way to combine the two main functions as following diagram.
