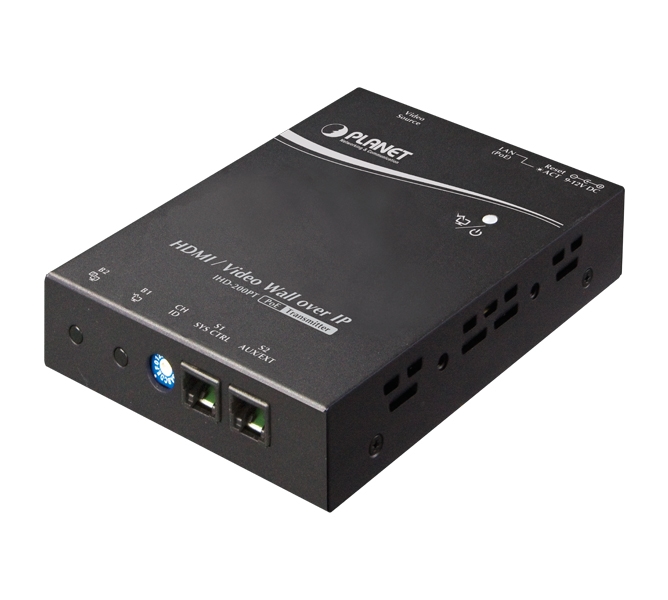

PLANET IHD-200PT and IHD-200PR work as a pair to facilitate the management of video wall and HDMI display over IP Ethernet with PoE. |
|
|
Video Extender
The IHD-200PT and IHD-200PR are able to send the same video signal to multi-monitors in different locations at the same time. It helps to quickly extend the image and commercial to the public efficiently in such places as expos, food courts, boardrooms, and any public areas. |
|
|
|
|
|
|
Video Wall
To bring the image and picture in larger size over video wall, the IHD-200PT and IHD-200PR are the ideal solution to distributing one specified image, picture, or video to multiple screens which are usually applicable for sports, department stores, movie theaters, etc. |
|
|
|
|
|
|
Efficient Control via Selectable 16-Channel DIP Switch
Where there is more than one transmitter in the video wall system, the rotary DIP switch in the IHD-200PT and IHD-200PR facilitates distinguishing the pair of the transmitter and receiver units in the same channel. It further enables the broadcasting system to perform multi functions including Video Extender and Video Wall simultaneously through matching of the IHD-200PT and IHD-200PR. |
|
|
|
|
|
|
Combining the two functions
The selectable 16-channel DIP switch is applied to combine the two main functions as shown in the following diagram: |
|
|
|
|
