Charges the electric vehicle from a 230 V supply through a Type 2 socket with shutters.

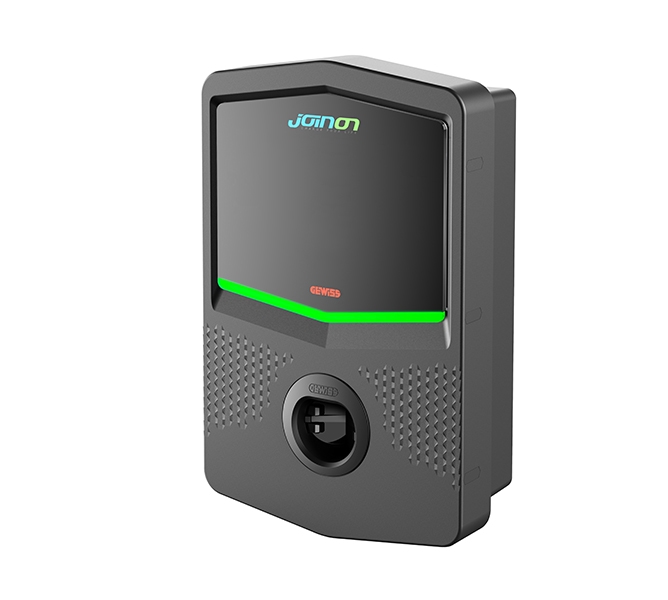

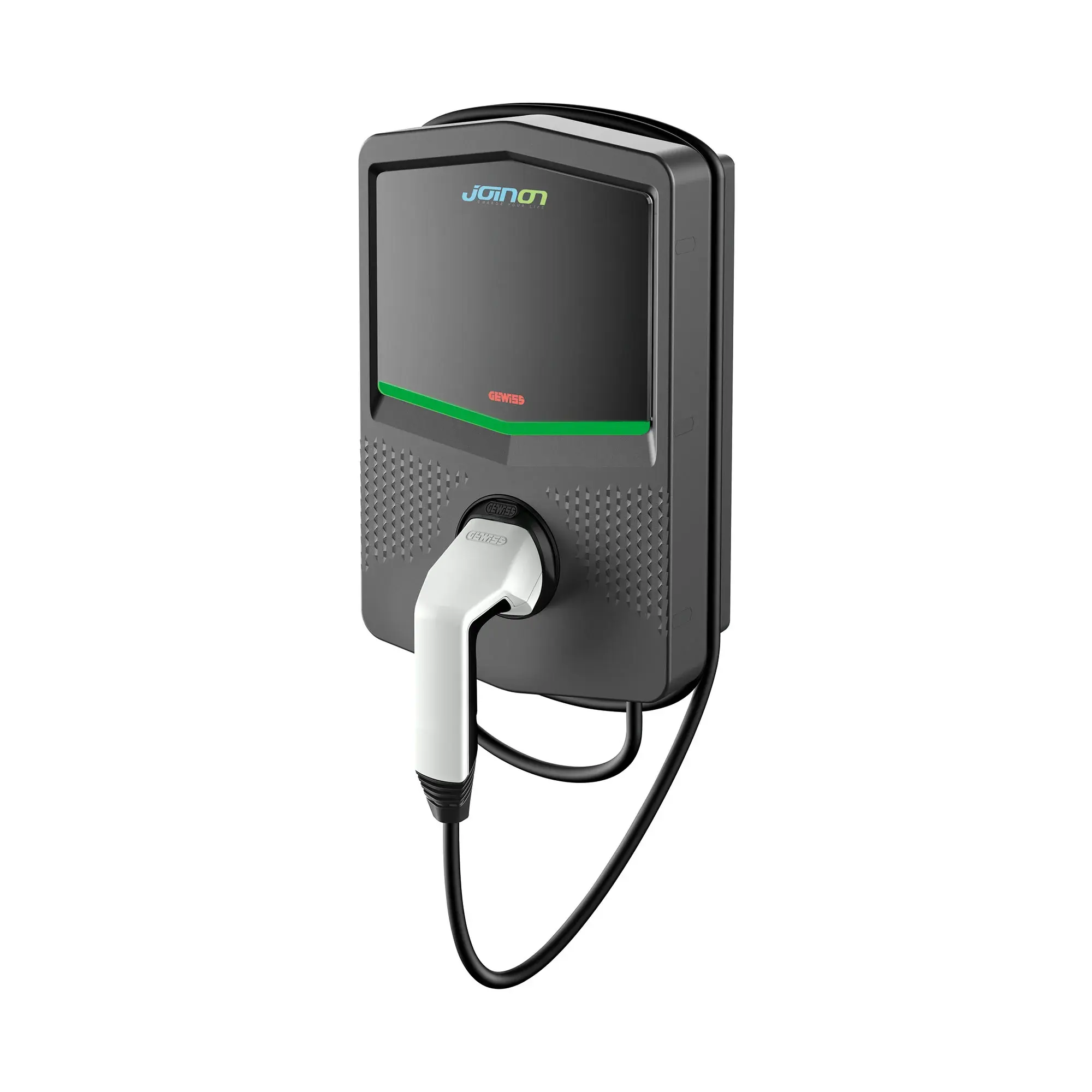

A wall-mounted AC charging unit. Its Type 2 socket with shutters takes the vehicle's own charging cable, and the RGB LED interface shows the charging state at a glance. The IP55 and IK10 enclosure keeps working in open parking areas.
4.6 kWTotal Power
230 VRated Voltage
20 ARated Current
Type 2 socket, with shuttersSocket / Connector
IP55Protection Grade
IK10Mechanical Resistance
Key features
4.6kW
AC charging power
It transfers power from the grid straight to the onboard charger of the vehicle.
230V
Supply voltage
It runs at the voltage level of a residential line.
20A
Rated current
It delivers up to 20 A to the vehicle throughout the session.
3 x 10mm²
Supply terminal size
Heavy supply conductors land directly on the terminal block.
-25 / +50°C
Operating temperature range
It keeps working outdoors through winter and summer.
DAILY USEPlug in and chargeCharging starts with free access; there is no card or authorization step.
Color LED indicatorThe RGB LED interface shows the state of the unit from a distance.
Wall or floor mountingThe unit works on a wall, and a support accessory moves the same unit to the floor.
Usage AreaDetached house garages·Residential parking areas
The unit carries no power meter, thermal-magnetic protection or residual current device; the DC leakage check runs inside the unit.
