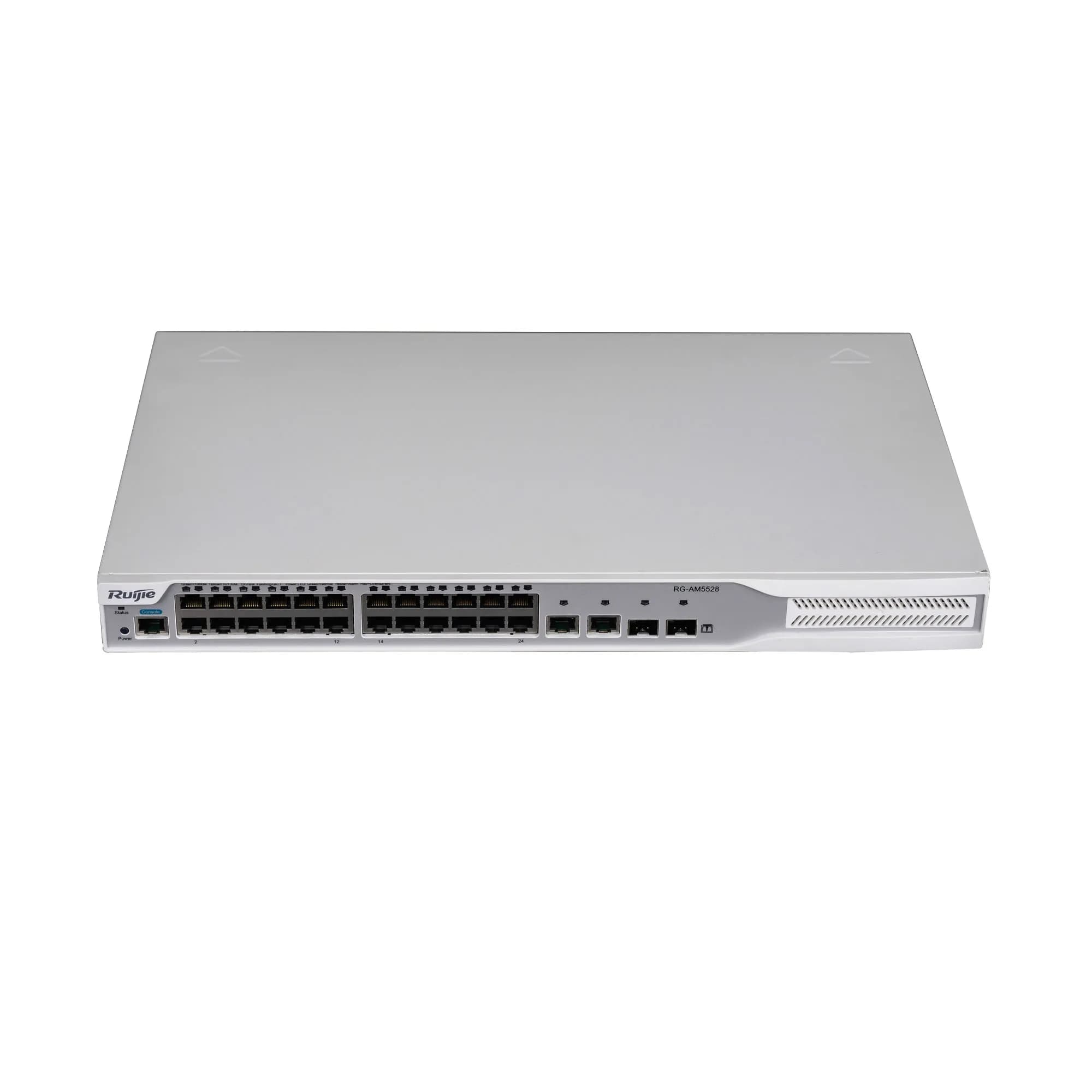

i-Share+ Master AP, built-in 24-port 1000Base-T (PoE), 2-port 1000Base-T and 2-port 1G/10GBase-X SFP+ uplinks, support max 24 Mini APs, each Master AP

Dimensions and Weight

Dimensions

(W x D x H)

Main unit: 442 mm x 315 mm x 43.6 mm (17.40 in. x 12.40 in. x 1.72 in.)

Shipping: 538 mm x 438 mm x 173 mm (21.18 in. x 17.24 in. x 6.81 in.)

Rack height

1 RU

Weight

Main unit: 4.6 kg (10.14 lbs)

Shipping: 6.38 kg (14.06 lbs)

Mounting

Rack-mount

System Specifications

Memory

1 GB DDR4

Flash memory

4 GB

Port Specifications

Fixed service port

Uplink: 4 x 10GE SFP+ ports that can only switch between 10GE SFP+ mode and 1GE SFP mode simultaneously. Separate mode switching is not supported.

Downlink: 24 x 1GE/2.5GE SFP ports and 24 x PoE-out ports. Ports 1 to 20 support PoE/PoE+, and each port supports up to a 30 W PoE power supply. Ports 21 to 24 support PoE/PoE+/PoE++, and each port supports up to 90 W PoE power supply.

The maximum PoE output power is 480 W.

Fixed management port

1 x RJ45 console port

1 x 10/100/1000BASE-T MGMT port

Status LED

24 x PoE LEDs

24 x 1000/2.5GBASE-X SFP port LEDs

4 x SFP+ port LEDs

1 x system status LED

1 x power LED

1 x MGMT port LED

Power Supply and Consumption

Input power supply

One 550 W built-in power module (AC input and DC output)

● Input voltage: 176 V AC to 240 V AC

Frequency: 50 Hz to 60 Hz

Rated input current: 4 A

● Output voltage: 12 V DC for the master AP and 54 V DC for the external unit

Maximum power consumption

Without load: < 42 W

With full load: < 530 W

Environment and Reliability

Temperature

Operating temperature: 0ºC to 45ºC (32°F to 113°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude in the range of 1,800–5,000 m (5,905.51–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

Altitude

Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

Humidity

Operating humidity: 10% RH to 90% RH (non-condensing)

Storage humidity: 5% RH to 95% RH (non-condensing)

Surge protection

AC power connector

● Differential mode: ± 6 kV

● Common mode: ± 6 kV

Hybrid cable connector

● Differential mode: ± 2 kV

● Common mode: ± 6 kV

Fan

Fan speed adjustment

Fan fault alarm

Mean Time Between Failure (MTBF)

69.23 years at the operating temperature of 25°C (77°F)

Basic Function

Applicable software version

RGOS12.5(4)B0404P1 or later

Security and Authentication

ACL

IPv6 ACL

Time range-based ACL

Egress ACL based on a Layer 2 physical interface or aggregate interface

Ingress ACL based on a Layer 2 physical interface or aggregate interface

Egress ACL based on a Layer 3 interface

Ingress ACL based on a Layer 3 interface

CPP

CPU Protect Policy (CPP)

NFPP

Network Foundation Protection Policy (NFPP)

Routing and Switching

MAC

MAC address learning and aging

Static and dynamic MAC addresses

Source MAC address filtering

Limitation on the number of MAC addresses learned on an interface

Ethernet

Jumbo frame length: 1,518 bytes

IEEE802.1p and IEEE802.1Q

Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP)

VLAN

Interface-based VLAN assignment

Maximum number of SVIs: 1,000

Maximum number of VLANs: 4,094

VLAN ID range: 1 to 4,094

ARP

ARP entry aging, gratuitous ARP learning, and proxy ARP

Maximum number of ARP entries: 24,000

ARP check

IPv4 services

Static and dynamic IPv4 addresses

DHCP server and DHCP client

DHCP snooping

DNS client and DNS proxy

NTP server, NTP client, and SNTP client

IPv6 services

Static and dynamic IPv6 addresses.

Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping

DNSv6 client

NTPv6 server and NTPv6 client

IP routing

IPv4/IPv6 static routing

Maximum number of static IPv4 routes: 1,000

Maximum number of static IPv6 routes: 1,000

Static black hole routing

Multicast

Multicast-to-unicast conversion

IGMP snooping

Network Management and Monitoring

Network management

SNMPv1/v2c/v3

Fault detection and alarm

Network management platform

Web management (Eweb)

User access management

Console, Telnet, SSH, TFTP client, TFTP server, FTP server ,and FTP client

Regulatory Compliance

Regulatory compliance

EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 300 386, IEC 62368-1, and EN 62368-1
