Stock Code: POE-E201

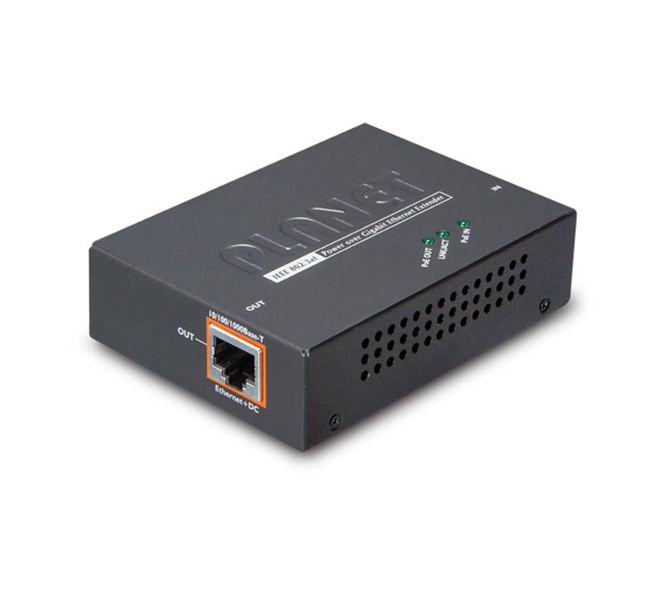

Long Distance 802.3at PoE+ and Gigabit Data Extension Solution
PLANET POE-E201 is a simple extender which extends both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 500m.
No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E201 is designed as the extender to transmit both Gigabit Ethernet data and 802.3af/at PoE power over another distance of 100m. By daisy-chaining multiple POE-E201s, distance can be tripled or quadrupled to meet your requirements.
With its ability to provide 802.3af/at PoE and Gigabit Ethernet data extension, the POE-E201 is an ideal networking solution for service providers, campuses and public areas. It enables you to centrally manage the power easily, efficiently and cost-effectively no matter now remote the location is.
Plug and Play, and Easy Cabling Installation
The POE-E201 Gigabit 802.3af/at PoE Extender is quite easy to be installed by the simple plug and play configuration. It is used between a power source equipment (PSE) and a powered device (PD).
The POE-E201 injects power to the PD without affecting the data transmission performance. The POE-E201 offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters. This Gigabit 802.3af/at PoE Extender, designed in a compact box, features 2 RJ45 ports, of which the "PoE IN" port functions as PoE (Data and Power) input and the "PoE OUT" port on the other side functions as PoE (Data and Power) output. The "PoE OUT" port is also the power injector to transmit DC voltage via the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and a PD.
