    Edge-Core

    In-Wall Access Point

    Stock Code: ECW100

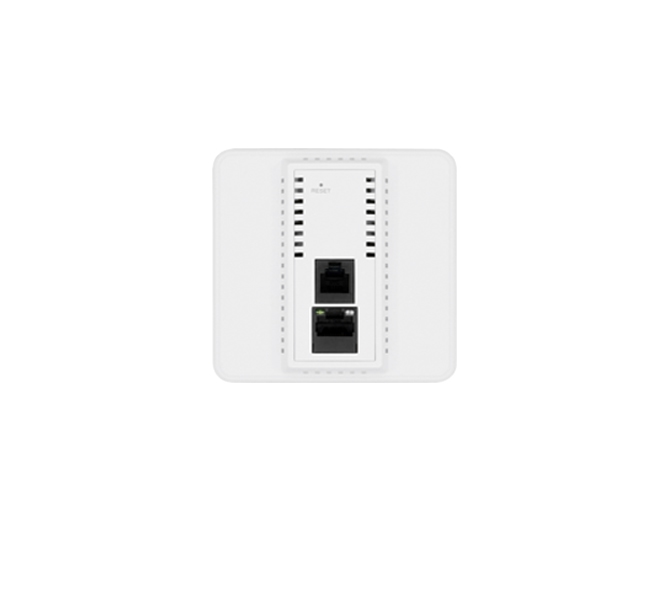

    The Edgecore ECW100 is a concurrent dual-band 802.11ac in-wall access point designed specifically for enhancing your traditional Ethernet/telephone outlets with Wi-Fi capabilities. It provides a Gigabit LAN port for your network devices and a pass-through telephone port for supporting telephone, modems and ADSL connections. Featuring two 2x2 MIMO radios, the ECW100 can simultaneously support up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands respectively.

    When ECW100 is deployed and centrally managed by Edgecore EWS Controller, additional value-added applications such as bandwidth control, user authentication, and captive portals can be used to provide an ideal solution for all types of businesses.

    Enterprise-grade AP Functionality

    Up to 8 ESSIDs per Radio
    Configurable Connectivity Thresholds
    Dynamic Channel Selection
    Seamless/Fast Roaming
    Multicast to Unicast Conversion
    802.11e/WMM
    802.11u
    802.1p/DSCP
    Advanced Wi-Fi Securit

    VPA2 - Enterprise with 802.1X Authentication
    802.1Q VLAN Tagging
    Layer 2 Firewall
    Station Isolation
    MAC ACL
    DHCP Snopping
    WPA / WPA2 Security with AES Encryption
    Detailed User Conneectivity Statistics
    Configurable Trusted Wireless Interfaces
    Secure AP Mounting Mechanisms
