Stock Code: IPOE-171-60W
Advanced Industrial 802.3bt Ultra PoE Network Solution

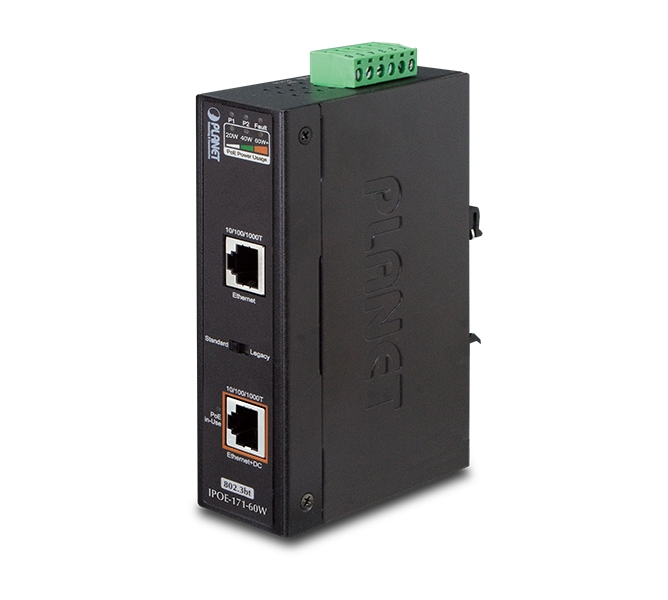

PLANET IPOE-171-60W is a Single-Port, Industrial 802.3bt Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables.
It is designed specifically to meet the demand for growing higher power required network equipment such as:
The IPOE-171-60W delivers the Ethernet digital data with DC power over the twisted-pair cables as a 60-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the IPOE-171S, will separate the digital data and the power into three optional outputs (12V/24V DC) with distance up to 100 meters.
60 watts of Power over 4-pair UTP
The IPOE-171-60W and IPOE-171S Ultra PoE solutions use the same cabling standard such as IEEE 802.3af/at PoE. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.
|
PoE Standard
|
IEEE 802.3af
(802.3at Type 1) |
IEEE 802.3at
(802.3at Type 2) |
IEEE 802.3bt
(802.3at Type 3) |
|
Maximum Power delivered by PSE
|
15.4 watts
|
30 watts
|
60 watts
|
|
Power Available at PD
|
12.95 watts
|
25.5 watts
|
51 watts
|
|
Voltage Range
|
48V
|
50~57V
|
50~57V
|
|
Twisted-pair Used
|
2-pair
|
4-pair
|
|
|
Supported Modes
|
End-span or Mid-span
|
End-span + Mid-span
|
|
|
Supported Cabling
|
Cat. 3/5/5e/6
|
Cat. 5e/6
|
|
Intelligent LED Indicator for Power Input and Real-time PoE Usage
The IPOE-171-60W helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. “Power Input” allows user to know the status of power input. “PoE Power Usage” displayed on the panel of the IPOE-171-60W has three LED indicators of different power usages. Via the power usage LED, the IPOE-171-60W enables the administrator to monitor the status of the power usage of the connected PDs in real time.
High compatibility and Compact Size Design
It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for industrial users to own it. Besides, the IPOE-171-60W comes in compact housing, and provides two DC redundant power inputs, two power LEDs, fault LED and PoE-in-use LED. Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the front panel.
Moreover, the IPOE-171-60W, when switched to the legacy mode, provides power to those PD devices which do not fully follow the IEEE 802.3af/at/bt standard. It is helpful to enhance the compatibility of IPOE-171-60W with other PDs.
Simply plug in the Ethernet cables and DC power wire, and the IPOE-171-60W is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software configuration.
Quick and Easy Cabling Installation for PoE Network Deployment
Backward compatible with both 802.3af/at PoE standards, the IPOE-171-60W allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The IPOE-171-60W frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.
Stable Operating Performance under Difficult Environments
Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-171 series will be one of the ideal solutions that provide a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets. The IPOE-171 series can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-171 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for efficient use of cabinet space.
