Dahua

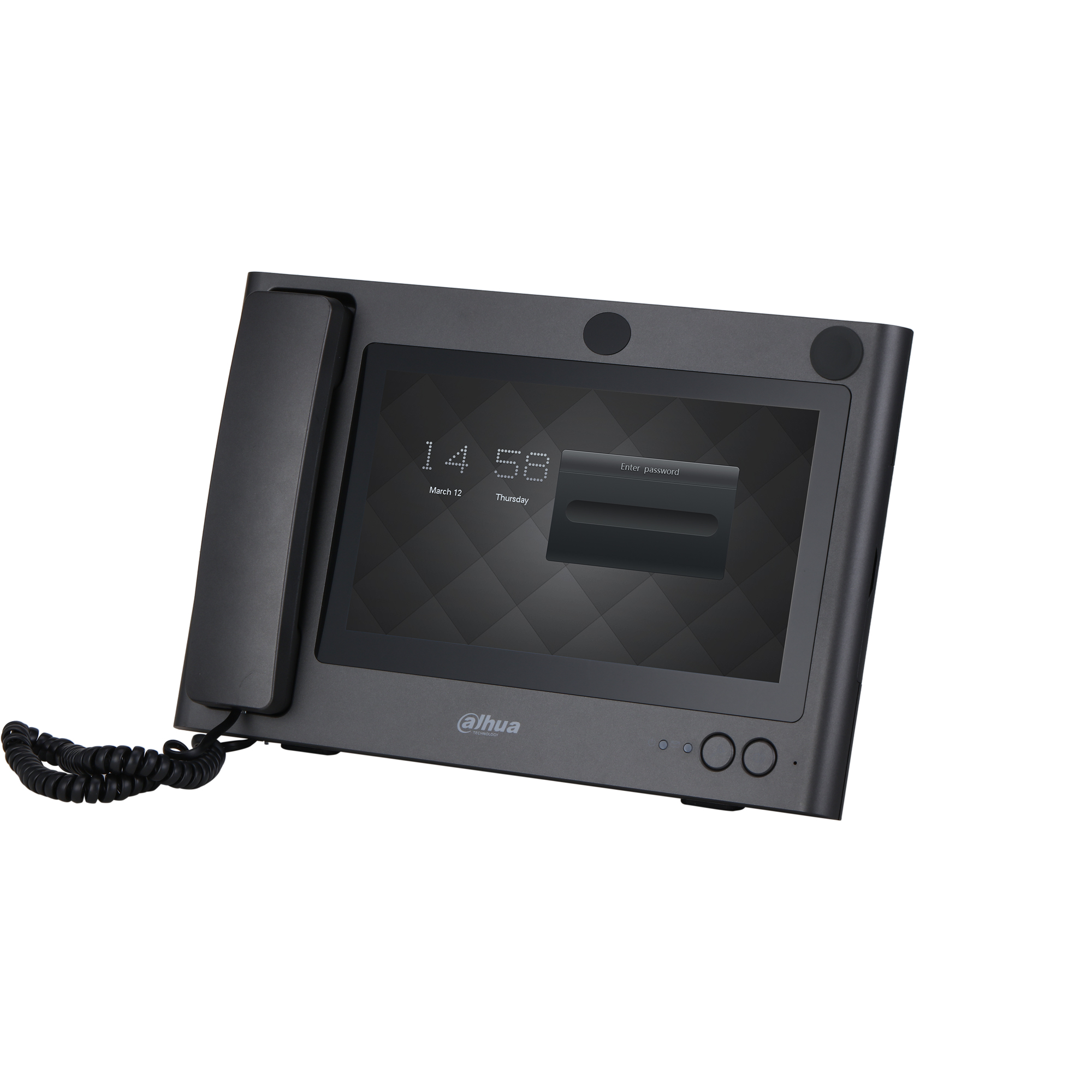

Master Station

Name: Master Station
Brand: Dahua
SKU: VTS5340B

Stock Code: VTS5340B

Monitors four video channels on one screen and runs the call

A master intercom station that sits on a desk and creates no separate installation work. Its 10-inch capacitive screen shows four 720p channels at once, and the call runs either handsfree or through the handset.

10 inchDisplay

1024 × 600Resolution

4 channelsMonitoring

64 GBStorage

1000 MbpsNetwork

12 VDCPower input

Key specifications

10inch

Capacitive panel

A 1024 × 600 TFT display that works alongside mechanical buttons.

4channels

Split-screen monitoring

Splits the screen into four and shows four 720p channels at once.

64GB

Micro SD storage

Writes recordings and snapshots to the card and keeps them locally.

1000Mbps

Self-adaptive network port

The RJ-45 port picks its own link rate and climbs to 1000 Mbps.

IN DAILY USE

Sits straight on the deskIt goes on a desktop right out of the box, and the bracket angle follows the way it is used.

Handsfree or handsetThe call runs through the speaker and moves to the handset when privacy matters.

Local recordingIt writes video and snapshots to the SD card throughout monitoring and calls.

System
Main Processor	Embedded Processor
Operating System	Embedded Linux operating system
Button Type	Mechanical
Network Protocol	IPv4; SIP; RTSP; RTP; TCP; UDP
Basic
Screen Type	Capacitive Screen
Display	10 inch TFT display
Screen Resolution	1024 (H) × 600 (V)
Audio Encoding	G.711a; G.711u; PCM
Audio Input	2
Audio Output	Built-in speaker; handset speaker
Audio Mode	Full duplex communication
Audio Enhancement	Echo suppression and cancellation / digital noise reduction
Audio Bit Rate	16KHz, 16Bit
Housing Material	PC+ABS
Function
Communication	Full digital
Displayed in Split Screen	4 channel 720P videos can be displayed on the 4-section screen
Storage	Micro SD card (max capacity is 64GB)
Port
HDMI	1
Network	1 RJ-45 100Mbps/1000Mbps self-adaptive
General
Color	Titanium grey
Power Supply	DC 12V/2A
Power Adapter	Provided
Installation	Installed on the desk
Certifications	CE, FCC
Product Dimensions	344.97 mm × 224.6 mm × 64.42 mm (13.58" × 8.84" × 0.34")
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Operating Humidity	5%RH–90%RH (non-condensing)
Working Environment	Indoor
Operating Altitude	0 m–1300 m (0 ft–4265.09 ft)
Power Consumption	≤24W
Gross Weight	2.5 kg (5.51 lb)
