Turns an analog camera into an IP source that records on board

A single-channel video server; it converts the analog camera on its BNC input into an H.264, MPEG-4 or M-JPEG stream at 4CIF (D1) resolution. The Micro SD card slot keeps footage on the unit, and ONVIF compliance opens the door to recording software from other brands.

H.264 / MPEG-4 / M-JPEGVideo Compression

4CIF (D1)Video resolution

30/25 fpsFrame rate

32 GBMemory Card Support

10/100 Mbps RJ-45Network interface

0 ~ 40 °COperating Temperature

Key features

1channel

Moves the analog camera onto the network

Opens the camera on the BNC input to streaming across the network.

30/25fps

Full frame rate

Holds the NTSC and PAL frame rate at every resolution.

32GB

Local recording

The Micro SD/SDHC card keeps footage on the unit when the network drops.

8privacy masks

Blocked regions

Leaves selected regions of the image out of the stream and the recording.

20clients

Simultaneous access

Distributes the live image to every user connected at once.

IN DAILY USE

Two-way audioCarries an external microphone input and an audio output, so the operator talks to whoever is in the camera area.

Alarm and pan/tilt wiringThe terminal block connects a door sensor and a relay, and the RS-485 interface drives a pan/tilt scanner.

Secure accessApplies password protection and IP address filtering, and encrypts data over HTTPS.

Usage AreaFactory and production line monitoring·Office and building surveillance·Moving analog DVR systems to the network

Video Compression	H.264 / MPEG-4 / M-JPEG
Video Resolution	4CIF (D1), CIF, QCIF
Frame Rate	30/25 (NTSC/PAL) fps at all resolutions
Image Adjustment	AE, AWB 3D Noise Reduction Color, brightness, sharpness, contrast Mirror / Flip 8 Privacy Masks Text, time and date overlay
Streaming	Multiple profile streaming simultaneously Streaming via UDP, TCP or HTTP / HTTPS M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (MPEG4 / H.264) ROI
Audio
Audio Streaming	Two-way Audio
Audio Compression	RTSP: G.711 64kbps, G.726 32kbps 3GPP: AMR
Microphone	External microphone input
Audio Output	Adjustable audio output gain
Network and Configuration
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Protocol	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users	20 simultaneous client remote viewing
System Integration
Application Programming Interface (API)	Open API for software integration ONVIF Compliant
Alarm Triggers	Intelligent video motion detection, audio detection and external input
Alarm Events	File upload to NAS via FTP, Samba, SD card or email Notification via email, HTTP and TCP External activation output Audio alerting output Pre-alarm and post-alarm buffering
Environmental Features
Power Requirement	5V DC, 2A
Power Consumption	4W (Max.)
Operating Temperature	0 ~ 40 °C
Operating Humidity	20 ~ 80% (non-condensing)
Weight (including LENS)	215 g
Dimension (W × D × H)	94 × 70 × 26 mm
Emission	CE, FCC
Connectors	10/100Mbps Ethernet, RJ-45 BNC connector, 75 ohm impedance DC power jack Terminal block for 1 alarm input and 1 output RS-485 interface for pan/tilt scanners control External MIC input Composite video / audio output Micro SD/SDHC card (Max. 32 GB, Class 6) Factory default reset


Video Compression

H.264 / MPEG-4 / M-JPEG

Video Resolution

4CIF (D1), CIF, QCIF

Frame Rate

30/25 (NTSC/PAL) fps at all resolutions

Image Adjustment

AE, AWB
3D Noise Reduction
Color, brightness, sharpness, contrast
Mirror / Flip
8 Privacy Masks
Text, time and date overlay

Streaming

Multiple profile streaming simultaneously
Streaming via UDP, TCP or HTTP / HTTPS
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)
ROI

Audio

Audio Streaming

Two-way Audio

Audio Compression

RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR

Microphone

External microphone input

Audio Output

Adjustable audio output gain

Network and Configuration

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Protocol

IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP
Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Security

Password protection, IP address filtering, HTTPS encrypted data transmission, user access log

Users

20 simultaneous client remote viewing

System Integration

Application Programming Interface (API)

Open API for software integration
ONVIF Compliant

Alarm Triggers

Intelligent video motion detection, audio detection and external input

Alarm Events

File upload to NAS via FTP, Samba, SD card or email
Notification via email, HTTP and TCP
External activation output
Audio alerting output
Pre-alarm and post-alarm buffering

Environmental Features

Power Requirement

5V DC, 2A

Power Consumption

4W (Max.)

Operating Temperature

0 ~ 40 °C

Operating Humidity

20 ~ 80% (non-condensing)

Weight (including LENS)

215 g

Dimension (W × D × H)

94 × 70 × 26 mm

Emission

CE, FCC

Connectors

10/100Mbps Ethernet, RJ-45
BNC connector, 75 ohm impedance
DC power jack
Terminal block for 1 alarm input and 1 output
RS-485 interface for pan/tilt scanners control
External MIC input
Composite video / audio output
Micro SD/SDHC card (Max. 32 GB, Class 6)
Factory default reset

Internet Video Server, H.264/MPEG4/MJPEG, 3DNR, Micro SD, Video Output, 2-way Audio, DI/DO, IPv6, ONVIF

Datasheet

IVS-H125

Kullanım Kılavuzu

IVS-H125

Hızlı Kurulum Kılavuzu

IVS-H125

Sertifika

CE Belgesi

Fotoğraf

IVS-H125

Similar Products

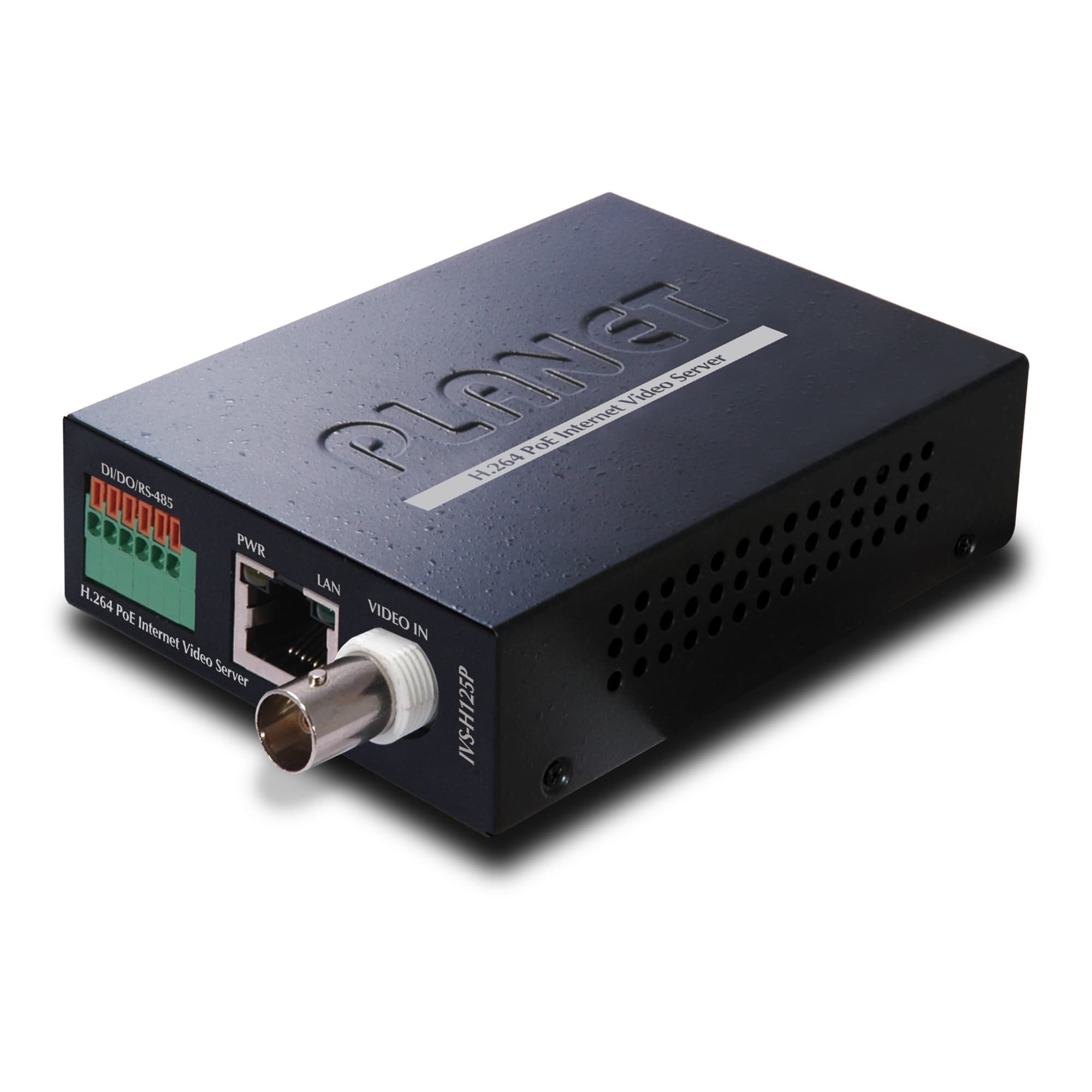

Internet Video Server, H.264/MPEG4/MJPEG, 3DNR, Micro SD, Video Output, 2-way Audio, DI/DO, IPv6, ONVIF, 802.3af POE, DC Power Jack, 12V/0.4A Out
