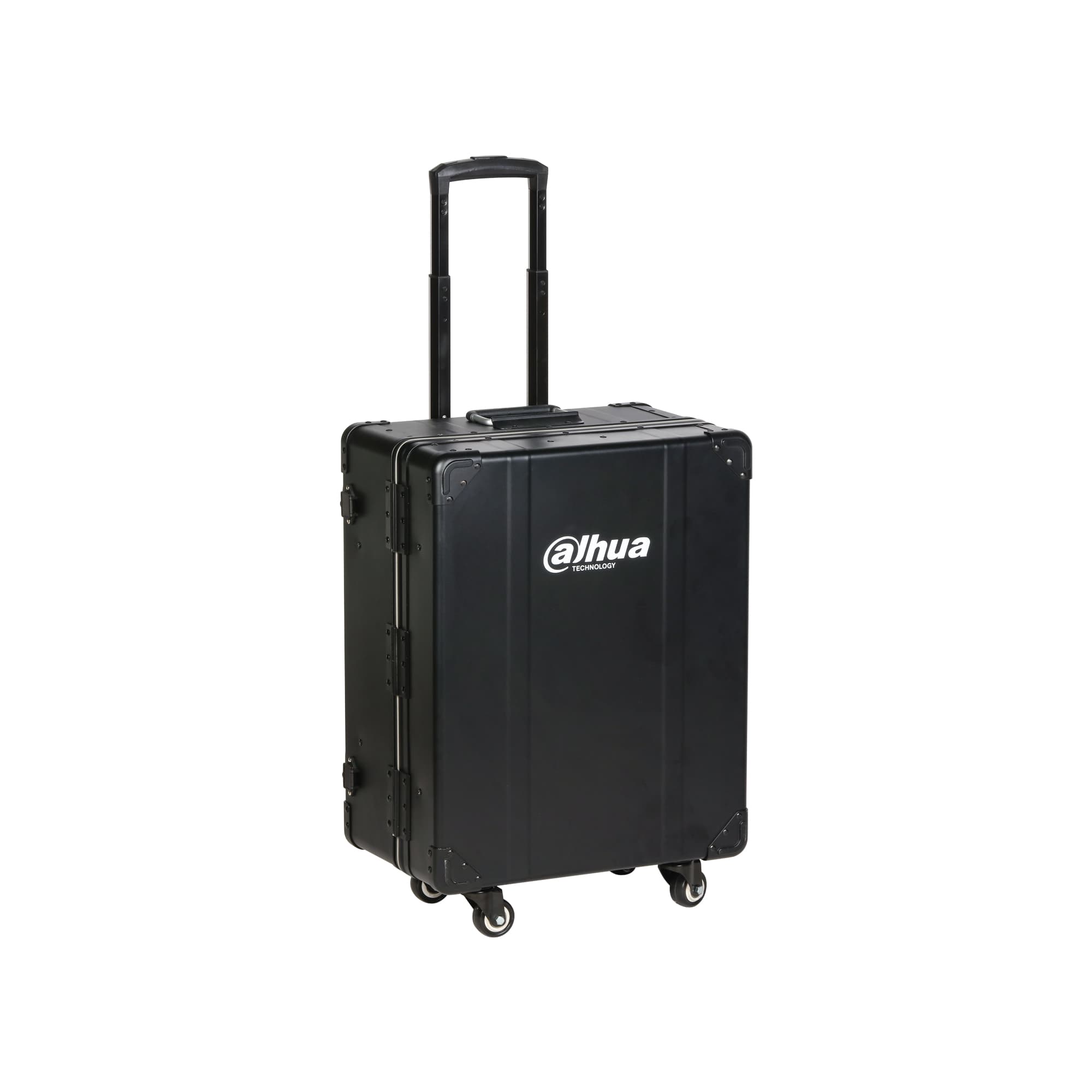

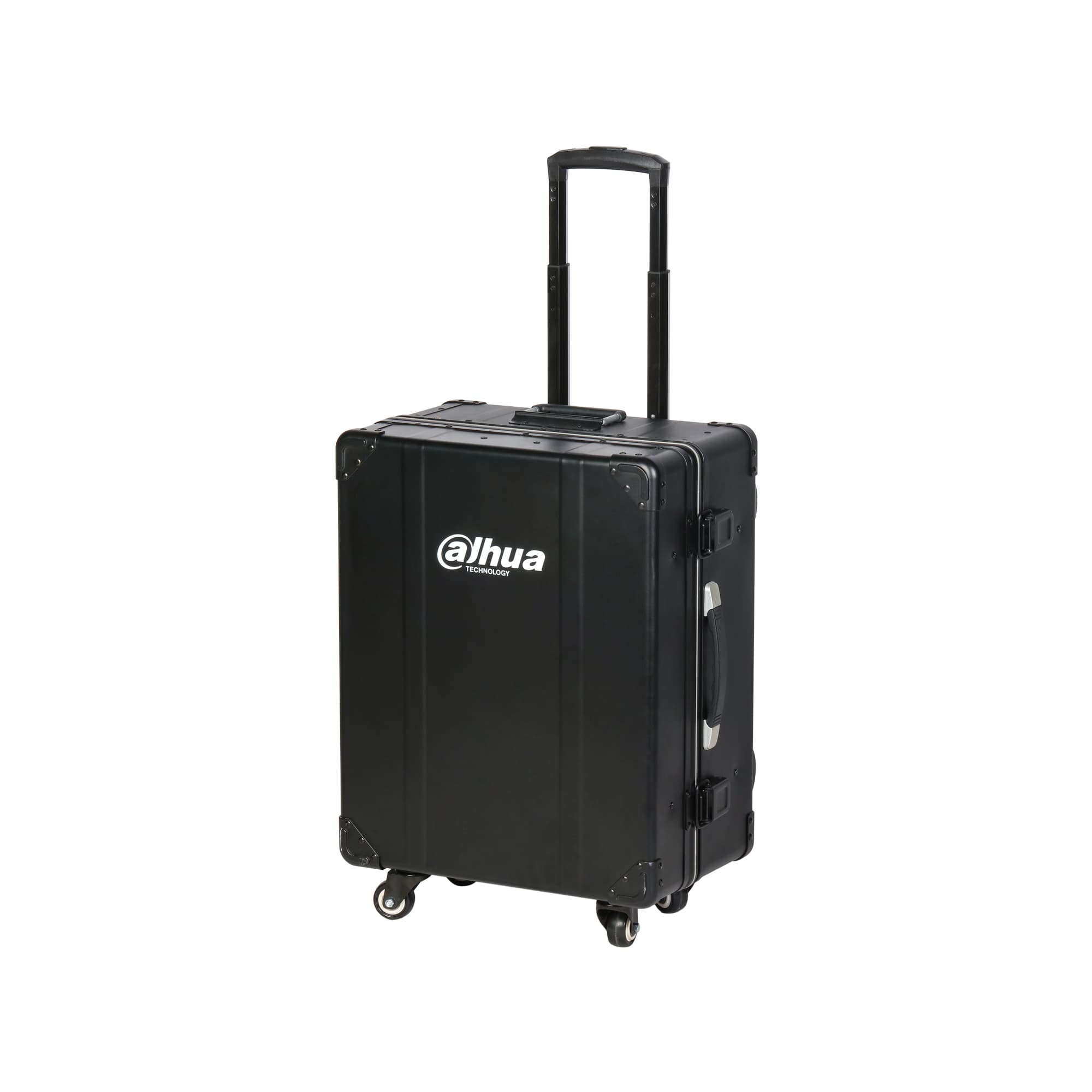

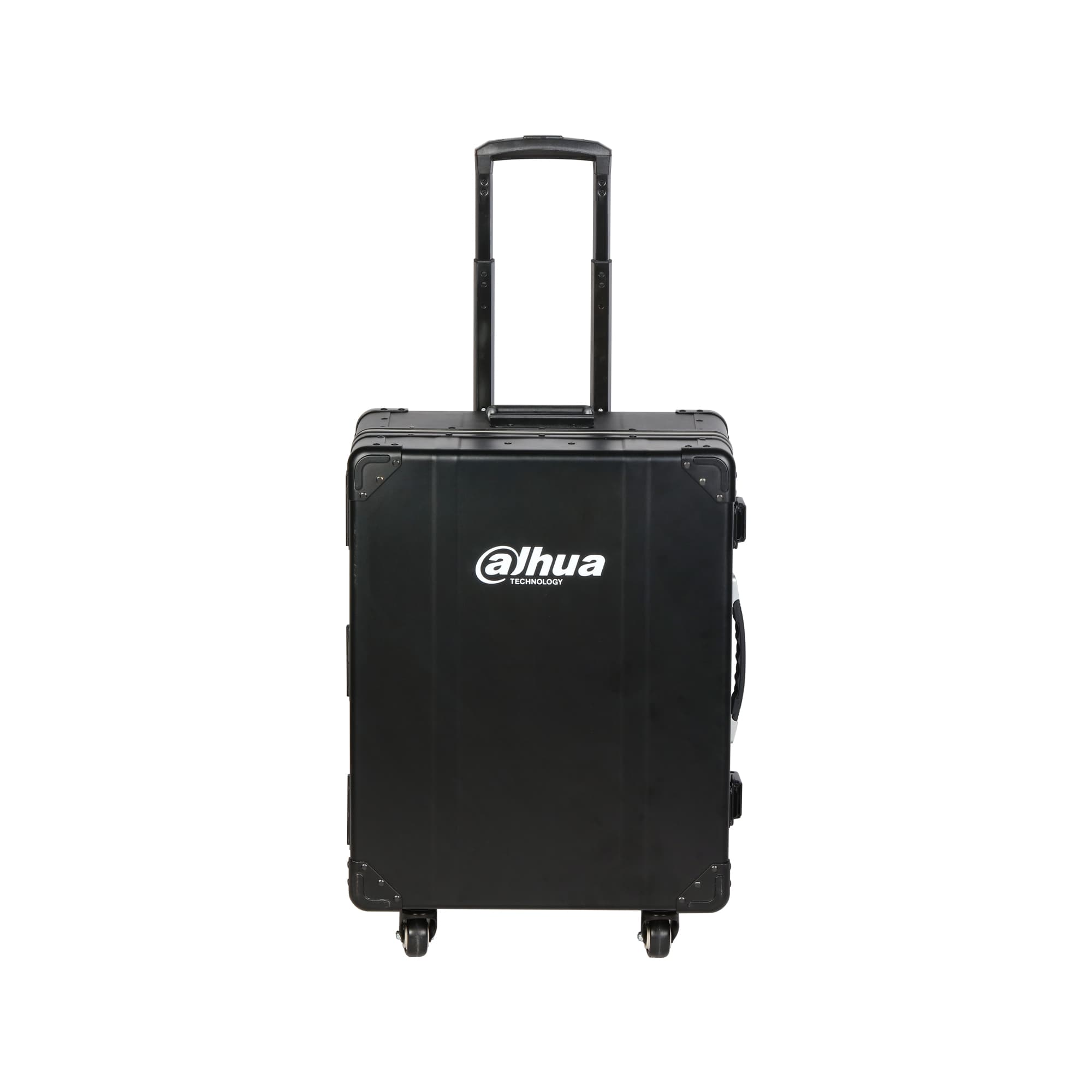

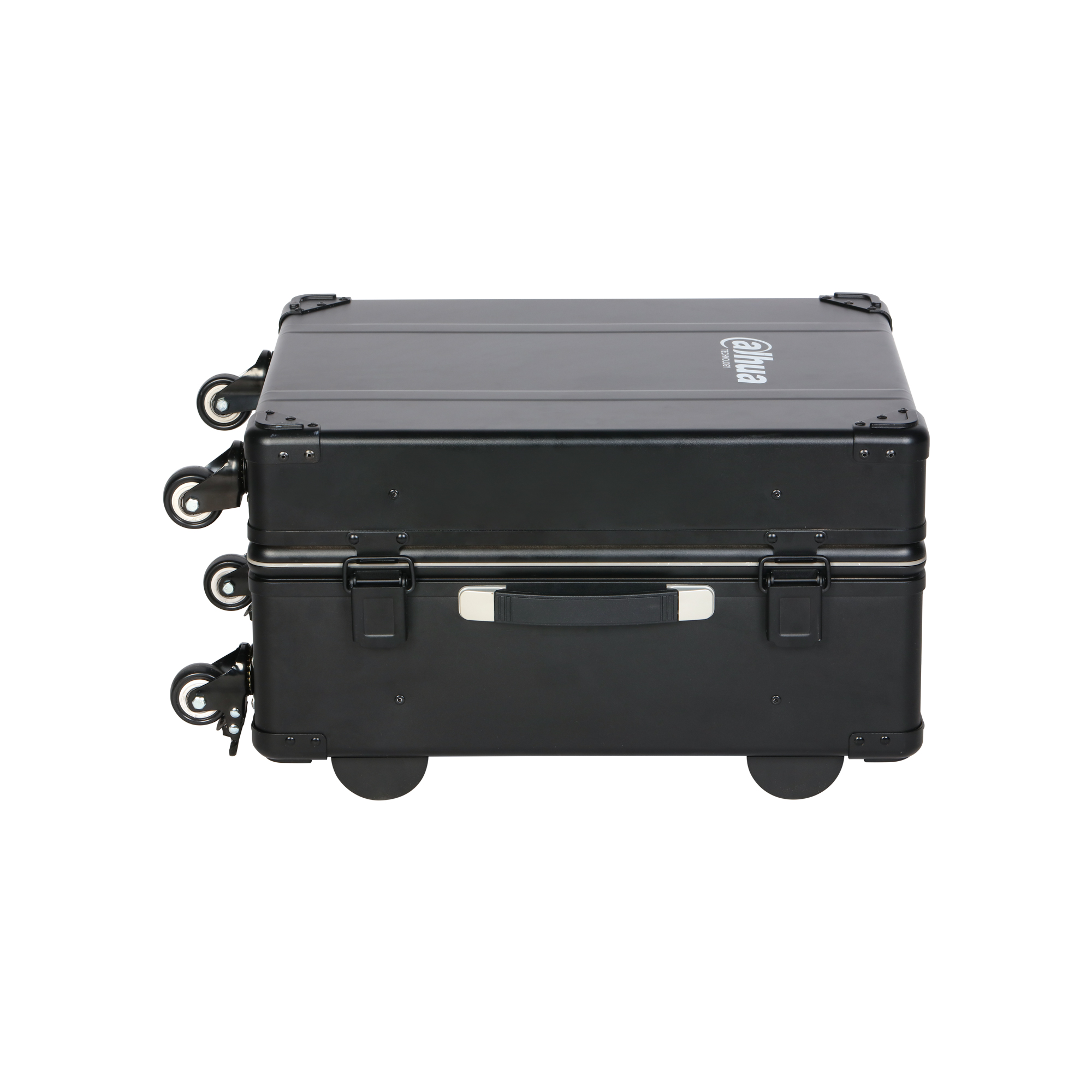

Demo set that presents an IP video intercom system in a single case

An aluminum alloy shell and an acrylic panel gather IP video intercom devices into one portable set. The hinged cover opening to 95° exposes the whole panel, while 4 braked wheels and a telescopic pull rod move the case through site visits.

Aluminum alloyCasing Material

602.0 mm × 421.4 mm × 311.5 mmProduct dimensions

20 kgLoad capacity

10.1 kgNet weight

95°Opening angle

-10 °C to +55 °COperating Temperature

Key features

Case and interior panelThe aluminum alloy shell and the acrylic panel hold the demo devices in place.

CoverThe hinge type cover exposes the whole panel at a 95° opening angle.

Handling4 wheels and the wheel braking system move the case and lock it where it stands.

Load and weightIt carries 20 kg of load; net weight is 10.1 kg and gross weight is 13.6 kg.

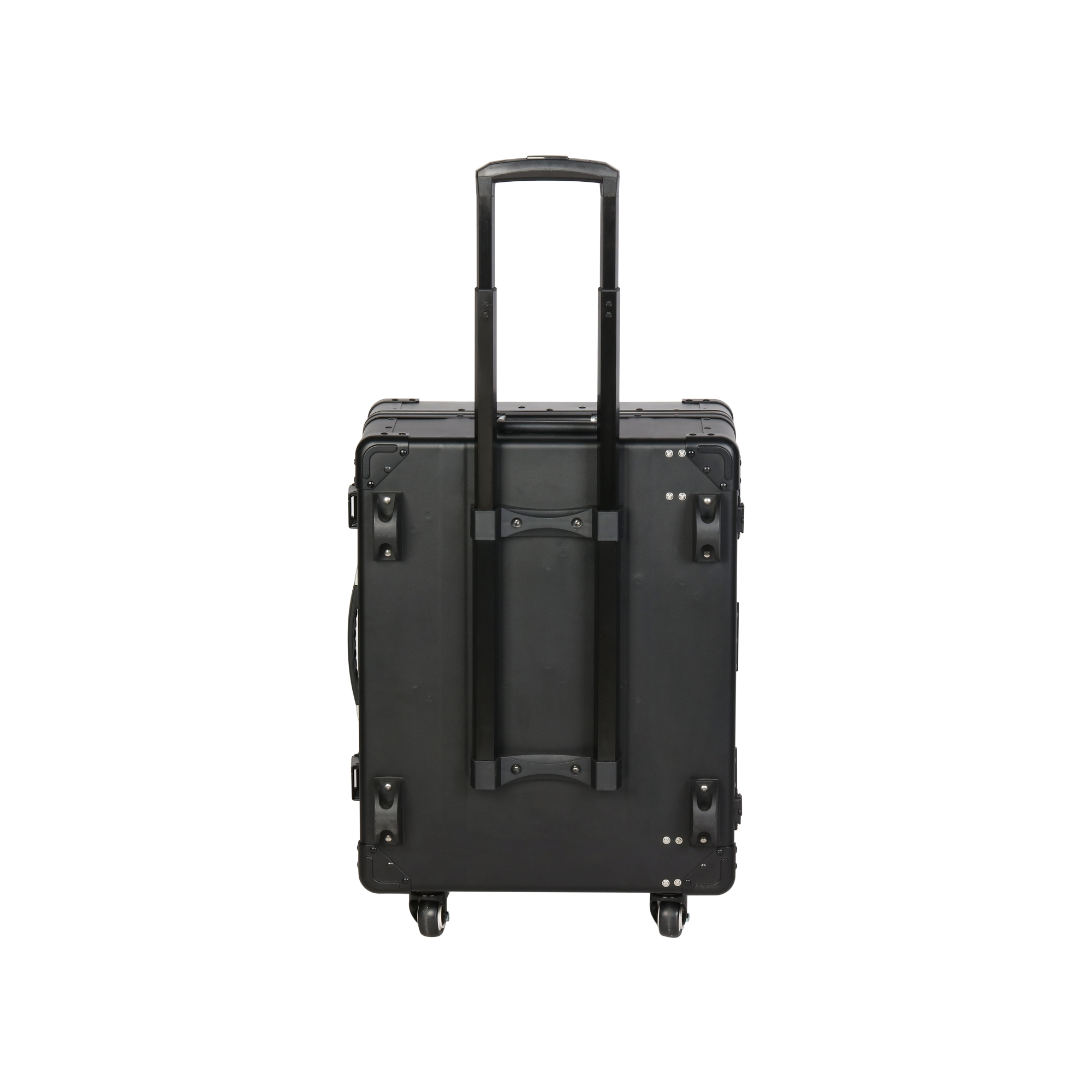

ProtectionA telescopic pull rod and anti-collision corner protection shield the shell during transport.

Operating conditionsIt runs between -10 °C and +55 °C at 10% to 90% RH, non-condensing.

Technical Specification: Professional Demo Case

Casing Material / Interior

Aluminum alloy / Acrylic panel

Placement / Opening

Horizontal / Hinge type (95° Opening Angle)

Movement / Braking

4 wheels / Wheel Braking System (Yes)

Load Capacity

20 kg (44.09 lb)

Product Dimensions

602.0 mm × 421.4 mm × 311.5 mm

Weight Info

Net: 10.1 kg / Gross: 13.6 kg

Design / Protection

Telescopic pull rod, Anti-collision corner protection

Operating Conditions

-10 °C to +55 °C / 10%-90% RH (Non-condensing)
