Stock Code: VCS-SPOE20
| Speaker | |
|---|---|
| Max. Sound Pressure Level | 80 dB |
| SNR | ≥75 dB |
| Frequency Response | 100 Hz – 18 kHz |
| Coverage Pattern | H: 70°; V: 100° |
| Speaker Output | 20 W |
| Interface | |

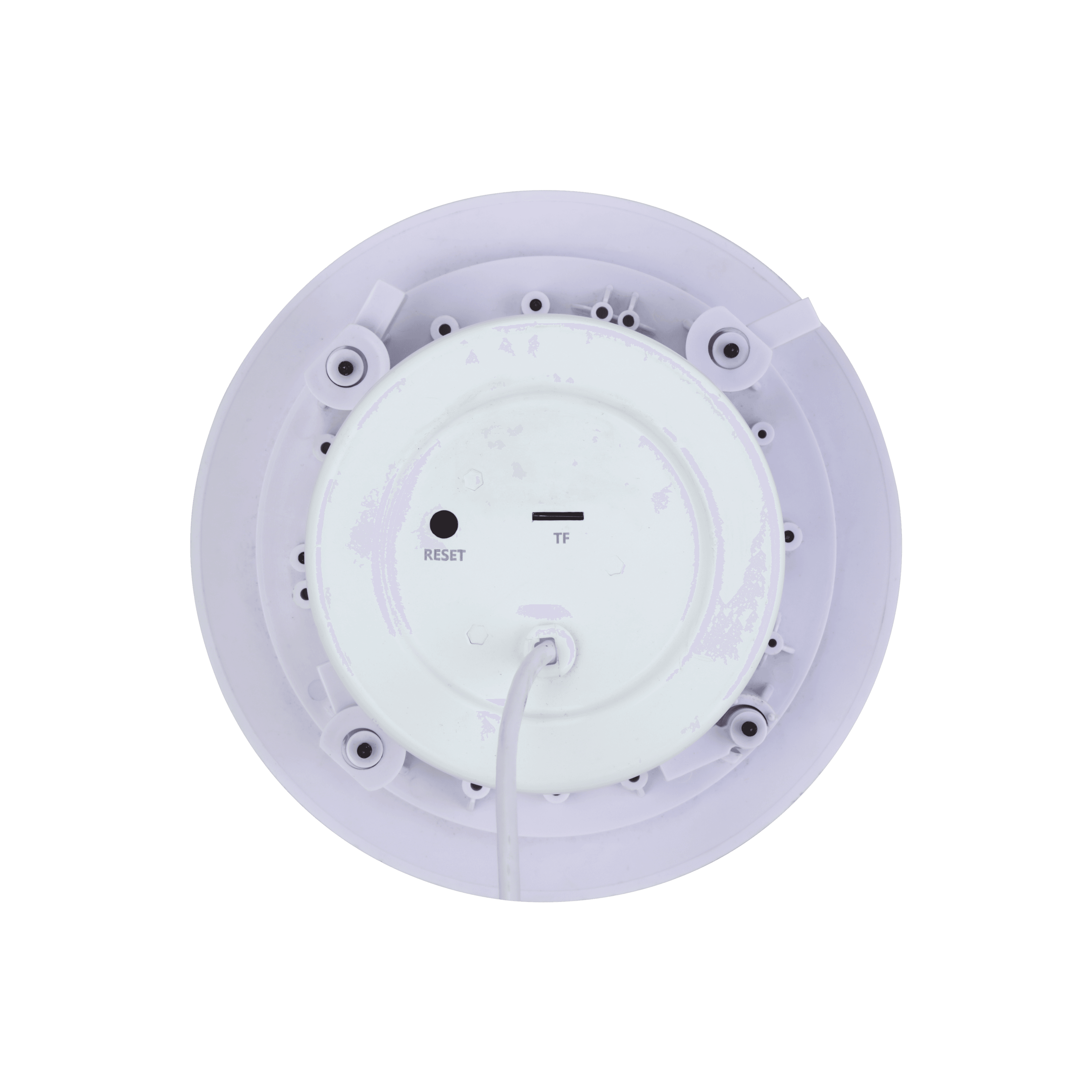

| TF Card Interface | Supports TF card storage |
| 24V Auxiliary Input | 24 VDC, PoE power supply |
| Network | |
| Network Port | 1 × RJ-45 port |
| Network Protocol | TCP, UDP, ARP, ICMP, IGMP, DHCP, HTTP, SIP, ONVIF |
| General | |
| Audio Protocol | MP3, G.711a/u |
| Storage | 512 MB and TF card |
| Power Input | 24 VDC, 1 A, 24 W; PoE IEEE 802.3at, Class 4 |
| Power Consumption | 20 W |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity | 60% – 95% (RH), non-condensing |
| Protection Level | IP6X |
| Certifications | CE EMC, CE LVD |
| Product Dimensions | 203 mm × 203 mm × 132 mm (7.99" × 7.99" × 5.20") (L × W × H) |
| Packaging Dimensions | 235 mm × 235 mm × 170 mm (9.25" × 9.25" × 6.69") (L × W × H) |
| Net Weight | 1.4 kg (3.09 lb) |
| Gross Weight | 1.9 kg (4.19 lb) |
