IP30 Slim Type 5-Port Industrial Fast Ethernet Switch (-40 to 75 degree C)

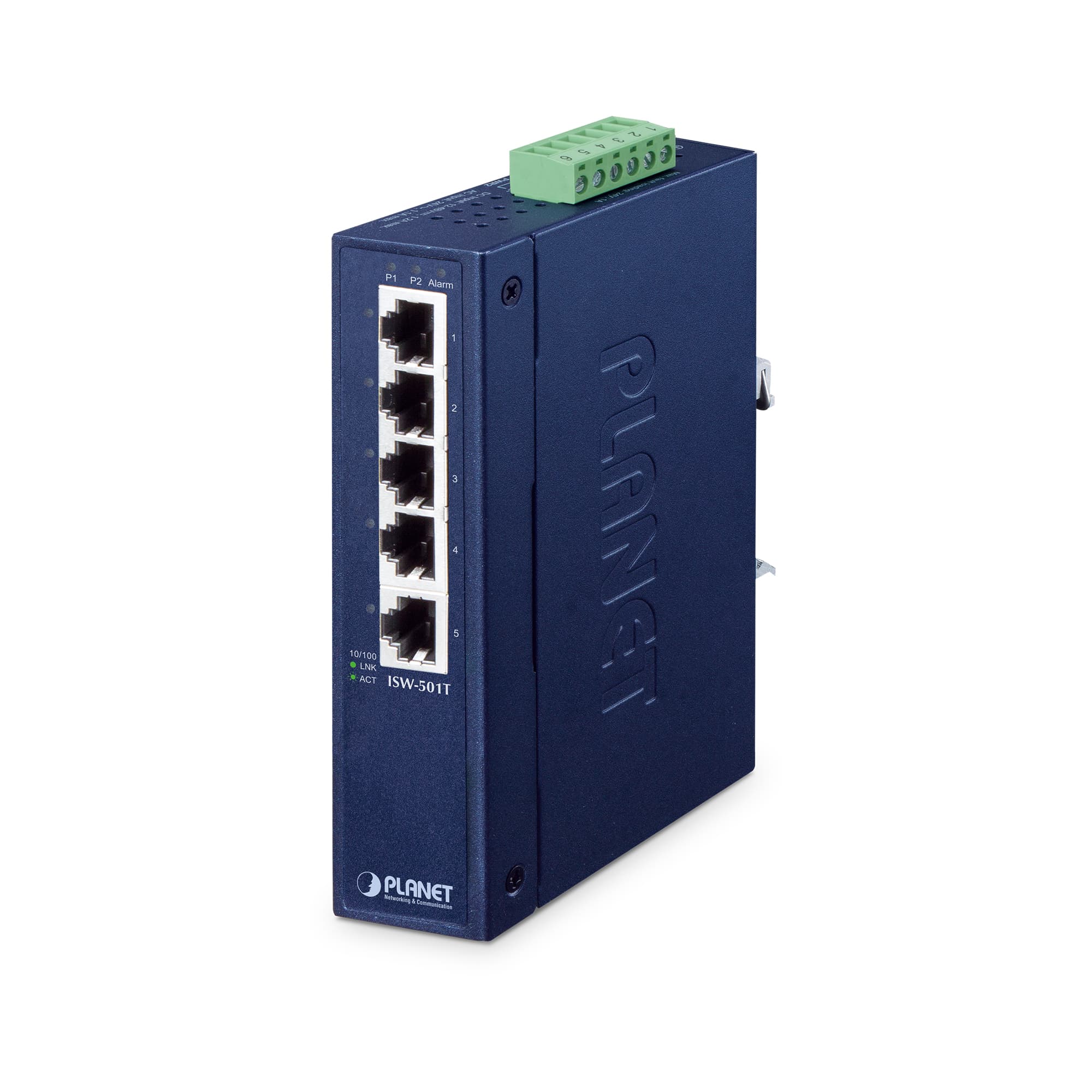

Name: IP30 Slim Type 5-Port Industrial Fast Ethernet Switch (-40 to 75 degree C)
Brand: Planet
SKU: ISW-501T

Stock Code: ISW-501T

Five Fast Ethernet ports sit on the rail in a slim IP30 body.

A slim five-port industrial Fast Ethernet switch built for a wide operating temperature range. The IP30 metal case works in panels where electrical noise runs high, while the redundant power input and the fault alarm make an outage visible.

510/100BASE-TX copper ports

1 Gbpsswitching capacity

IP30protection grade

-40~75 °Coperating temperature

12~48V DCpower input

Key features

5ports

Fast Ethernet copper links

The 10/100BASE-TX RJ45 ports detect the link type through auto-MDI/MDI-X.

1Gbps

Non-blocking switching

A throughput of 0.74 Mpps keeps packet transfer at wire speed.

6KV

ESD and EFT protection

It guards the Ethernet lines and the power input against 6KV DC discharge.

1.6watts

Low consumption

Heat dissipation stays within 5.4 BTU.

400g

Slim IP30 case

The 135 x 87 x 32 mm metal body sits on a DIN rail.

IN DAILY USE

Redundant power inputThe terminal block accepts a 12~48V DC or 24V AC source, and reverse polarity protection tolerates a wrong connection.

Fault alarmThe relay output reports a power failure and carries a 3A @ DC 30V load.

Rail or wall mountingThe DIN rail kit and wall-mount ear leave flexible placement in the cabinet.

ApplicationsFactory and production floors·In-panel and in-cabinet networks·Field data collection points

Hardware Specifications
10/100BASE-TX Auto MDI/MDI-X Ports	5
LED Indicators	3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Green: Power Fault 1 x LED for each Copper Port: Green: 10/100 LNK/ACT
Enclosure	IP30-rated metal case
Dimensions (W x D x H)	135 x 87 x 32 mm
Weight	400 g
ESD Protection	6KV DC
EFT Protection	6KV DC
Power Requirements	12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / Dissipation	1.6 watts / 5.4BTU
Installation	DIN-rail kit and wall-mount ear
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 3A @ DC 30V
Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	1K
Buffer Memory	Embedded 448K bits packet buffer
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric	1Gbps
Throughput (packet per second)	0.74Mpps
Network Cables	10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75°C Storage: -40~75°C
Humidity	Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)

Datasheet

ISW-501T

1.0pdf6/4/2016
