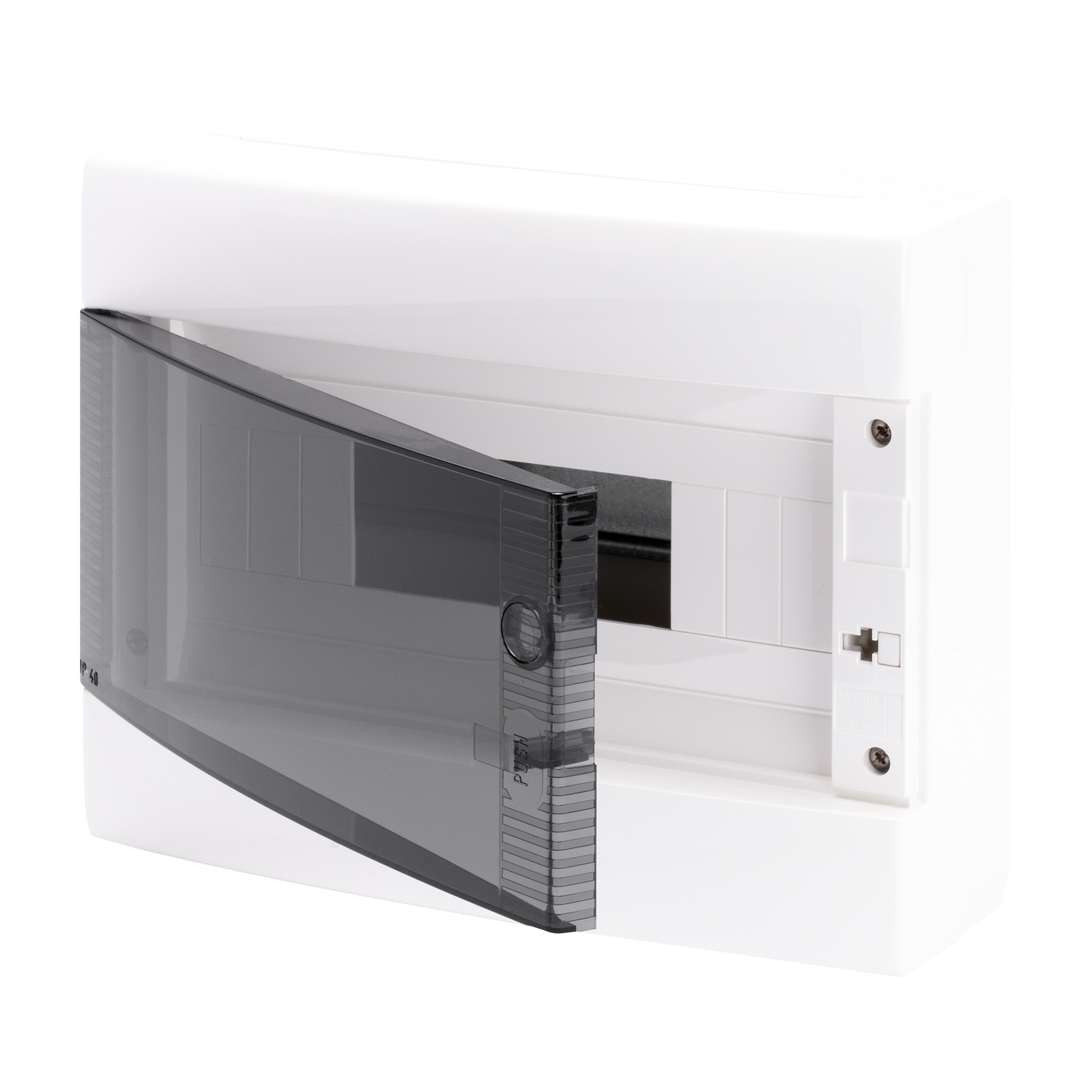

Collects fuses and circuit breakers in a decorative 8-module surface box.
A decorative distribution enclosure for indoor surface mounting. The body houses an 8-module row of protective devices, closes against dust at IP40 and is made of halogen-free material.
IP40Protection Grade
8Number of Modules
125 ANominal Current
200x180x100 mmOuter Dimensions
-25 +60 °COperating Temperature
White RAL 9016Color
Key features
8-module interiorThe body holds 8 modules and disperses a heat load of up to 15 W.
Halogen-free housingThe housing material is halogen-free in compliance with EN 60754-2.
IK08 impact resistanceThe enclosure withstands mechanical impact at IK08 level.
Class II insulationIt carries Class II insulation according to the IEC 61140 standard.
Voltage ratingsIt suits a rated voltage of 400 V and an insulation voltage of 750 V.
