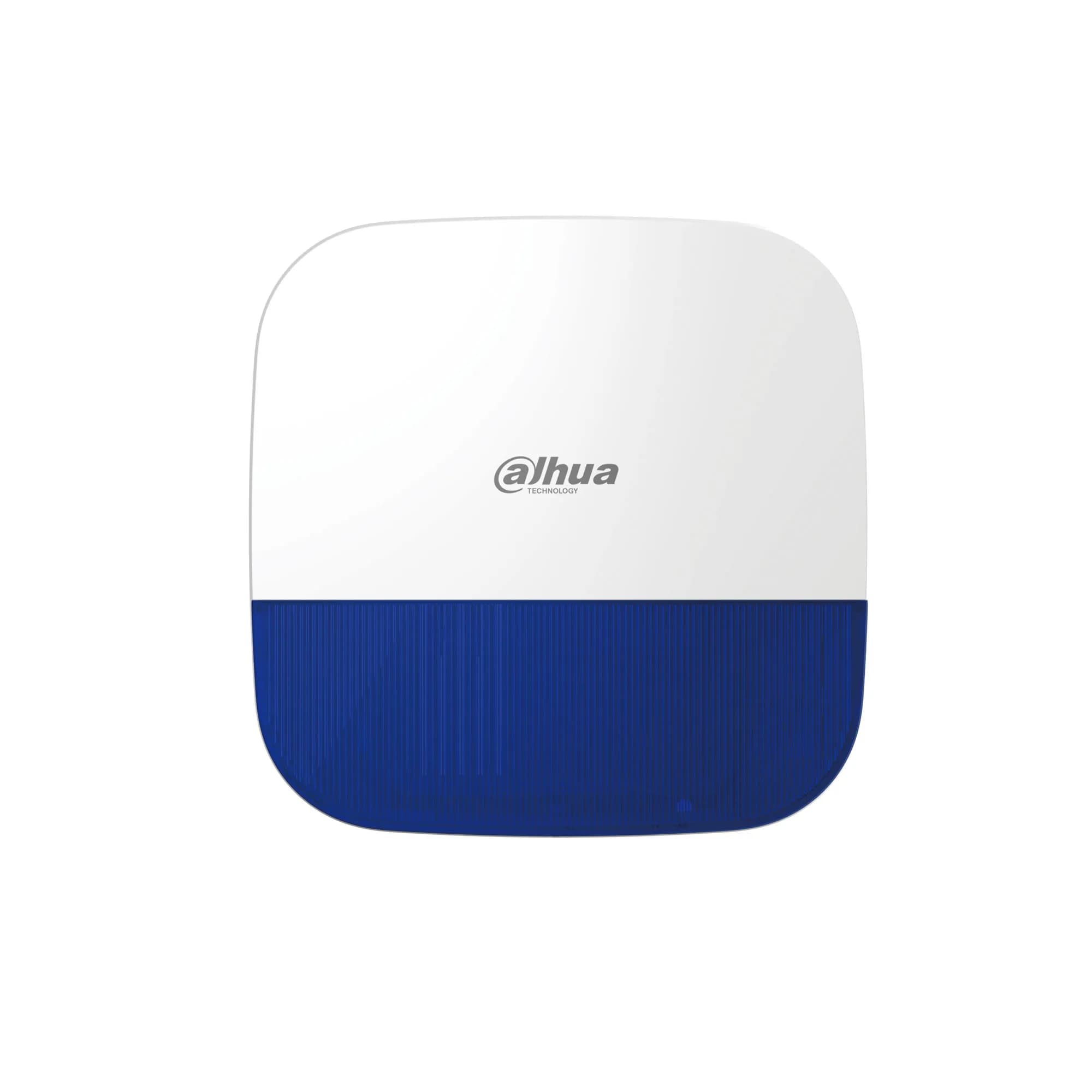

Stock Code: ARA13-W2(868)
| Function | |
|---|---|
| Indicator Light | 1 × green pairing indicator; 12 × alarm LED groups |
| Button | 1 × power switch |
| Buzzer | 1 × buzzer |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Battery Level Display | Yes |
| Tamper | Yes |
| Signal Strength | Signal strength detection |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Encryption Mode | AES128 |
| General | |
| Power Supply Mode | Battery (default), 12 VDC |
| Battery Model | CR123A |
| Battery Life | 4 CR123A batteries can be used for 3.4 years (if triggered fortnightly and the alarm sounds for 120 s each time with a battery efficiency of 80%) |
| Operating Temperature | –25 °C to +60 °C (–13 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 200 mm × 200 mm × 52.5 mm (7.87" × 7.87" × 2.07") (L × W × H) |
| Packaging Dimensions | 255 mm × 239 mm × 64 mm (10.04" × 9.41" × 2.52") (L × W × H) |
| Net Weight | 610 g (1.34 lb) |
| Gross Weight | 920 g (2.03 lb) |
| Installation | Wall mount |
| Casing | PC + ABS |
| Protection | IP65 |
| Certifications | CE |
| Technical | |
| Scenario | Outdoor |
| Operating Current | 92 µA |
| Alarm Current | 420 mA |
| Sound and Light Alarm | Light alarm and multiple alarm sounds, including fire, medical, intrusion, panic, and more |
| Sound Pressure | 110 dB |
