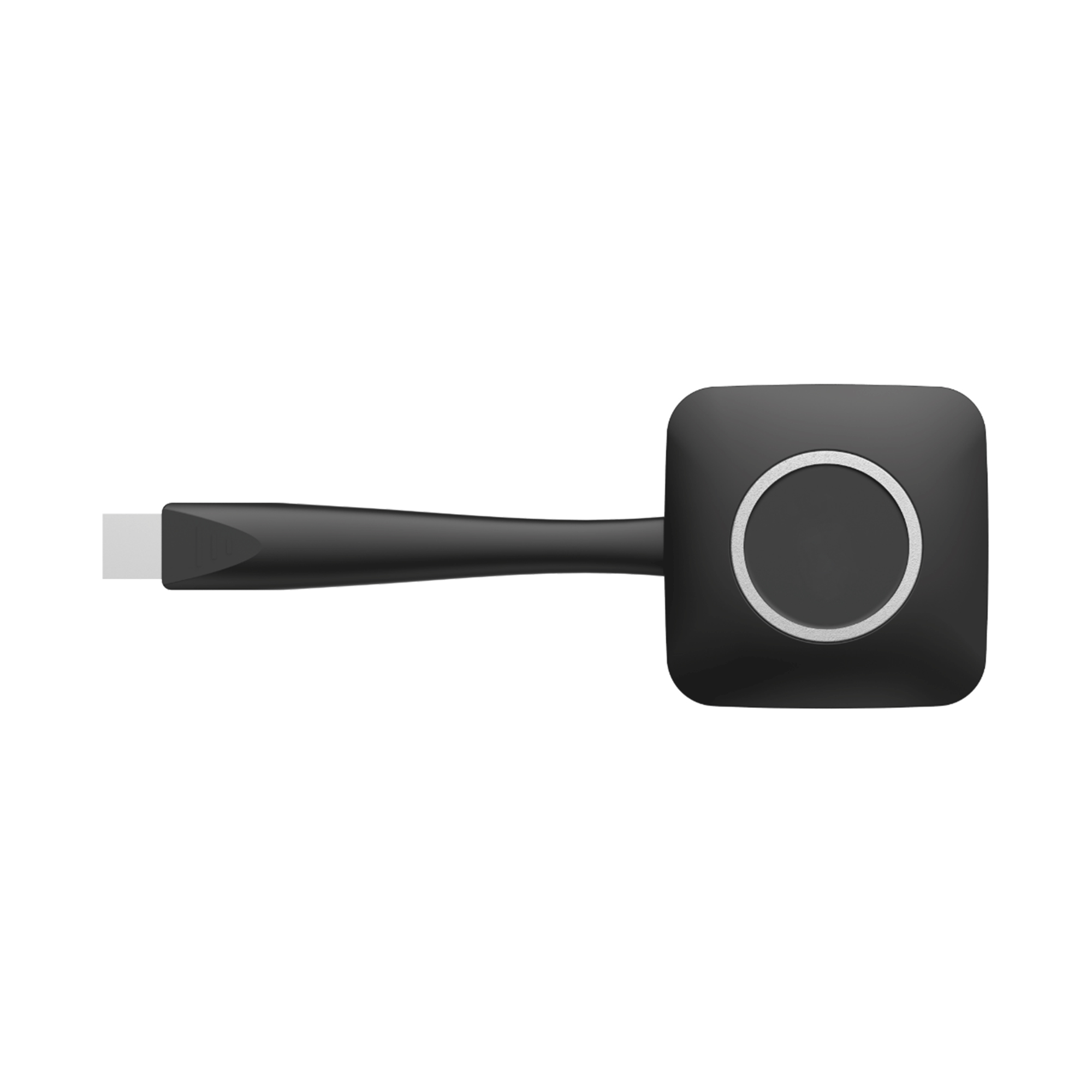

Sends the computer screen to an external display wirelessly with one button.

An adapter that carries the computer screen to an external display wirelessly. It works over a USB 2.0 connection and starts projection with one button, sending the image at 1920 × 1080 up to 15 m.

1920 × 1080Output resolution

54 MbpsWireless data rate

120 msTransmission delay

15 mTransmission distance

2.4 / 5 GHzFrequency band

2.5 WPower consumption

Key features

One-button projectionThe button on the device starts screen sharing in a single step.

Input and output resolutionIt takes a 1920 × 1200 input and transmits at 1920 × 1080.

Low latencyIt carries the image to the far screen with 120 ms of transmission delay.

Encrypted linkWPA2-PSK authentication and CCMP encryption protect the connection.

Broad operating system supportIt supports Windows 7, Windows 8 and Windows 10 plus Mac OS X 10.6 and later.

Compact bodyThe 63.3 g body fits into 61 mm × 156 mm × 17 mm.

Hardware

Input Resolution

1920 × 1200

Output Resolution

1920 × 1080

Port

1 × USB 2.0

Input Voltage

5 VDC

Power Consumption

2.5 W

System Config

Transmission Delay

< 120 ms

Operating System

Windows 7, Windows 8, and Windows 10; Mac OS X 10.6, Mac OS X 10.7 and later

Encryption

CCMP

Authentication Protocol

WPA2-PSK

Wireless Transmission Protocol

IEEE 802.11 a/g/n

Wireless Data Rate

54 Mbps

Frame Rate

Windows: 1920 × 1080 @25 fps / 1366 × 768 @25 fps
iOS: 1920 × 1080 @30 fps / 1366 × 768 @30 fps

Structure

Net Weight

63.3 g (0.14 lb)

Dimensions

61 mm × 156 mm × 17 mm (2.40" × 6.14" × 0.67")

Environment

Operating Temperature

5 °C to 40 °C (41 °F to 104 °F)

Operating Humidity

0%–80% (no condensation)

Transmission Distance

The distance between wireless projectors and the host is up to 15 m

Frequency Band

2.4 GHz and 5 GHz (recommended)
