Stock Code: ARD323-W2(868)
| Function | |
|---|---|
| Indicator Light | 1 × green alarm indicator |
| Button | 1 × power button |
| Remote Update | Cloud update |
| Temperature Measuring Range | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
| Tamper Alarm | Yes |
| Low Battery Alarm | Yes |
| Technical | |
| Sensor | Reed switch |
| Movement Distance | < 40 mm (1.57") |
| Test Mode | Yes |
| Scenario | Non-metal doors |
| Wireless | |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Distance | Up to 1,200 m (3,937.01 ft) in open space |
| Communication Mechanism | Two-way |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| General | |
| Power Supply | CR123A battery |
| Power Supply Type | Type C |
| Low Battery Threshold | 2.7 V |
| Battery Restore Threshold | 2.8 V |
| Power Consumption | Max. 125 mW |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H) |
| Packaging Dimensions | 135.0 mm × 98.5 mm × 27.8 mm (5.31" × 3.88" × 1.09") (L × W × H) |

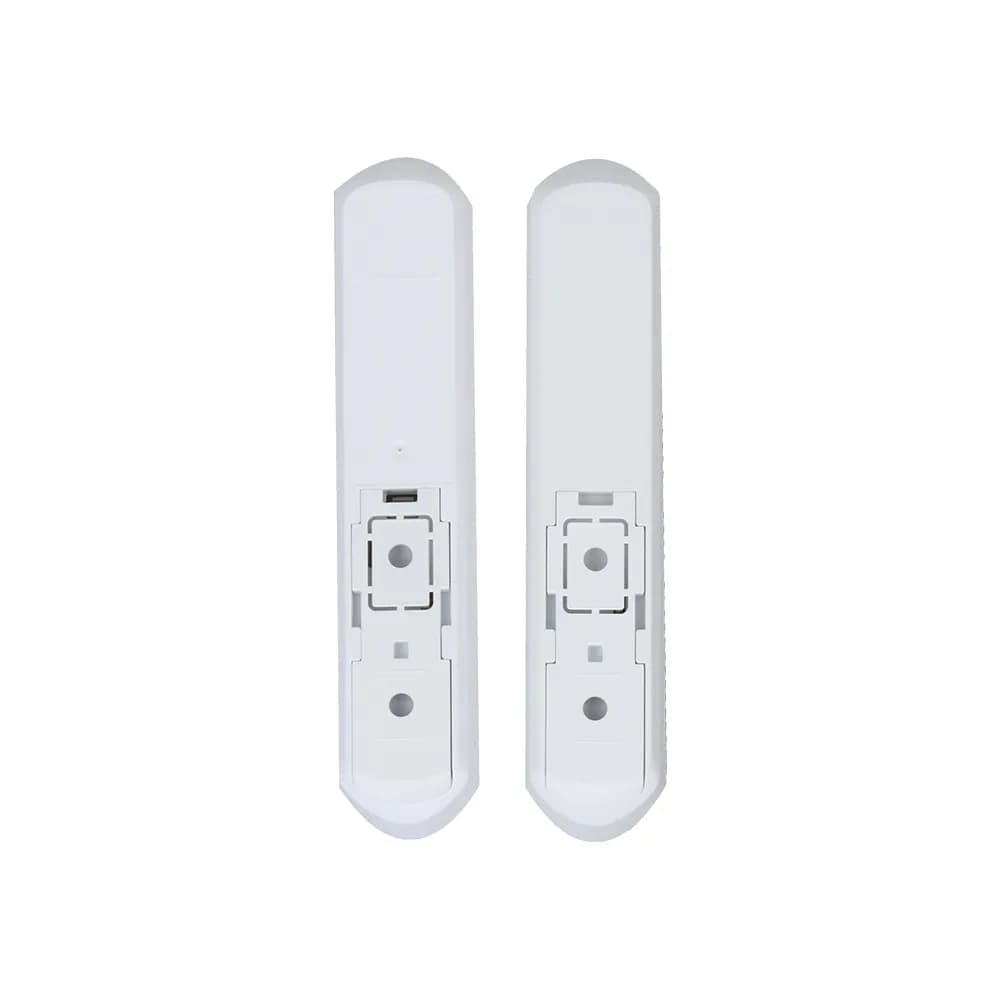

| Installation | Bracket mount |
| Net Weight | 70 g (0.15 lb) |
| Gross Weight | 115 g (0.25 lb) |
| Certifications | CE; EN 50131-1:2006+A1:2009+A2:2017+A3:2020; EN 50131-6:2017, EN 50131-5-3:2017; EN 50131-2-6:2008; Security Grade 2; Environmental Class II |
| Battery Life | No external input: 4 years; NC or Pulse: 2 years |
| Casing | PC + ABS |
| Anti-corrosion Level | Basic protection |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Storage Humidity | 10%–90% (RH) |
