Monitors conventional fire detection lines from a single panel and sounds the alarm.

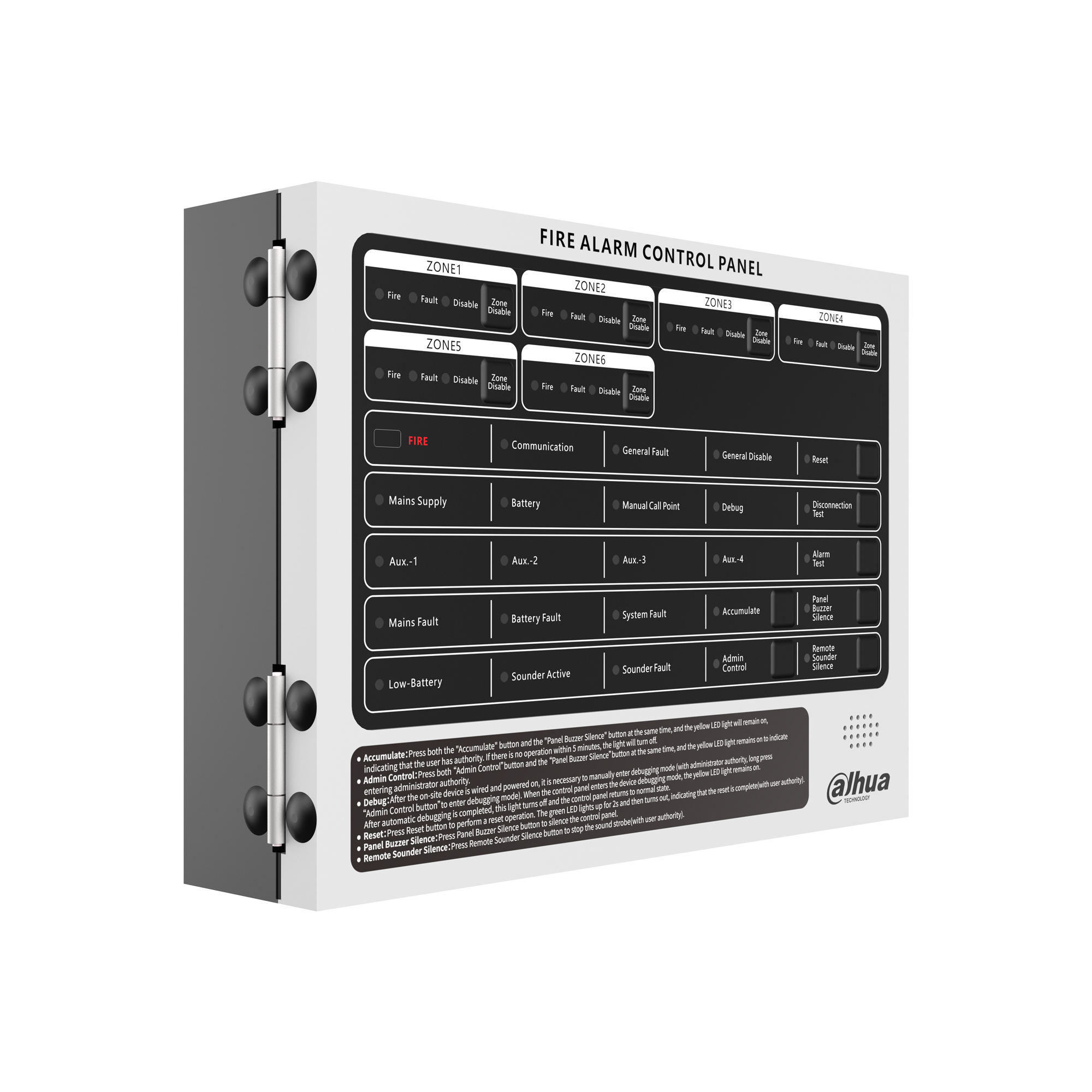

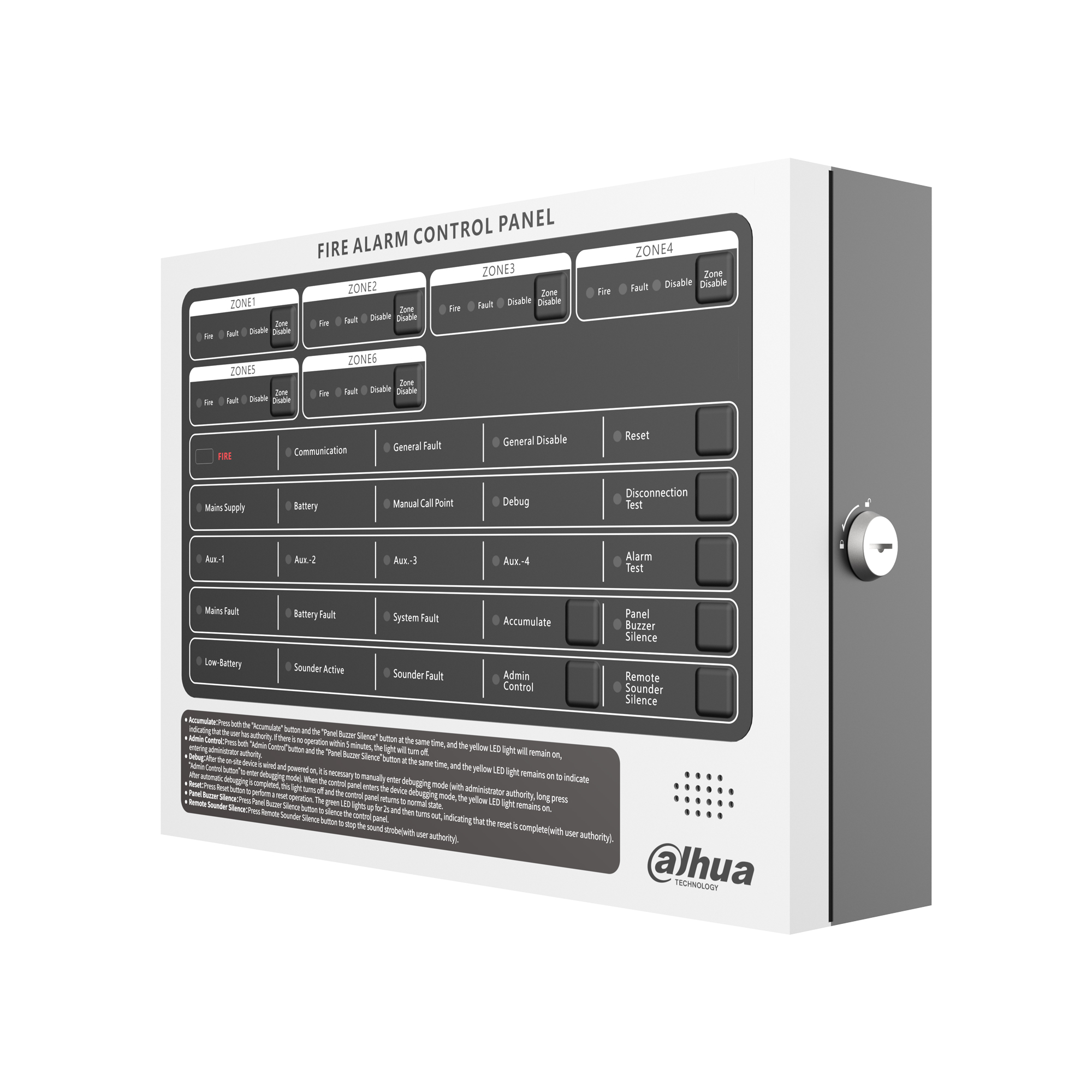

A six-zone conventional fire alarm panel that connects up to 25 detectors per zone. The wall-mounted enclosure carries IP30 protection and the panel operates under EN54-2 and EN54-4. When mains power drops, two 12 V / 2.5 Ah batteries keep feeding the panel.

6Number of zones

25 detectorsZone capacity

2 AOutput current

IP30Protection grade

–10°C ~ +50°COperating temperature

EN54-2 / EN54-4Compliance standard

Key features

Zone layoutMonitors six zones separately and shows alarm and fault per zone.

Output currentA 2 A output feeds the detectors and modules on the line.

Audible warningSounds at 50 dB for a fault and 60 dB for an alarm.

Bell outputA DC 28 V / 500 mA fire bell output drives an external bell directly.

Backup powerTwo 12 V / 2.5 Ah lead-acid batteries feed the panel when mains power drops.

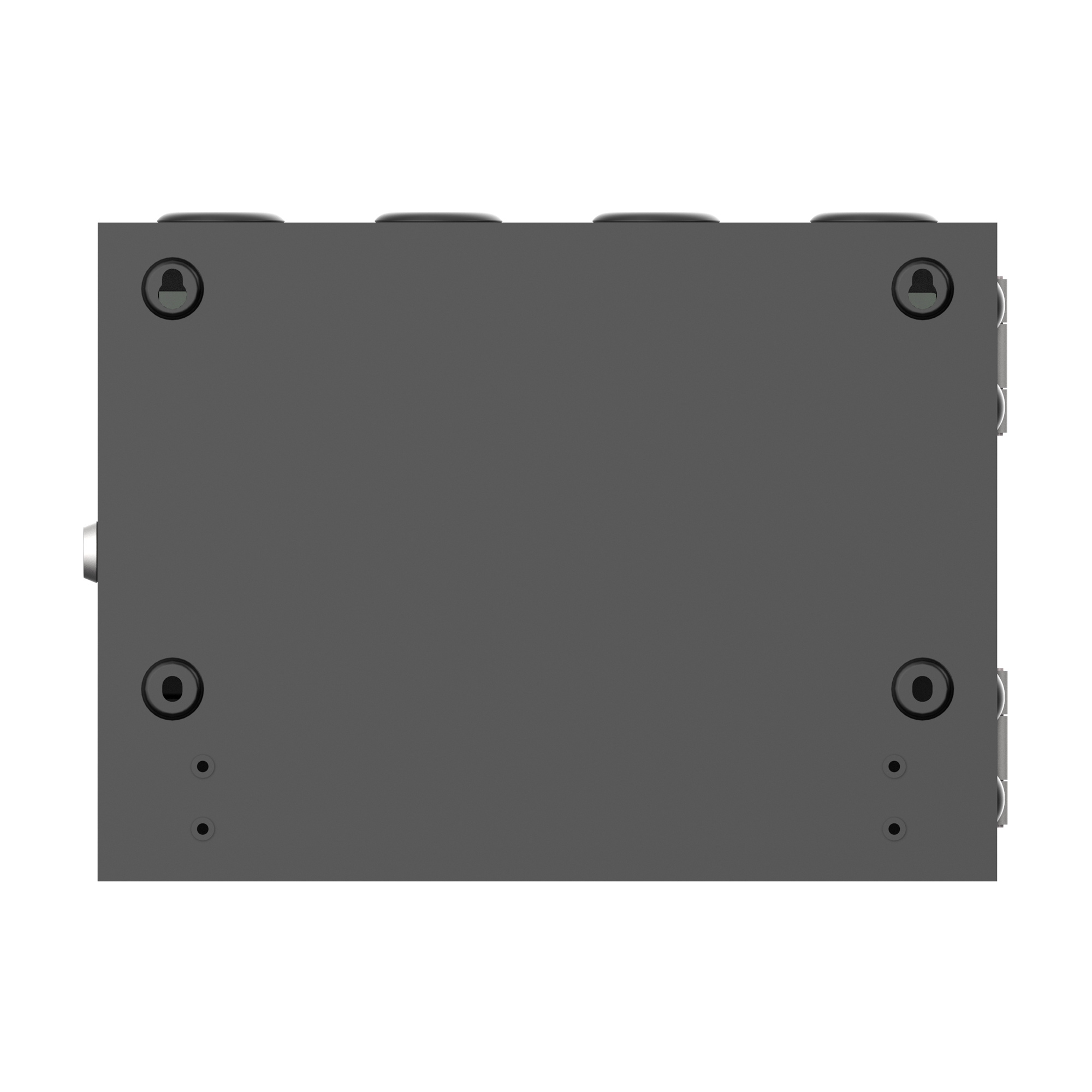

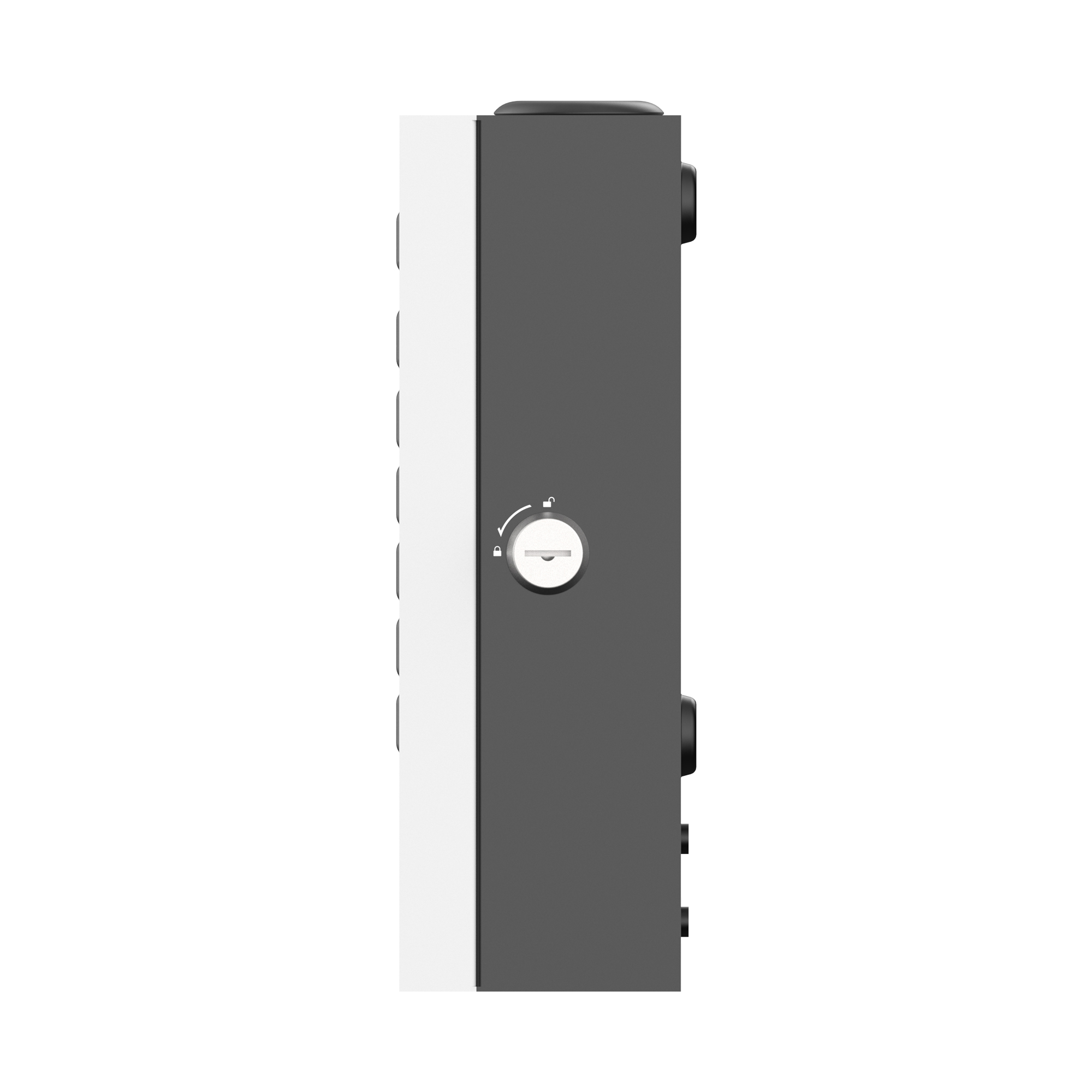

Compact enclosureThe wall-mounted enclosure weighs 3.5 kg and reaches 5 kg with two batteries.

Technical Specification

Number of Zones

Zone Capacity

25 detectors per zone

Main Power

AC90-240V/50Hz, 60Hz

Backup Power

2 lead-acid batteries (12V/2.5Ah each)

Output Current

Sounder Output

Fault: 50dB; Alarm: 60dB

Fire Bell Output

DC 28V/500mA

Dimensions

310.0 mm × 73.0 mm × 227.0 mm (12.20" × 2.87" × 8.94")

Weight

3.5 kg (5 kg with 2 batteries)

Operating Temperature

–10°C to +50°C (+14°F to +122°F)

Operating Humidity

≤ 95% RH (no condensation)

Protection Grade

IP30

Installation

Wall mount

Standards

EN54-2, EN54-4
