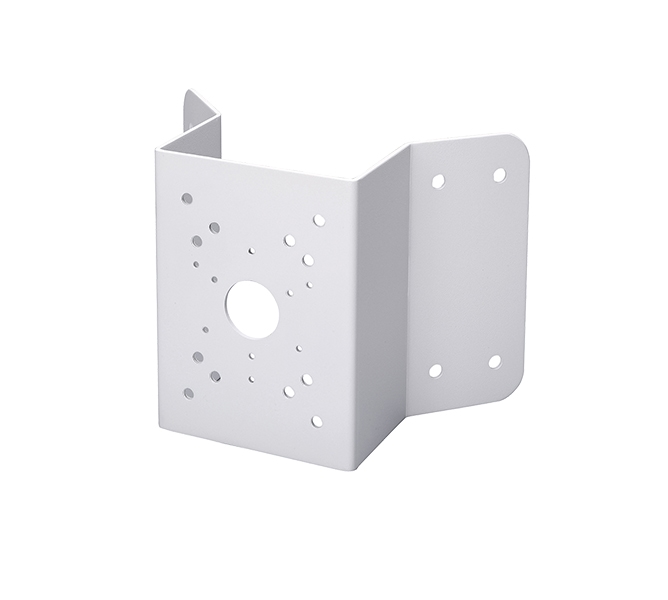

Corner Mount Bracket

Name: Corner Mount Bracket
Brand: Dahua
SKU: PFA151

Stock Code: PFA151

5 options

Mounting LocationCorner5

Currently viewing: PFA151 · Corner

Carries the camera at a wall corner.

A SECC bracket for attaching cameras to building and room corners. It carries up to 10.0 kg and seats the camera where two walls meet.

10.0 kgLoad bearing

SECCCasing material

1.70 kgWeight

Corner mountInstallation type

243.1 mm × 170.0 mm × 138.0 mm (L × W × H)Product dimensions

-40 °C ~ +60 °COperating temperature

Key features

Corner mountingIt seats in the corner where two walls meet and positions the camera outward.

LoadIt carries up to 10.0 kg of camera and housing.

BodyThe white SECC sheet body carries basic anti-corrosion protection.

DimensionsThe body measures 243.1 mm × 170.0 mm × 138.0 mm and weighs 1.70 kg.

EnvironmentIt operates from -40 °C to +60 °C and up to 90% relative humidity.

Structure
Casing Material	SECC
Product Dimensions	243.1 mm × 170.0 mm × 138.0 mm (9.57" × 6.69" × 5.43") (L × W × H)
Appearance Color	White
Net Weight	1.70 kg (3.75 lb)
Gross Weight	2.21 kg (4.87 lb)
Load Bearing	10.0 kg (22.05 lb)
Installation	Corner mount
Packaging Dimensions	261.0 mm × 186.0 mm × 162.0 mm (10.28" × 7.32" × 6.38") (L × W × H)
Applicable Model	Please see "Camera Accessories Selection"
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	< 90% (RH)
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	10%–90% (RH)
Anti-corrosion Level	Basic Protection
