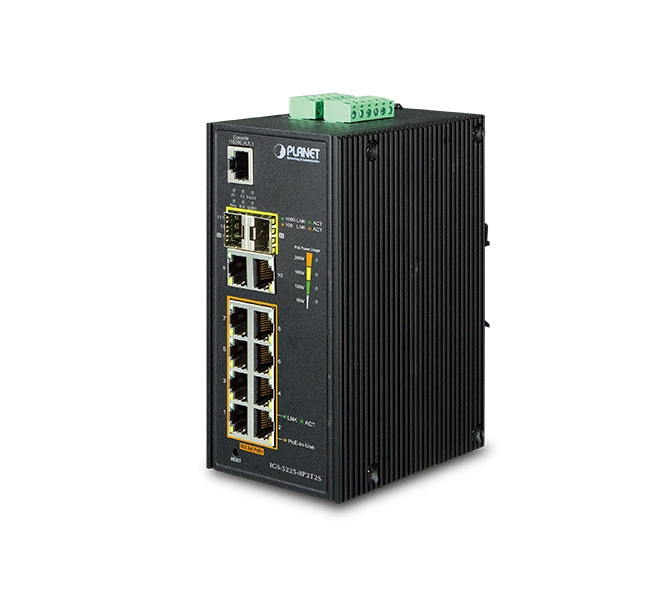

Hardware Specifications

Copper Ports

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports(Port-9 to Port-10)

SFP/mini-GBIC Slots

2 1000BASE-SX/LX/BX SFP interfaces (Port-11 to Port-12)
Compatible with 100BASE-FX SFP

PoE Injector Port

8 ports with 802.3at/af PoE injector function with Port-1 to Port-8

Console

1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

24Gbps/non-blocking

Throughput (packet per second)

17.85Mpps@ 64 bytes packet

Address Table

8K entries, automatic source address learning and aging

Shared Data Buffer

4Mbits

Flow Control

IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Jumbo Frame

9Kbytes

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

ESD Protection

5KV DC

Enclosure

IP30 aluminum case

Installation

DIN rail kit and wall-mount kit

Connector

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC

DI/DO

2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.

LED Indicator

System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm ( Red )
Ring (Green)
Ring Owner (Green)
DIDO ( Red )
Per 10/100/1000T RJ45 PoE+ Ports:
PoE-in-Use (Orange)
LNK/ACT (Green)
Per SFP Interface:
100 LNK/ACT (Orange)
1000 LNK/ACT (Green)

Dimensions (W x D x H)

72 x 107 x 152 mm

Weight

991g

Power Requirements

Dual 48~56V DC (>51V DC for PoE+ output recommended)

Power Consumption

Max. 7.3 watts/25.04BTU (Power on without any connection)
Max. 252.3 watts/865.64BTU (Full loading with PoE function)

Power Over Ethernet

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type

End-span

PoE Power Output

IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 36 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

Dual power input: 240W maximum (depending on power input)

Max. Number of Class 2 PDs

8

Max. Number of Class 3 PDs

8

Max. Number of Class 4 PDs

8

Layer 2 Function

Basic Management Interfaces

Console; Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSH, TLS, SNMP v3

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status

Port Mirroring

TX/RX/both
1 to 1 monitor

VLAN

802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 4 ports per trunk group

QoS

Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IPv4 IGMP querier mode support

MLD Snooping

IPv6 MLD (v1/v2) snooping, up to 255 multicast groups
IPv6 MLD querier mode support

Access Control List

IP-based ACL/MAC-based ACL
Up to 123 entries

Bandwidth Control

Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps

SNMP MIBs

RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

Layer 3 Function

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing
IPv6 software static routing

Standards Conformance

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
ITU G.8032 ERPS Ring

Environment

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
