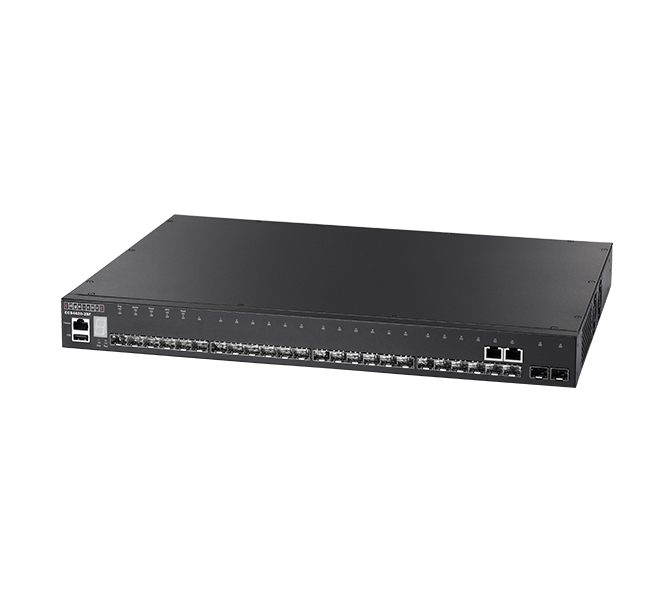

Stock Code: ECS4620-28F
| Product Model | ECS4620-28F |
| Ports | |
|---|---|
| RJ-45 10/100/1000 Ports | 0 |
| 100/1000 SFP Ports | 22 |
| 10/100/1000 Combo Ports | 2 |
| SFP+ 10 Gigabit Uplink Ports | 2 |
| 10G SFP+ Expansion Module Slots | 1 |
| RJ-45 Console Port | Yes |
| Performance | |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Flash Memory | 128 MB |
| DRAM | 256 MB |
| MAC Address Table | 16 K |
| Jumbo Frames | 10 K |
| Auto-negotiation, Auto-MDI/MDIX | Yes |
| PoE | |
| Support on all Gigabit ports based on IEEE 802.3af | No |
| PoE+ based on IEEE 802.3at | No |
| Auto disable after exceeding power budget | No |
| Dynamic Power Allocation | No |
| PoE Power Budget | No |
| Mechanical | |
| Rack Space | 19" |
| Dimensions (W × D × H) cm | 44 × 31.5 × 4.4 |
| Weight | 3.8 kg |
| Power Supply | |
| 100-240 VAC, 50-60 Hz | Yes |
| Max System Power Consumption (Watts) | 42 W |
| Environmental | |
| Operating Temperature | 0 °C ~ 45 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity (non-condensing) | 10% to 90% |
| Storage Humidity (non-condensing) | 10% to 90% |
| Environmental Regulation Compliance: WEEE | Yes |
| Environmental Regulation Compliance: RoHS | Yes |
| Certification | |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: CB | Yes |
| Safety Compliance: UL | Yes |
