Connects LC links face to face with low insertion loss

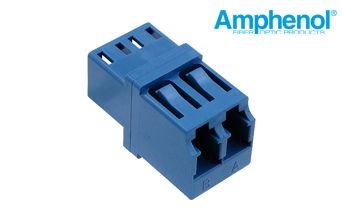

A duplex fiber optic adapter with zirconia ceramic sleeves and an LC/PC interface. On single-mode 9/125 µm links it gathers two channels on one body and keeps insertion loss below 0.3 dB.
LC/PCconnector type
Single-modefiber type
9/125fiber size (µm)
Duplexconfiguration
< 0.3 dBinsertion loss
Key features
< 0.3dB
Low insertion loss
On both channels the junction loss stays below this limit.
Zirconia
Ceramic alignment sleeves
The sleeves hold the mating connector ends on a common axis.
UL-94V-0
Flame-retardant housing
The housing and dust cap are thermoplastic rated to this class.
29.2mm
Small body footprint
Overall length is 29.2 mm and the body section is 13.1 × 13.1 mm.
RoHS
Material compliance
All components are RoHS compliant.
Everyday useShips with a dust capThe package holds the connector components and the dust cap.
Sits on the panel faceThe flanged body keeps the adapter steady in the panel cutout.
Blue housingThe blue housing makes the adapter easy to spot inside a panel.
Dimension values include manufacturer tolerances, and insertion loss can vary with measurement conditions.
