Joins two N female lines through its male ends.

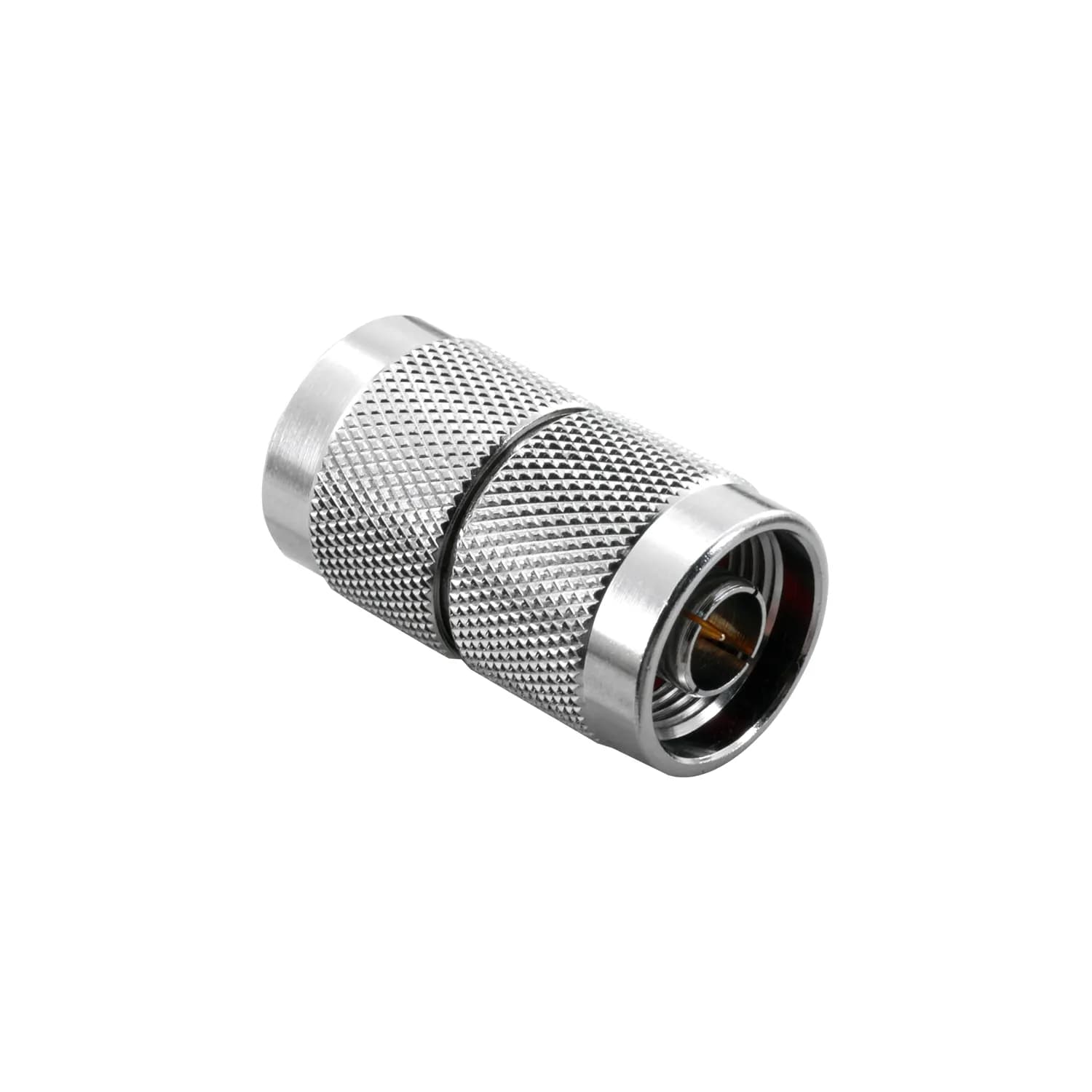

This is an RF adapter with an N male end on both sides. It covers the 0 - 11.0 GHz band on 50 Ω lines. It connects two cables that both terminate in a female N port, without an extra part.
50 ΩImpedance
0 - 11.0 GHzFrequency Range
MalePlug Type
SilverOuter Jacket
Key features
Connection layoutBoth ends are N male, so it joins two N female lines directly.
VSWROn the straight body the VSWR stays within 1.3, which keeps reflection on the line limited.
Insertion lossInsertion loss stays within 0.3 dB at 10 GHz and leaves little attenuation on the line.
Body platingThe body is silver plated.
The electrical values here belong to the 50 Ω column of the table.
