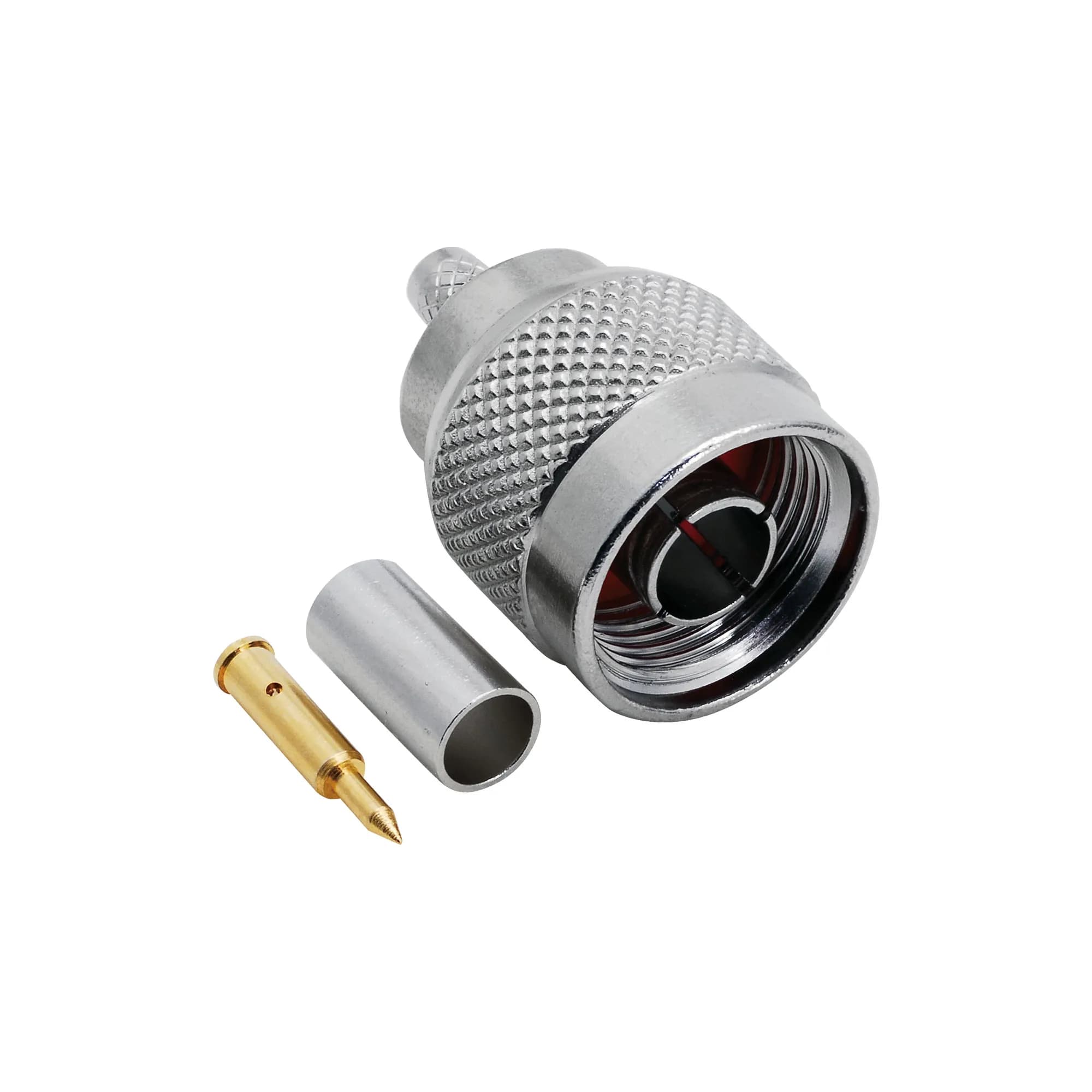

Terminates an RG58 coaxial line in a crimp N male interface.
This N male crimp connector links RG58 coaxial cable to 50 Ω high frequency lines. In base station and radio installations it converts the cable end into a threaded N interface.
Impedance matchThe connector operates at 50 Ω and keeps the line impedance of the RG58 cable unchanged.
Frequency rangeIt carries signals across the 0 – 11.0 GHz band and holds reflection low over that range.
TerminationA crimp tool clamps the cable end onto the connector body mechanically.
InterfaceThe threaded N interface holds the mating with a screw lock and forms a standard connection point in base stations and test setups.
PlatingThe gold plated contact pin and the nickel plated body keep signal loss to a minimum.
Signal qualityVSWR stays within 1.3 on the straight body, and insertion loss holds at 0.3 dB max at 10 GHz.
