Brings the call, authorization and information functions of a patient room together on one panel.

The room control panel combines the essential functions of a patient room in a single device and works either on its own or together with in-room units. Through its 4.3 inch touchscreen it runs the nurse room call, the emergency code and the consultation request.

4.3 inchTouchscreen display

5000Personnel records

32In-room unit connections

10/100 MbpsShielded LAN connection

12V · 500 mAPower Options

Key features

Touch interfaceThe 4.3 inch touchscreen gathers the nurse room call, the emergency code and the consultation on one screen.

High capacityIt holds 5000 personnel records and 32 in-room unit connections.

RFID authorizationIt authorizes personnel with Mifare proximity cards and opens the panel operations only to authorized staff.

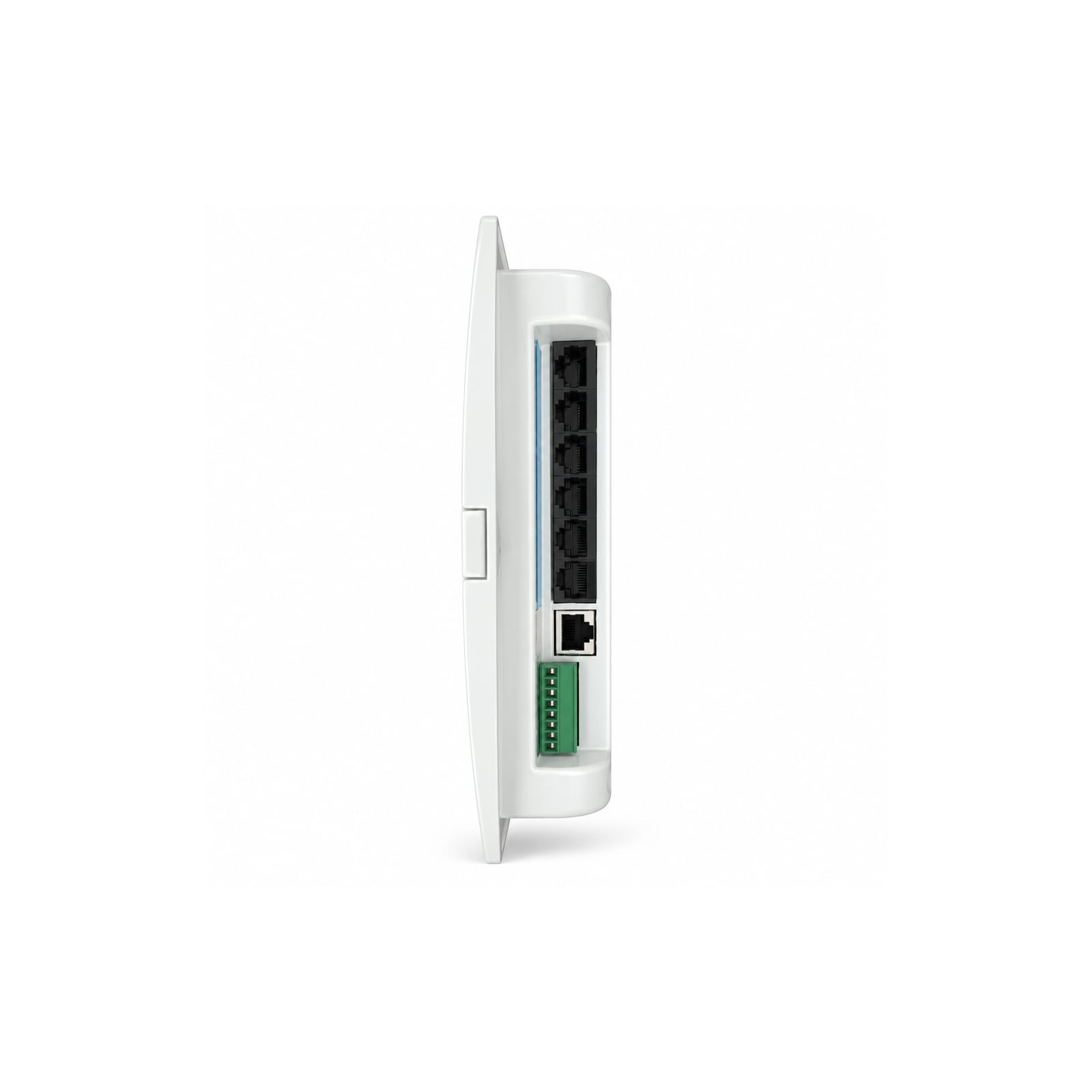

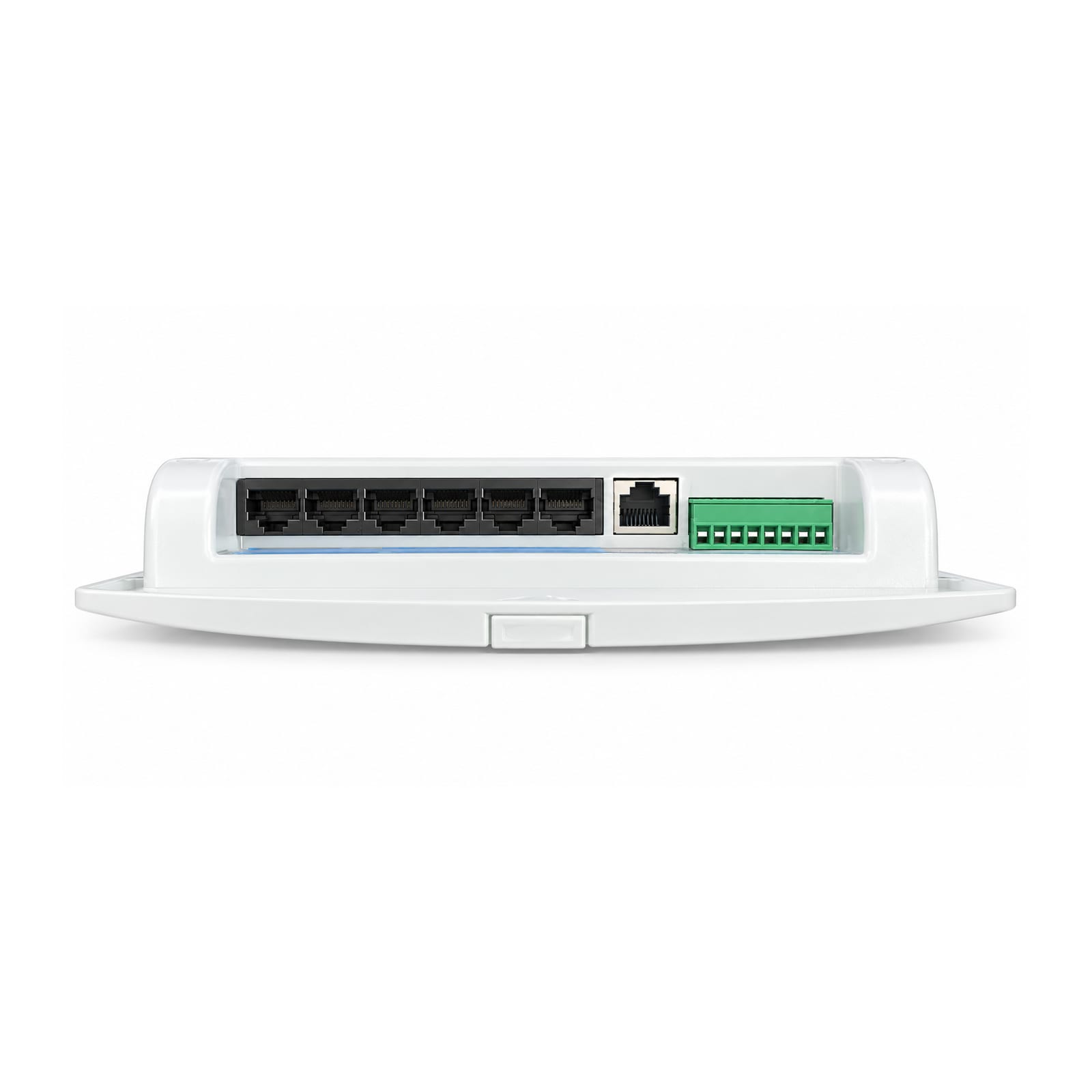

Communication and interfacesIt supports the TCP/IP, NTP, DHCP and RS485 protocols along with RS232, USB, mini-USB, Wiegand and relay output interfaces.

Network and powerIt runs over a 10/100 Mbps shielded LAN connection and draws 500 mA on average from a 12V supply.

System integrationIt exchanges data online or offline with the hospital information system, building automation and access control systems.

Software updates run through the USB port on the front panel. Wireless communication is optional.

Technical Specifications

Display

4.3" touchscreen

RFID Support

Personnel authorization with Mifare proximity cards

Capacity

5000 personnel records, 32 in-room unit connections

Communication

TCP/IP, NTP, DHCP, RS485

Interfaces

RS232, USB, mini-USB, Wiegand, Relay output

Network

10/100 Mbps shielded LAN connection

Power

12V, 500mA average

Color

Unlimited color options

Mounting

Built-in installation, fits decorative outlook

Integration

Compatible with building automation and access control systems

Authorization

Entry permission with personnel smart cards

Functions

Nurse room call, emergency code, consultation

Remote Management

Configuration and monitoring support

System Compatibility

Hospital Information System (HIS) integration

Wireless

Optional dedicated wireless communication support

Update

Easy software update via the USB port on the front panel
