    Dahua

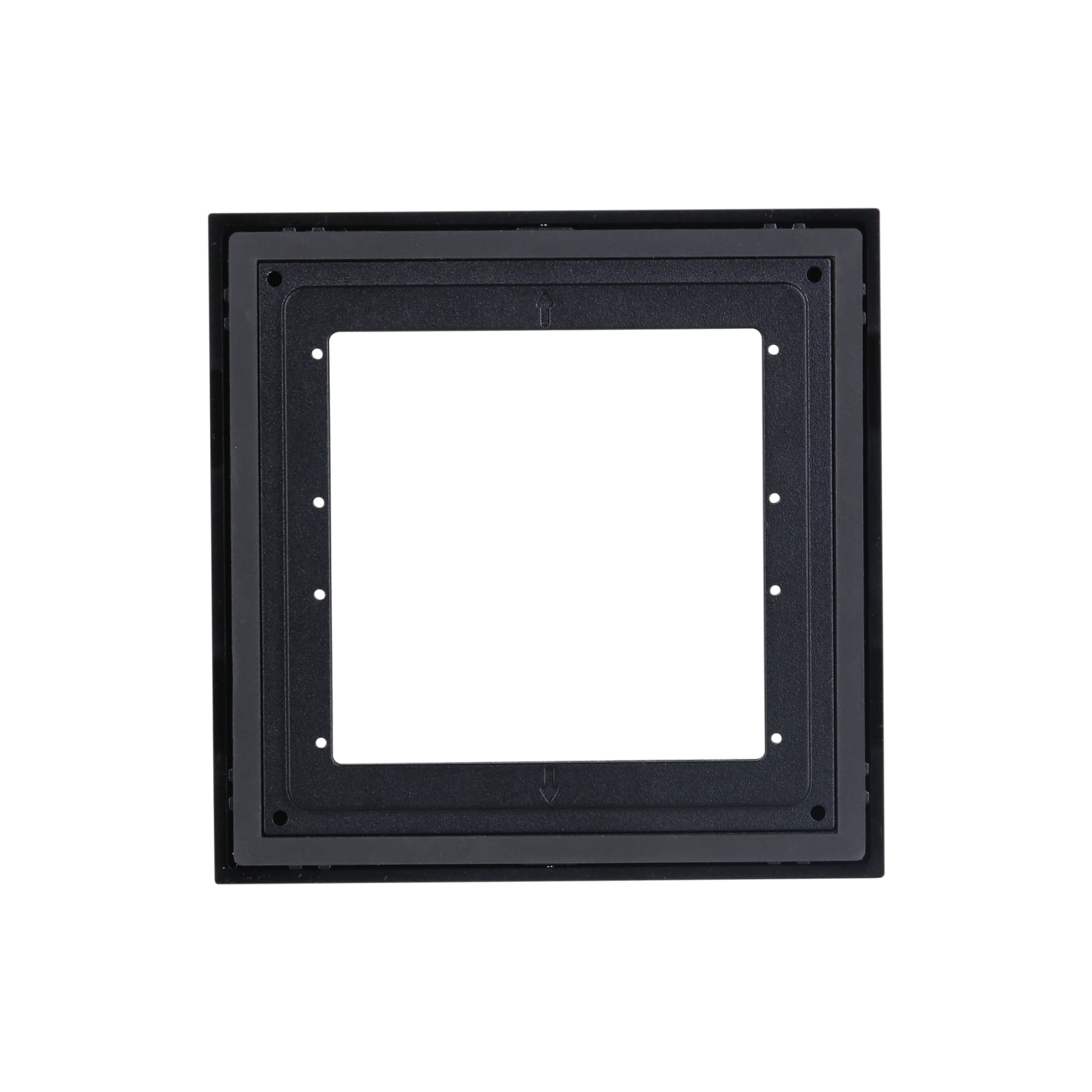

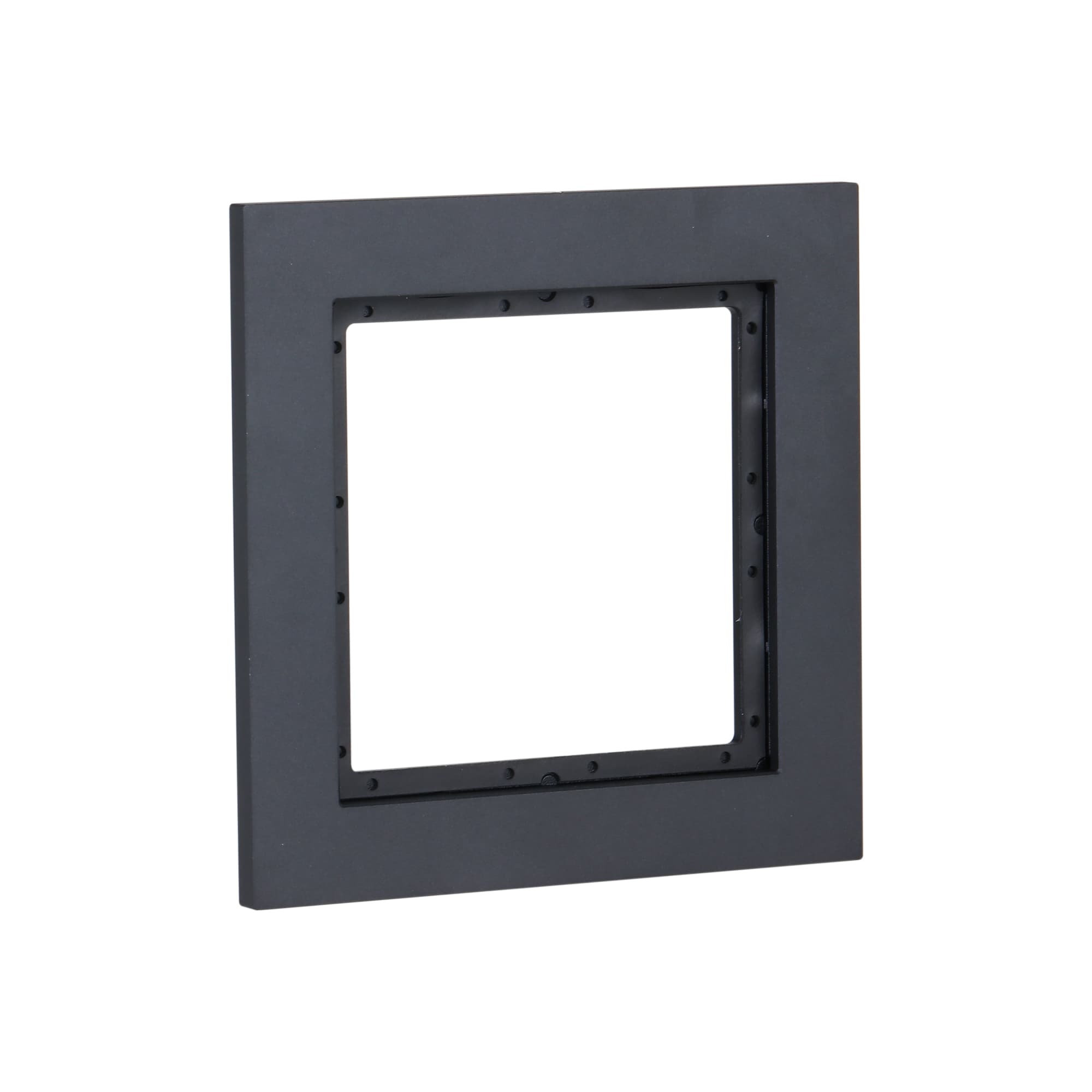

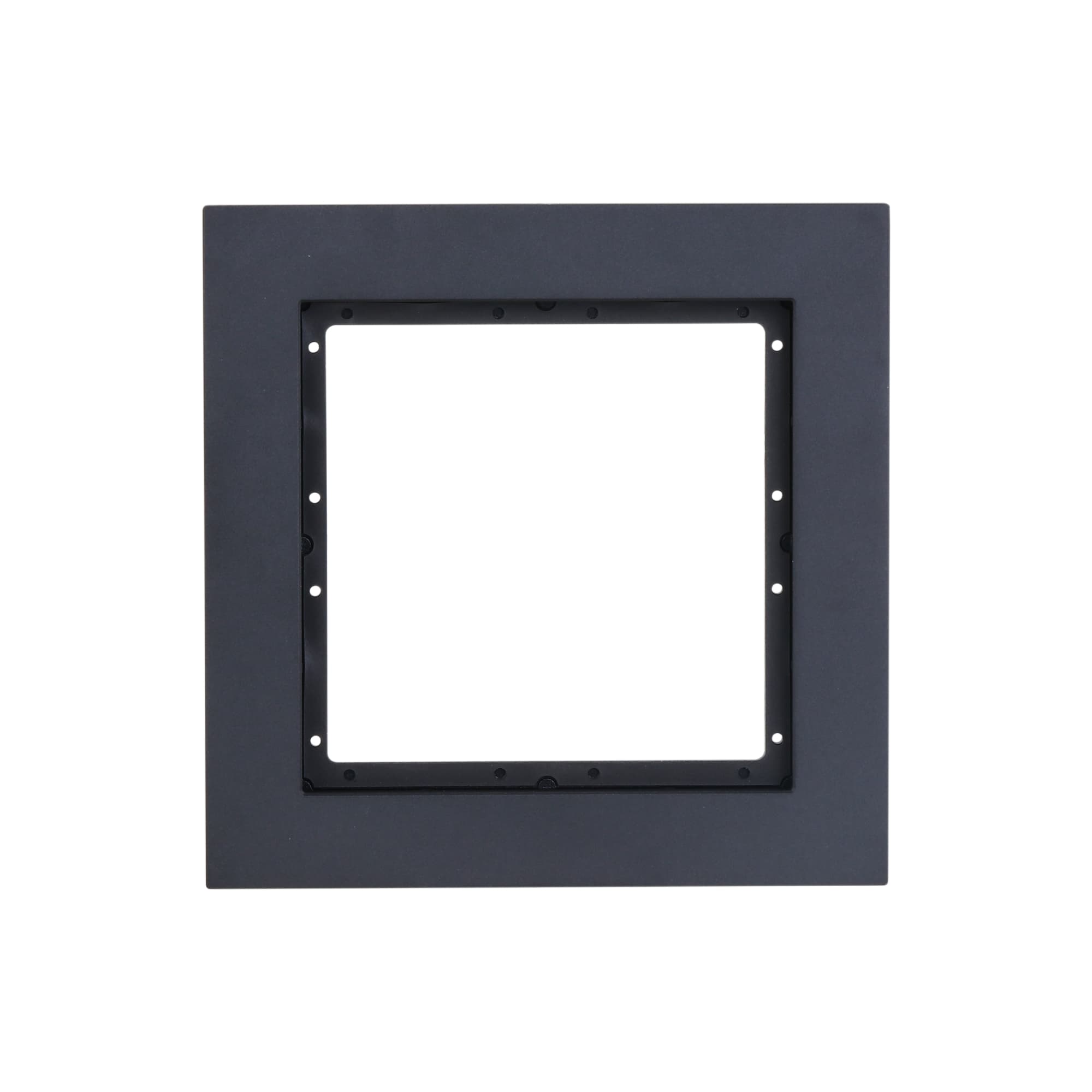

    Front Panel

    Stock Code: VTM78

    Covers the face of a single-module door intercom.
    A paint-sprayed aluminum alloy front panel for single-module video door intercom systems. At 10.0 mm thick it sits flat over the module.
    Aluminum alloyCasing Material
    140.0 × 140.0 × 10.0 mmProduct Dimensions
    -20 °C ~ +55 °COperating Temperature
    0.31 kgNet Weight
    BlackAppearance Color
    Key features
    Material and finishPaint spraying covers the aluminum alloy panel and gives the face its black finish.
    Dimensions and weightThe panel measures 140.0 mm × 140.0 mm × 10.0 mm and weighs 0.31 kg net.
    CompatibilityIt fits over the face of single-module video door intercom systems.
    Operating environmentIt works outdoors from -20 °C to +55 °C.
    Storage conditionsStorage keeps relative humidity between 30% and 75%.
    Technical Specification: Mounting Accessory (Black)
    Surface Finish / MaterialPaint Spraying / Aluminum Alloy
    Appearance / ColorBlack
    Product Dimensions140.0 mm × 140.0 mm × 10.0 mm (5.51" × 5.51" × 0.39")
    Operating Env.–20 °C to +55 °C / Outdoor
    Weight (Net / Gross)Net: 0.31 kg (0.68 lb) / Gross: 0.86 kg (1.15 lb)
    Packaging / Storage178.0 mm × 179.0 mm × 53 mm / 30%–75% (Relative Humidity)

    Datasheet

    VTM78 DATA

    12/12/2026

    Kullanım Kılavuzu

    VTM78 KULLANIM KILAVUZU

    12/12/2026

    Teknik Çizim

    VTM78 TEKNİK ÇİZİM

    12/12/2026

    VTM78 TEKNİK ÇİZİM 2

    12/12/2026

    Similar Products

    Fingerprint Reader
    DahuaASI1212D

    Fingerprint Reader

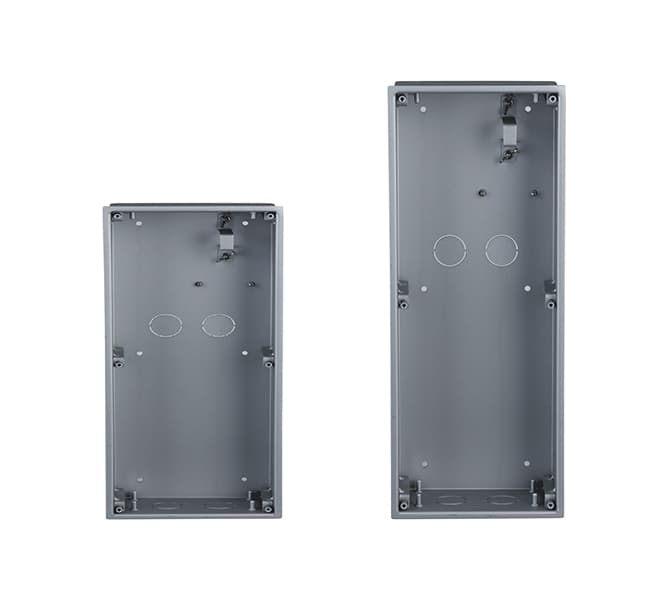

    Mount box
