    upTech

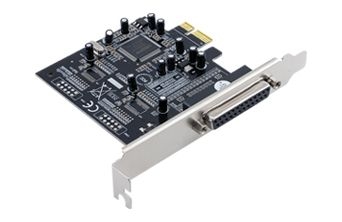

    PCI Express Parallel Card

    Stock Code: KX317

    PCI Express
    Single-lane (X1) PCI Express End-point Controller with integrated PHY
    Compliant with PCI Express Base Specification, Revision 1.1
    Compliant with PCI Express Card Specifications
    Supports three PCI Express functions
    Supports auto completion of configuration requests
    Supports built in flow control
    Supports Message TLP (Error) generation
    Supports integrated time out handling of Non-posted request
    Supports both legacy and MSI Interrupt
    Supports PCIe Power Management
    Compatible with IEEE 1284
    Nibble Mode
    Byte Mode
    Enhanced Parallel Port (EPP 1.9)
    Extended Capability Port (ECP)
    FIFO mode (Buffered SPP mode)
    Cascade : MCS9901CV-CC supports a 13-Pin proprietary interface to connect to other ASIX devices for IO expansion. Through this interface, MCS9901CV-CC can be used as Cascade Secondary device and can be connected to Cascade Primary capable ASIX Devices like MCS9900. Eg. MCS9901CV-CC can be connected to MCS9900, for following product configurations.
    PCIe to 6 Serial Ports and 1 Parallel Port
    PCIe to 4 Serial Ports and 2 Parallel Ports
    General Device Features
    I²C interface for EEPROM
    EEPROM read / write through PCIe Interface
    Six bi-directional multi-function GPIO lines
    On chip oscillator
    Power supply : 1.2V, 3.3V
