Adds a 10/100 Mbps Fast Ethernet link to a notebook computer

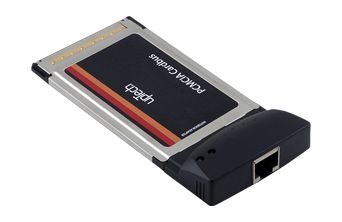

A Fast Ethernet card for the 32-Bit CardBus slot. The RJ-45 socket connects a LAN cable directly to a notebook computer, and the card complies with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX.

32-Bit CardBusSystem Interface

1Port Count

RJ-45Network Connection

10 / 100 MbpsData Rate

IEEE 802.3uStandards Compliance

Key features

Network linkThe RJ-45 connector attaches a LAN cable directly to a notebook computer.

SpeedRuns half duplex and full duplex at 10 Mbps and 100 Mbps.

Auto detectionDetects the highest available network speed and switches to it.

StandardsComplies with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX.

Operating systemsSupports Windows 98, Me, NT, 2000 and XP plus Apple Mac 8.x, 9.x and OS X.

General Specifications

Product Type

10/100M Fast Ethernet adapter for notebook computers

Interface

32-Bit CardBus (PCMCIA)

Network Connection

RJ-45

Network Specifications

Standards Compliance

IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX

Data Rate

10 Mbps / 100 Mbps

Operating Mode

Half Duplex / Full Duplex

Auto-Negotiation

Yes (automatic switching according to network speed)

Application

Direct connection of an RJ-45 LAN cable to a notebook computer
