Protects a single-pole circuit against overcurrent and short circuit

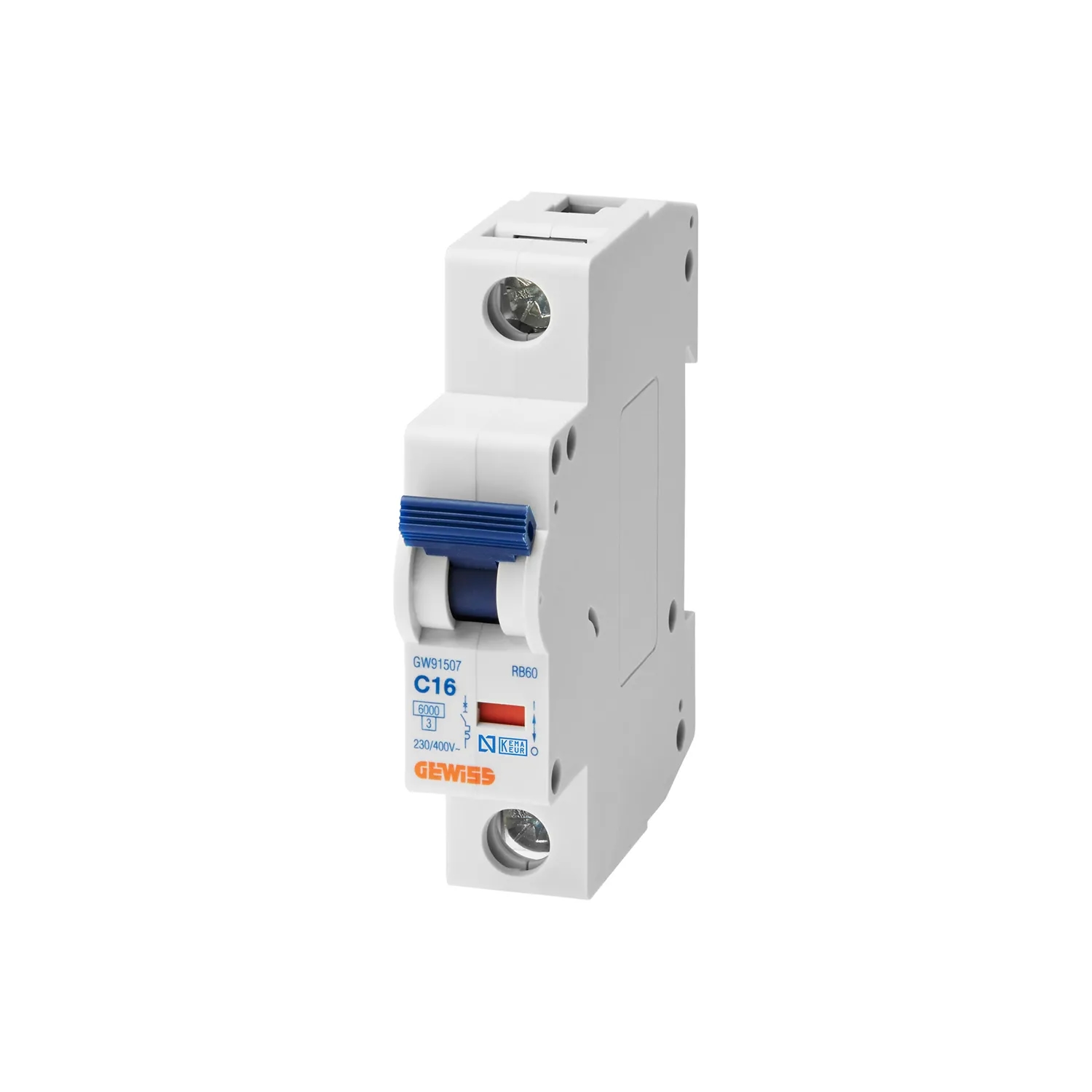

A single-pole miniature circuit breaker one module wide. It trips on the C curve and protects the circuit against overcurrent and short circuit. It sits in the distribution boards of residential, commercial and industrial installations.
1PNumber of Poles
6 kABreaking Capacity
1MNumber of Modules
500 VInsulation Voltage
Key features
Protection functionIt trips the circuit on overcurrent and disconnects the load on a short circuit.
Rated valuesThe single-pole body works within one module of width and trips on the C curve.
Breaking capacityIt clears 6000 A at 230 V to IEC/EN 60898 and 6 kA to IEC/EN 60947-2.
Terminals and cable cross-sectionTerminals accept solid and stranded cable up to 25 mm² with a rated tightening torque of 2 Nm.
Insulation and withstandIt carries a 500 V insulation voltage and a 4 kV rated impulse withstand voltage, and runs at a 50/60 Hz supply frequency.
Endurance and temperatureIt runs through 4000 electrical and 10000 mechanical operations, works from -25 to +40 °C and is stored from -25 to +80 °C.
A qualified electrician carries out the panel installation.
