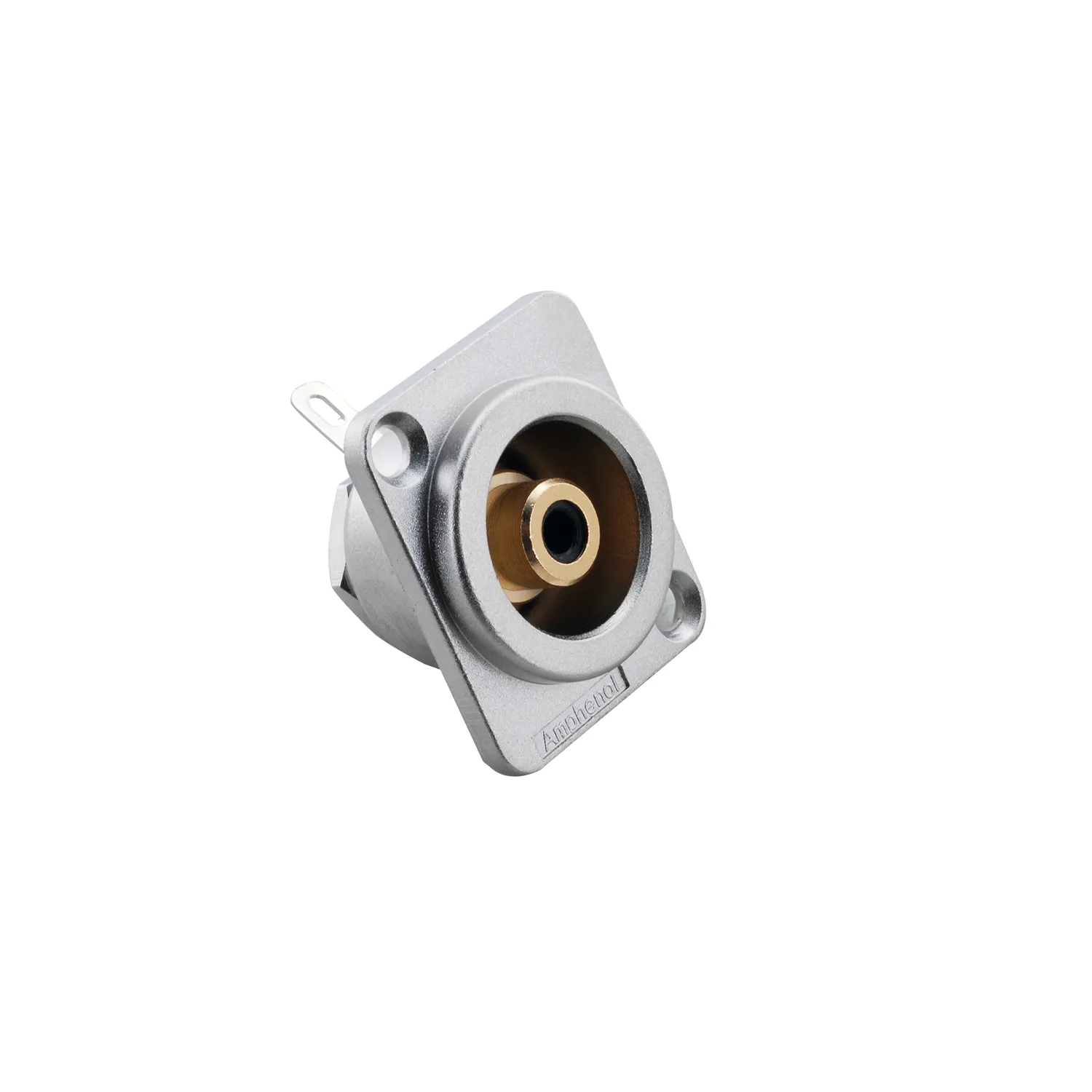

Stock Code: ACJD-BLK
| General Specifications | |
|---|---|
| Number of Contacts | 2 |
| Termination | Solder |
| Max. Wire Gauge - Stranded Wire | AWG 14 - 2.5mm² |
| Flammability Rating of Insulating Plastics | UL94V-0 |
| Solderability, Complies with | IEC 68-2-20 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Specifications | |
| Current Carrying Capacity | 10A (Depends on Mating Connector) |
| Typical Contact Resistance | ≤10mΩ (Depends on Mating Connector) |
| Insulation Resistance (Initial) After Damp Heat Test |
>2GΩ ≥ 10³ Meg Ω |
| Dielectric Strength | 1500 V DC |
| Climatic Specifications | |
| Protection Class | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Mechanical Specifications | |
| Insertion and Withdrawal Force | ≥10N - ≤30N (Depends on Mating Connector) |
| Cable Outer Diameter | 3 mm - 7 mm (0.118" - 0.275") |
| Mechanical Operations | 500 mating cycles |
| Weight - Cable Connection - Panel mount |
18g (0.039lb) 30g (0.066lb) |
| Materials | |
| Connector Shell Material (Plugs) | Die Cast Zinc Alloy EZDA No.3 |
| Connector Shell Plating | Satin Nickel or Coloured Polyester |
| Insulators | PA66 |
| Cable Bushing | Thermoplastic Polyurethane |
| Contacts | Brass Alloy |
| Plating | Gold Flash |
