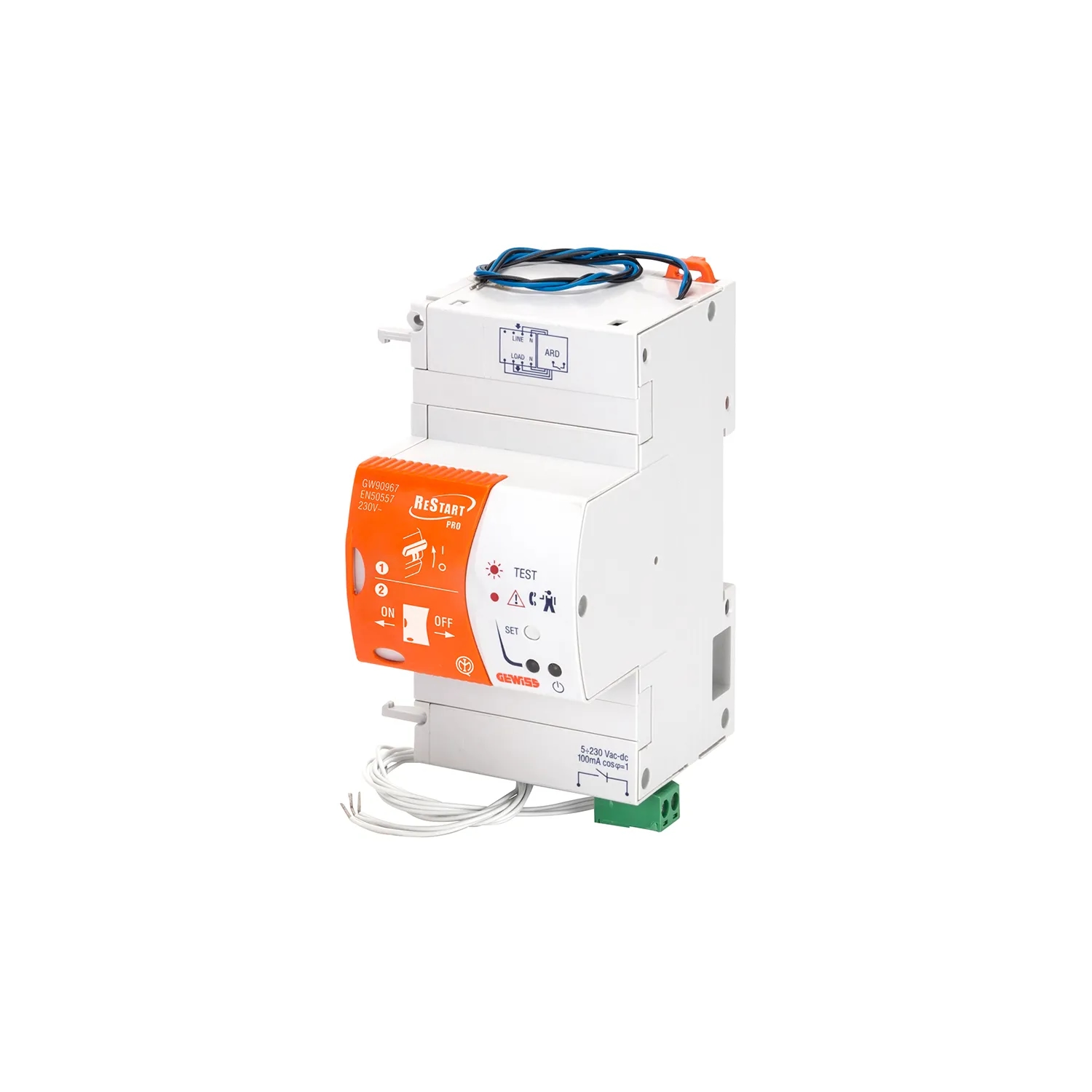

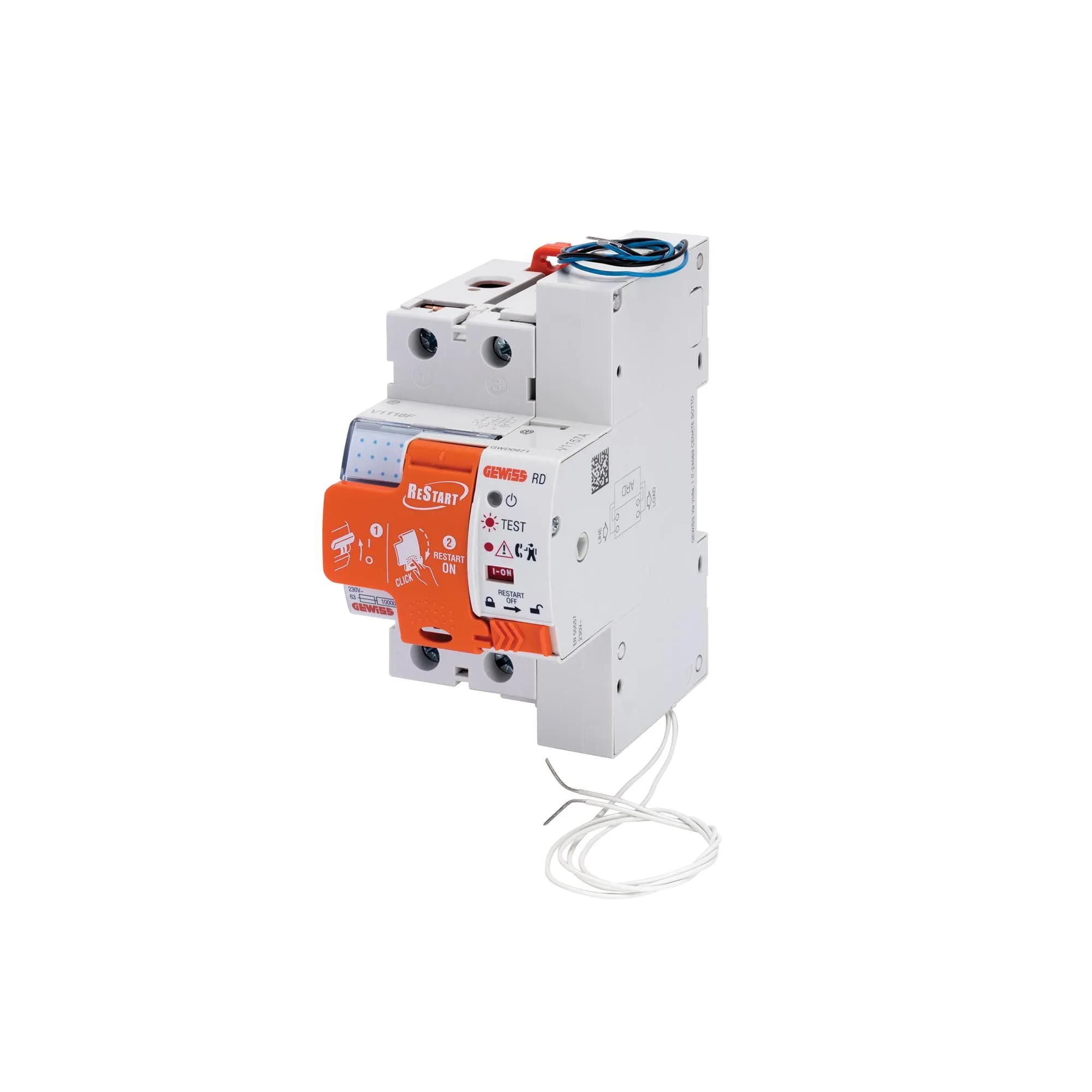

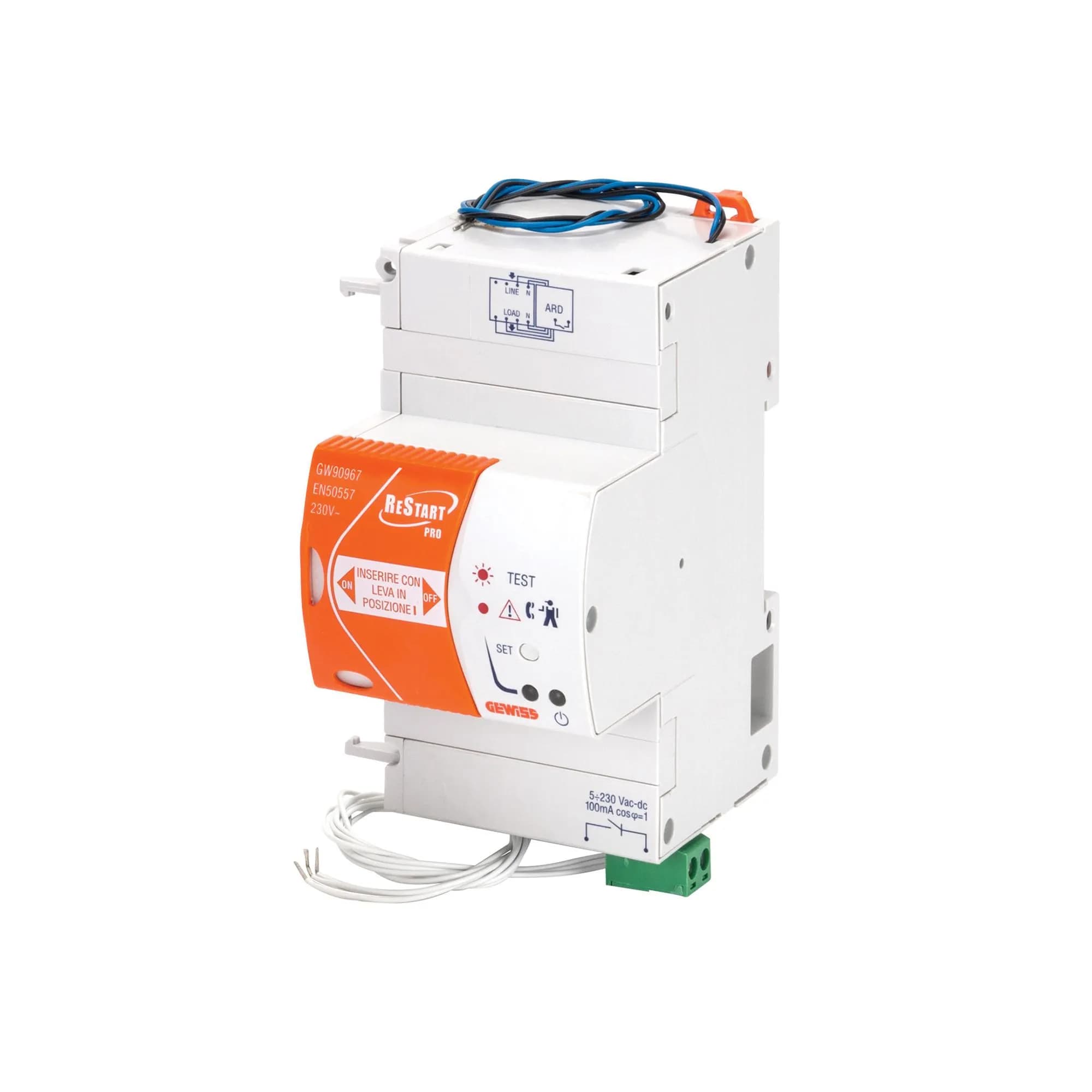

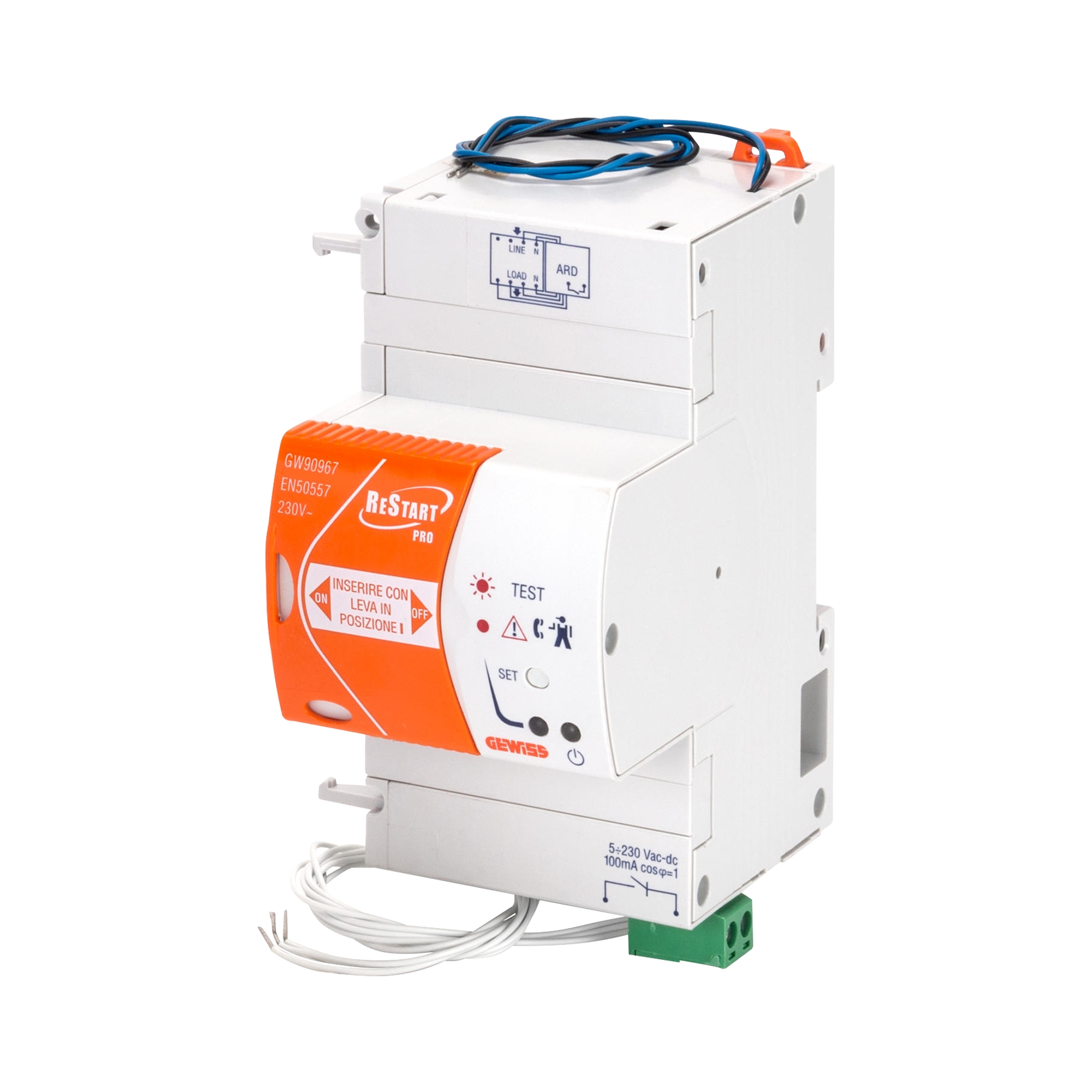

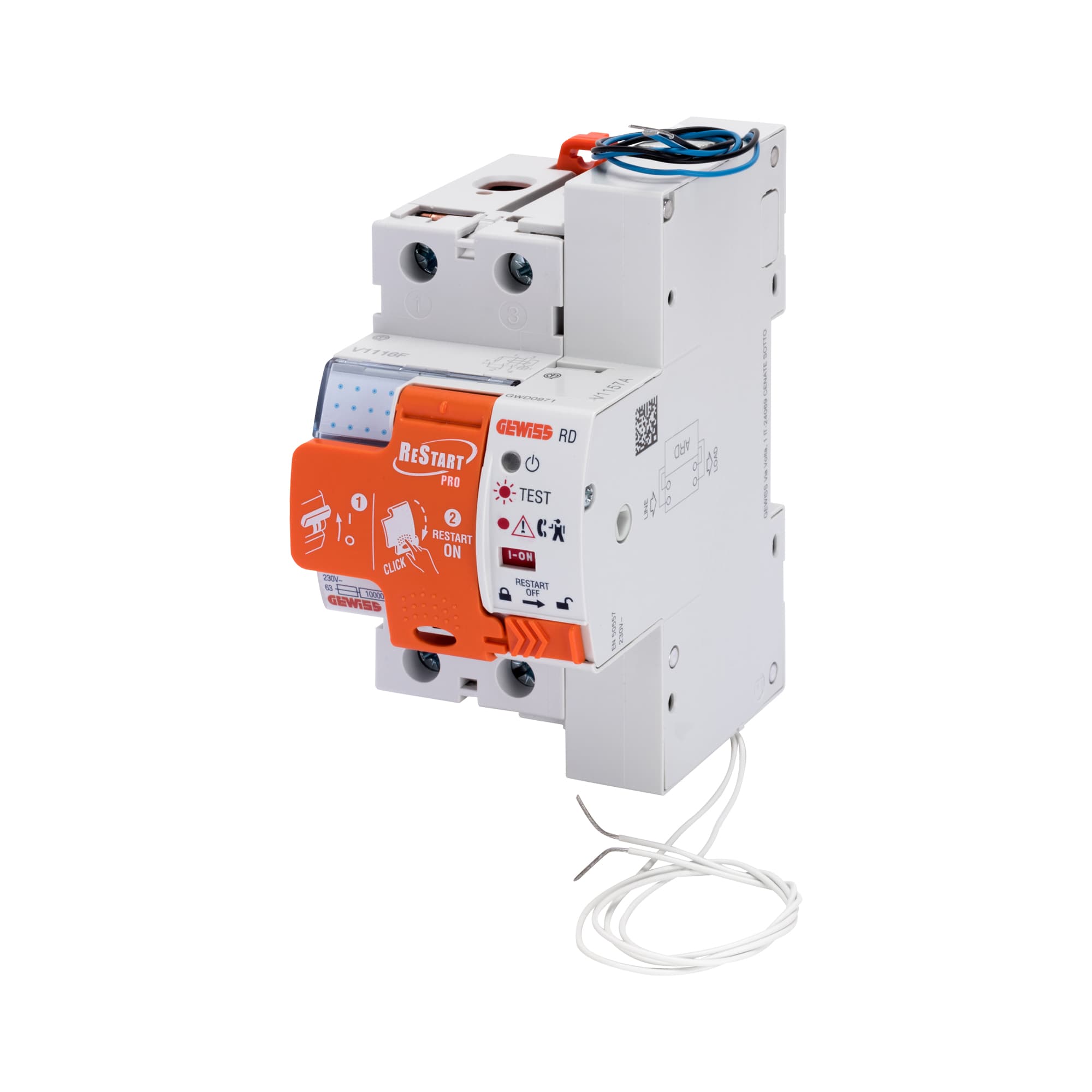

Stock Code: GW90967
| Electrical Characteristics | |
|---|---|
| Standards | IEC EN 63024, IEC EN 61008-1 |
| Distribution System | TT - TN-S |
| Rated Operating Voltage (Ue) (V) | 230 AC (1) |
| Minimum Operating Voltage (min Ue) (V) | 85% Ue |
| Maximum Operating Voltage (max Ue) (V) | 110% Ue |
| Rated Insulation Voltage (Ui) (V) | 500 |
| Dielectric Withstand Test Voltage between Pole and Earth (V) | 2500 AC for 1 minute |
| Rated Impulse Withstand Voltage (Uimp) (kV) | 4 |
| Overvoltage Category | III |
| Rated Frequency (Hz) | 50 |
| Residual Making and Breaking Capacity (IΔm) (A) | 630 |
| Rated Conditional Residual Short-Circuit Current (IΔc) (A) | Type A[IR] and A[S] 10000 for In=25-40A (gL 63A) 10000 for In=63A (gL 80A) Type B 10000 for In=25-40-63A (gL 63A) |
| Number of Poles | 2 |
| Associated Residual Current Circuit Breaker Type (A) | A[IR], A[S], B |
| Rated Residual Operating Current (IΔn) (mA) | 30 - 300 |
| Rated Non-Operating Resistance Between Live Parts and Earth (Rdo) (kΩ) | 8 (30mA) - 2.5 (300mA) |
| Rated Operating Resistance Between Live Parts and Earth (Rd) (kΩ) | 16 (30mA) - 5 (300mA) |
| Power Loss at Input (W) | 2.2 (25A) - 5.4 (40A) - 6.2 (63A) |
| Power Drawn at Idle (VA) | 4 (cosφ=0.2) |
| Power Drawn during Automatic Reclosing (VA) | 41 (cosφ=0.5) |
| Power Supply | From Top (Upstream) |
| Mechanical Characteristics | |
| Width in DIN Modules | Type A[IR]: 5 Type B: 7 |
| Reclosing Time (s) | 10 |
| Automatic Test Cycle Time (s) | 7 |
| Maximum Operating Frequency (oper./h) | 30 |
| Maximum Mechanical Endurance (Total Operations) | 4000 |
| Maximum Number of Consecutive Automatic Reclosing Operations (2) | 3 |
| Counter Reset Time No. of Consecutive Automatic Reclosing Operations (s) | 60 |
| Circuit Breaker Terminals Cross Section (mm2) | Flexible cable: ≤ 1x35 - ≤ 2x16 - ≤ 1x16+2x10 Rigid cable: ≤ 1x35 - ≤ 2x16 - ≤ 1x16+2x10 |
| Rated Tightening Torque (Nm) | 2 |
| Protection Degree | IP20 (terminals) - IP40 (front) |
| Pollution Degree | 2 |
| Operating Temperature | -25 to +60 |
| Storage Temperature | -40 to +70 |
| Tropicalisation | 55°C - RH 95% |
| Auxiliary Contact Characteristics | |
| Contact Type | Photomos (potential-free contact) |
| Operating Voltage (V) | 5÷230 AC/DC |
| Operating Current (mA) | 0.6 (min.) - 100 cosφ=1 (max.) |
| Operating Frequency (Hz) | 50 |
| Utilization Category | AC12 |
| Operating Mode | NO / NC / NC + pulse(4) |
| Terminal Section (mm2) | ≤ 2.5 |
| Rated Tightening Torque (Nm) | 0.4 |
| Automatic Test Function | |
| Periodic and Automatic RCCB Test | • |
| Luminous Signaling for Ongoing Automatic Test Cycle | • |
| Luminous Signaling for Any Device Anomaly | • |
| Restart Function | |
| Automatic Reclosing for Nuisance Tripping | • |
| Earth Leakage Control | • |
| Continuous System Control | • |
| Interruption of Reclosing Operation in Case of a Fault | • |
| Signaling of Ongoing Reclosing Operation | • |
| Luminous Fault Signaling | • |
| Activation / Exclusion of the Restart Function | • |
| Auxiliary Contact for Remote Operating Status Access | • |
| Compatible with WiFi/ModBus Interface Module | • |
| Internal Electrical Protection | PTC |
