Carries high-frequency signals over a thin coaxial line.

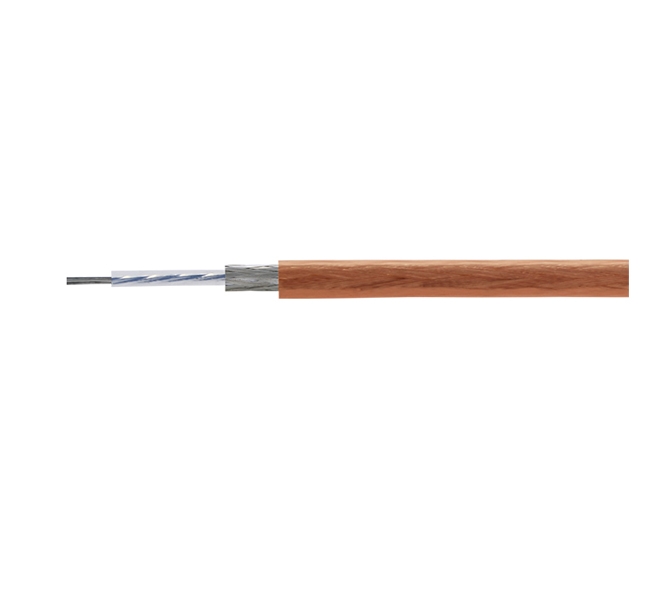

The RG316U coaxial cable operates at 50 Ω impedance and keeps a thin cross-section with a 2.53 mm outer jacket diameter. It uses silver-plated copper for the inner conductor and tinned copper for the outer conductor.
50 Ω line impedanceThe cable carries signals on links that run at 50 Ω impedance.
Silver-plated and tinned copperSilver-plated copper forms the inner conductor and tinned copper the outer conductor.
Thin outer jacketA 2.53 mm outer jacket diameter lets the cable bend through tight runs.
Attenuation by frequencyAttenuation measures 1.05 dB/m at 100 MHz, 2.10 dB/m at 400 MHz and 3.80 dB/m at 1000 MHz.
Defined capacitanceThe cable holds 95.8 pF/m along its length.
