Stock Code: GWR5213
| GWR5213 | |
|---|---|

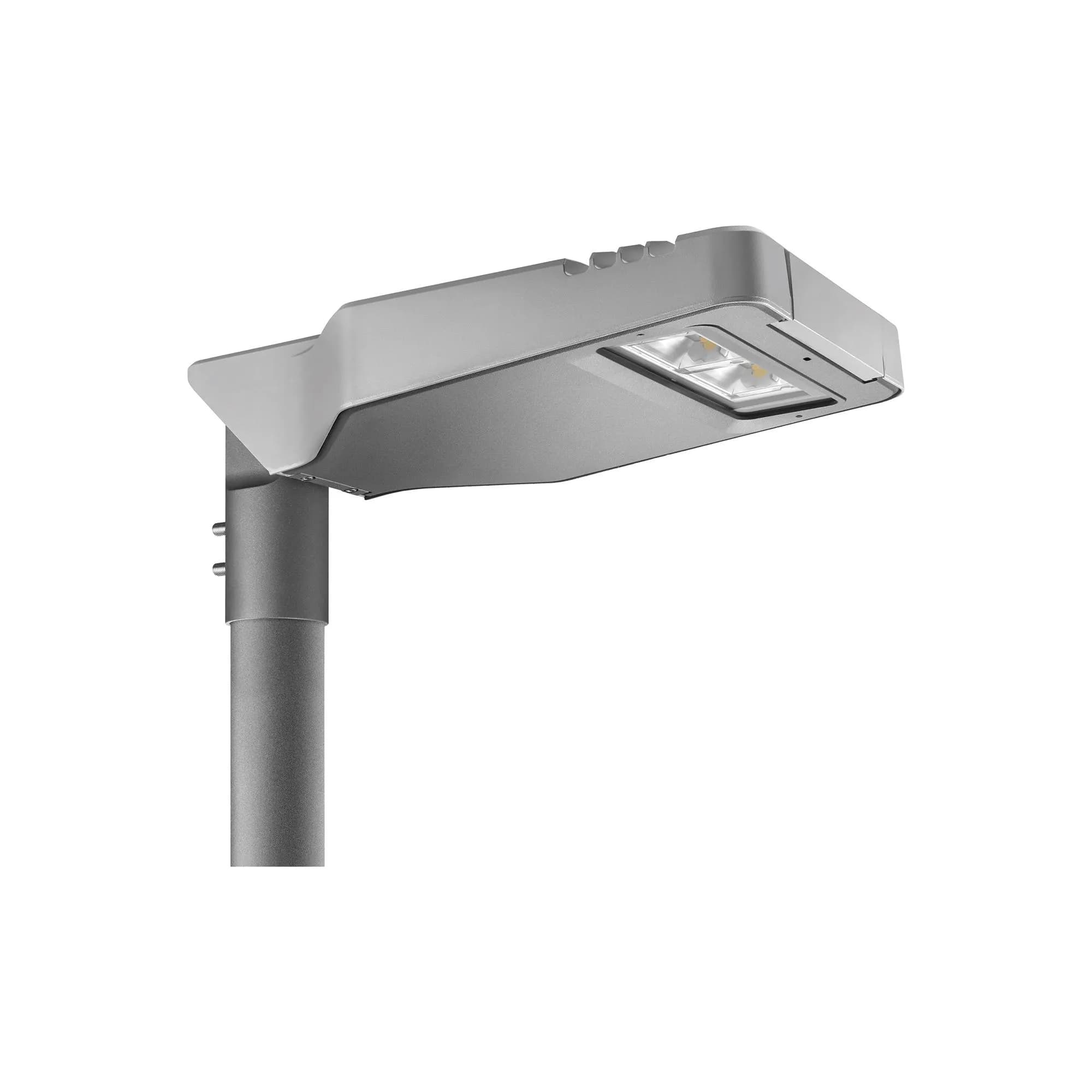

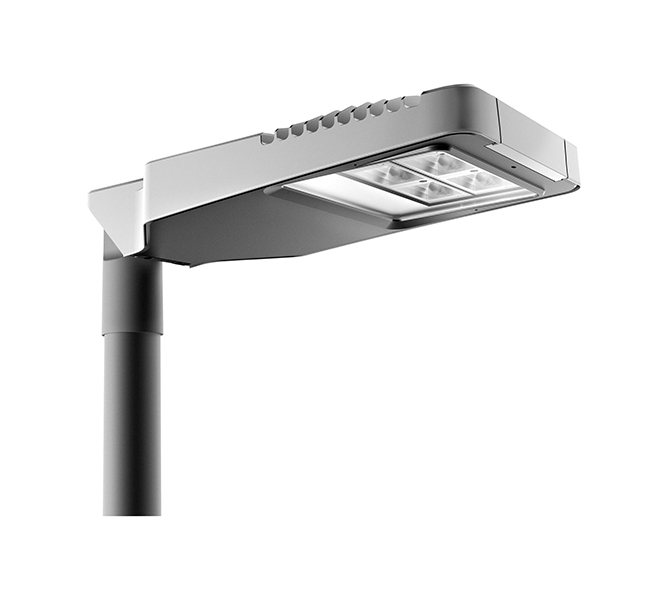

| Luminaire | LED Road Equipment |
| Unique Digital Code (Datamatrix) | Currently not present |
| Light Source Type | LED - Non-replaceable |
| LED Lifetime | L90B10(Tq25°C)>115.000h; L90B10(Tq40°C)=115.000h |
| Warranty | 5 years |
| Operating Temperature | -25+40°C |
| Body | Die-cast Aluminium |
| Optic | Metallized polycarbonate reflector |
| Locking Hook | Integrated front handle |
| Colour | Powder coating |
| Insulation Class | II |
| Impact Resistance | IK08 |
| Unified Glare Rating | G*3 - ULOR = 0 |
| Efficiency (lm/W) | 113 |
| Color Rendering Index | CRI>70 |
| Photobiological Risk Class | RG0 |
| Nominal Frequency (Hz) | 50/60 |
| Driver | Included |
| Control System | Stand Alone |
| Mounting and Installation | Pole Head - Outreach |
| Wiring | Isolating Switch |
| Light Source Replaceability | Not available |
| Driver Box | Built-in |
| Context | Street and parking lighting |
| Installation Area | Outdoor |
| Colour | Graphite Grey |
| System Power | 113W @1A |
| Weight (kg) | 8 |
| Diffuser Type | 4mm thick flat tempered glass |
| Gasket | Anti aging silicone |
| External Screw | Stainless Steel |
| IP Rating | IP66 |
| Optic | Wide |
| Lumen Output (lm) | 12800 |
| Colour Temperature | 4000K |
| Standard Deviation Colour Matching | SDCM 5 |
| Standard | EN 60598-2-3, EN 60598-1 IEC/TR 62778 |
| Supply Voltage | 220 - 240V |
| Driver Failure Rate | F10=100.000h Tq25°C/75.000h Tq40°C |
| Overvoltage Protection | DM 10KV / CM 10KV |
| Tilt | -20° ÷ +10° side accessory - -10° ÷ +20° pole head |
| For | Pole Head - Outreach |
| Controlgear Replaceability | Not available |
| Max. surface exposed to wind | 0.19 m² |
