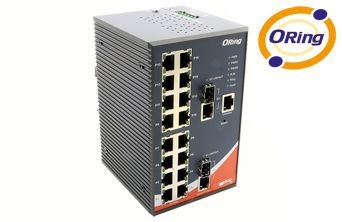

Gathers 18 ports in one body and links the field network to the backbone.
A manageable switch for the access layer of industrial networks. 16 10/100TX RJ-45 ports gather field devices, while 2 100/1000 combo ports form a copper or fiber uplink. O-Ring redundancy restores a broken link in 10 ms.
Port layoutCarries 16 10/100TX RJ-45 ports alongside 2 100/1000 combo ports; the combo ports run as SFP or RJ-45.
SwitchingThe store-and-forward architecture runs on a 7.2 Gbps back-plane; the RJ-45 ports tell straight and crossover cable apart through auto MDI/MDI-X.
Ring redundancyO-Ring restores a link in 10 ms on a ring of 250 connections; Open-Ring and O-RSTP fit other vendors' ring designs, and the switch also runs STP, RSTP and MSTP.
ManagementIt configures over a web interface, Telnet and console, and the Open-Vision utility gathers devices on one screen.
Warning and monitoringSyslog, email, SNMP trap and relay output report events; RMON monitors traffic and the port lock keeps unauthorized MAC addresses out.
MountingThe IP-30 housing mounts on DIN-Rail or a panel, and MODBUS TCP support carries PLC and SCADA communication.
